19mm 1no Resetable Round IP65 Ik08 Push Button Switch

19mm 1no Resetable Round IP65 Ik08 Push Button Switch
Price: US $ 0.1-1.61/Piece
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: QN19-A2
Material: Nickel Plated Brass/Stainless Steel
Operation Type: Momentary/Latching
Plated Color: Red Blue Green Black White Yellow Orange
Manufactury: Yes
Custom Made: Yes
Type: Normal Open
Usage: Check Button
Kind: Double-pole on-off Switch
Contact Type: 1no 1nc/2no 2nc
Brand: Qian Nian
Certification: CQC TUV Reach RoHS

Product Description

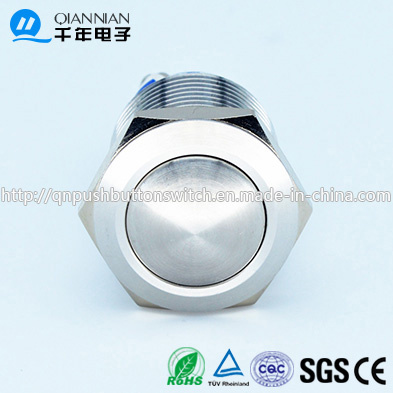

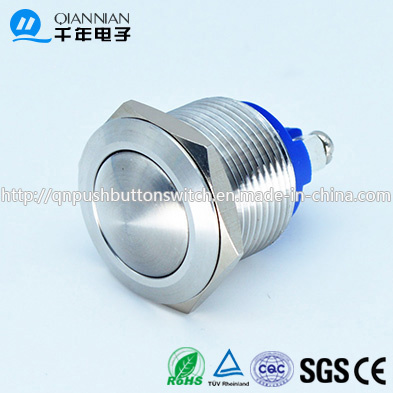

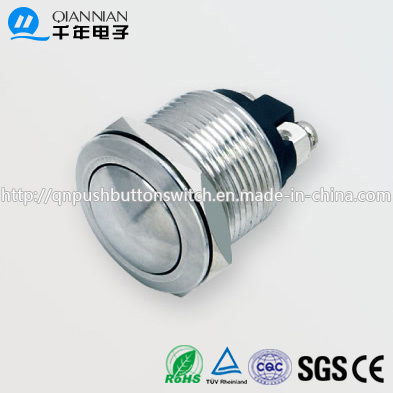

       title:QN19-A2 19mm   Momentary Domed Head Screw Pin terminal Waterproof metal push button switch

       They are widely used in household appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.

Product brandQIANNIAN
Product nameButton switch
Product modelQN19-A2
Product informationMounting hole19mm
Operation typesMomentary

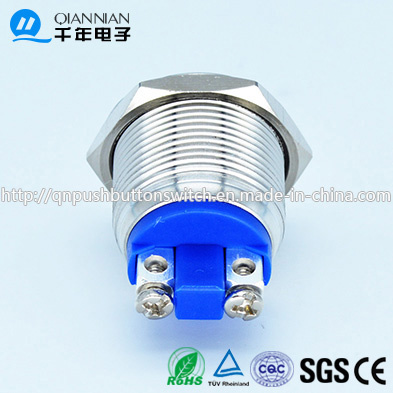

Head shapeDomed Head, Screw Pin terminal,
Enclosure materialNickel plated brass/Stainless Steel
Degree of protectionIP65 IK08
Contact parametersSwitch rating3A/250VAC
Contact configuration1NO
ContactSilver alloy,Screw Pin terminal
Other parametersMechanical life50,000cyles
Electrical life50,000cyles
Terminal TypeScrew Terminal
Contact resistance≤50mΩ
Insylation resistance≥1000mΩ
Dielectric Strength2000VAC
Operation Temperature-20ºC~+55ºC
Panel thickness1~10mm
nut torque5~14Nm
Opration pressureAbout4N
Operation strokeAbout1.8mm
BasePA66
Packages50PCS/BOX
Websitehttp://qnpushbuttonswitch.en.made-in-china.com
Official websitehttp://www.qnele.com
Product size

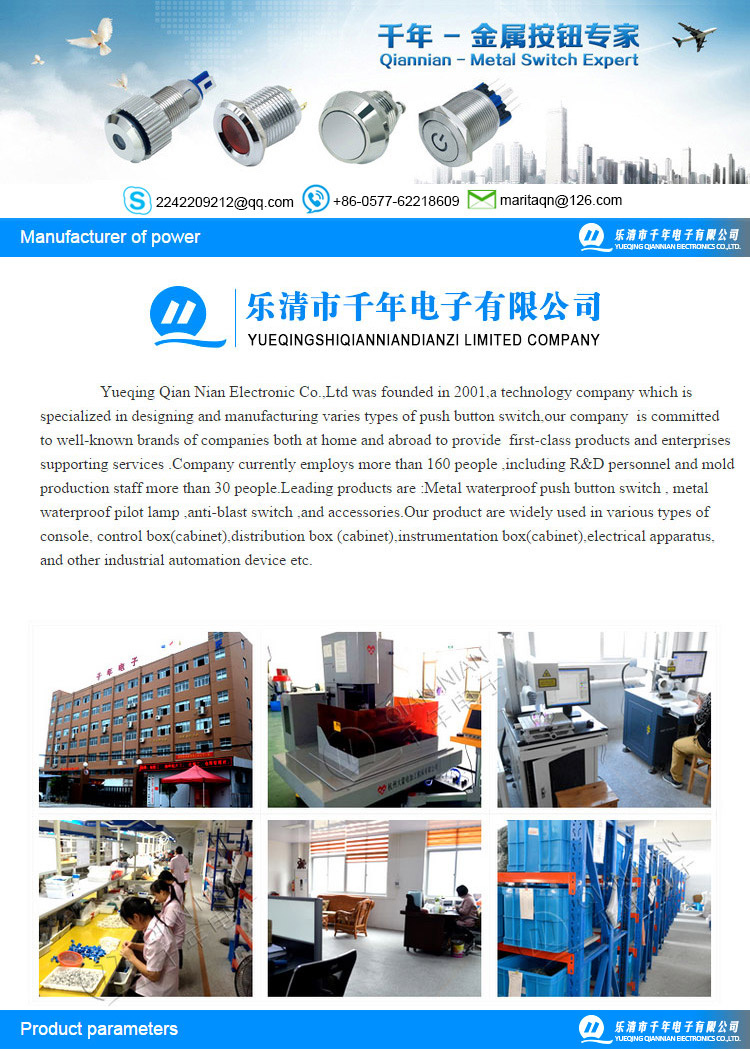

Yueqing Qian Nian Electronic Co., Ltd. Was founded in 2001, a technology company which is specialized in designing and manufacturing varies types of push button switch, our company is committed to well-know brands of companies both at home and abroad to provide first-class products and enterprises supporting services. Company currently employs more than 160 people, including R&D personnel and mold production staff more than 30people. Leading products are: Metal waterproof push button switch, metal waterproof pilot lamp, anti-blast switch, accessories, piezo switch, and proximity switch. Our products are widely used in various types of console, Control box (cabinet), distribution box(cabinet), instrumentation box(cabinet), electrical apparatus, and other industrial automation device ect.

Quality is the lifeline, Company's management and production in accordance with Quality System Certification and Environment Management System Certification. Products have passed CE certification, CQC certification, TUV certification, CCC certification. Our company has domestic first -class lathes machining centers, and the products are unique. At home and abroad to enjoy a relatively high market visibility, reputation. The comaony has the right of import and export.

Our company adhere to the people-oriented modernized business administration, and pay attention to provide employees open working atmosphere and opportunities of realizing their ideals and their values, and adhere to " quality, brand, grade" expectations to help clients realize their dreams in the professional sphere.

The face of WTO opportunities and challenges brought about, our company has always adhere to" keep making process and never satisfied" entrepreneurial spirit, with technological advantage, we are striving to became one of the nation's largest, most productive companies. We sincerely welcome cooperation from all walks of life to come hand in hand to create a beautiful tomorrow!
