| Prod Model: |
HBS1-AGQ-11X/2 |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
19mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP67, Ik09 |
| Crust Material: |
Stainless Steel |
| Switch Rating: |
5A/250V AC |
| The Front Shape: |
Flat Round |
| Operation Pressure: |
3.5n |
| Operation Stroke: |
About 3.1mm |
| Type: |
Composite |
| Usage: |
Reset Button |
| Kind: |
Double-pole on-off Switch |
| Brand: |
Hban |
| Certification: |
TUV RoHS |
Product Description

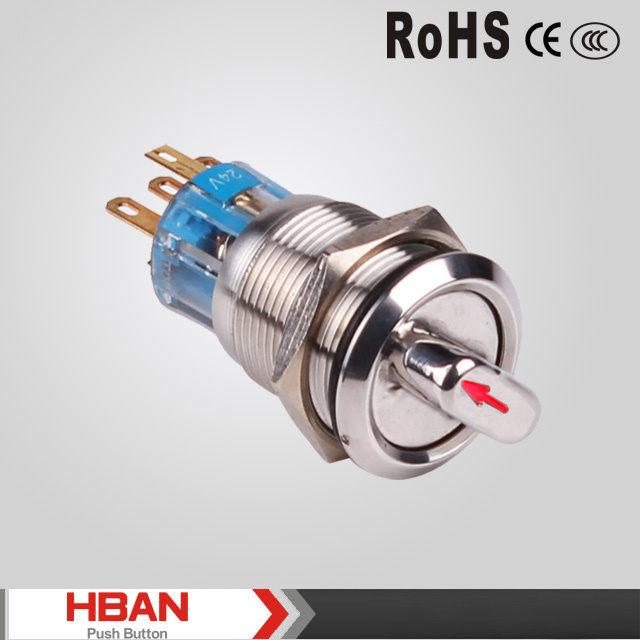

Premeters:TUV UL ROHS HBAN 19MM Arrow indicate stainless steel tuv ul selector switchPart Number: HBS1-AGQ-11x/21, 22x/21, 22/31, HBS1-AGQ-11xD/21, 22xD/21 22XD/31
Mounting hole size:dia.19mm
Switch Rating:5A/250VAC
Operation Type:IP40, (IP65 Can be made to order)
Switch Configuration:1NO1NC/2NO2NC
Contact Material: Stainless Steel , Nickel-plated Brass
| Specifications | HBS1-AGQ-11X/21 | HBS1-AGQ-22X/21 | HBS1-AGQ-22X/31 | HBS1-AGQ-11XD/21 | HBS1-AGQ-22XD/21 | HBS1-AGQ-22XD/31 |
| The Front Shape | SELECTOR SWITCH |
| Switch Configuration | 1NO1NC/2NO2NC |
| Switch Rating | 5A/250VAC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100 MΩ |
| Contact between lamp bead terminal | 1500V AC |
| Between same calss terminals | 1000V AC |
| Between different electrode terminal | 2000V AC |
| Operating Temperature | -25°C ~ +55°C |
| Mechanical Life | 200,000 times |
| Electrical Life | >30,000 times |
| Protection Degree | IP40 |
| Lamp Type | AC LED Lamp (Standard) |
| LED Rated Voltage | AC/DC 6V,AC/DC12V,AC/DC/24V,AC/DC110V,AC/DC220V |
| LED Color | Red,Green,Yellow,Orange,Blue,Whie,Black,Hyaline |
| LED Lifetime | About 40,000 hours |
Packaging Details:
We pack 40 pieces diameter 19mm metal push buton switches into 1 foam box to protect them. We supply 40 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 16 boxes / 20 boxes into a 5 layers corrugated export carton.
Packing Details:
We pack 40 pieces diameter 19 mm push button switch into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP40 IP65 IP67
Would you need LED lamp and push button switches? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed
5.Switch size: 10,12,16,19,22,25,28,30mm.
6.Switch operation type: momentary or latching
7.switch material,zn-al alloy,nickel-plated,alluminum,plastic
Company Information
Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates. Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
FAQ
1.Are you maufactuer?
Yes, we are manufactuer
2.What's the difference between SHANGHAI HONGBO AND DAHE company?
We have an shop in Shanghai and registered SHANGHAI HONGBO, but the produce department is in DAHE company, which is located in the electric capital of Liushi, Wenzhou
3.How about the payment?
West Union, Paypal, Bank,T/T
4.Dlivery time
Within 15 days

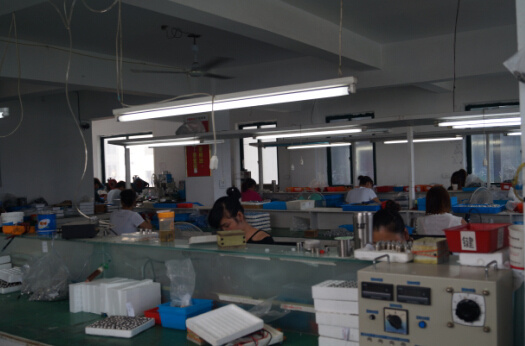

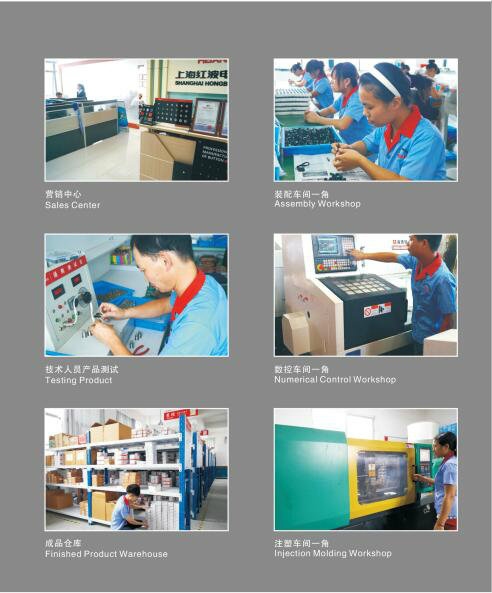

Company information

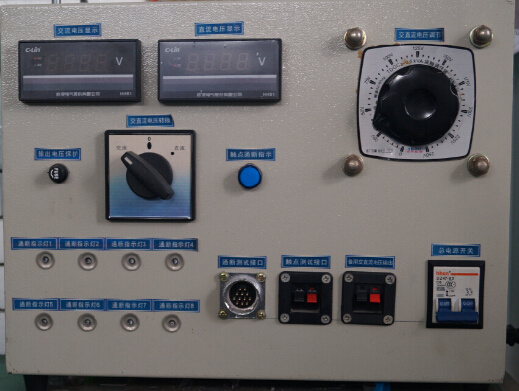

Testing product
packing information
Product application
