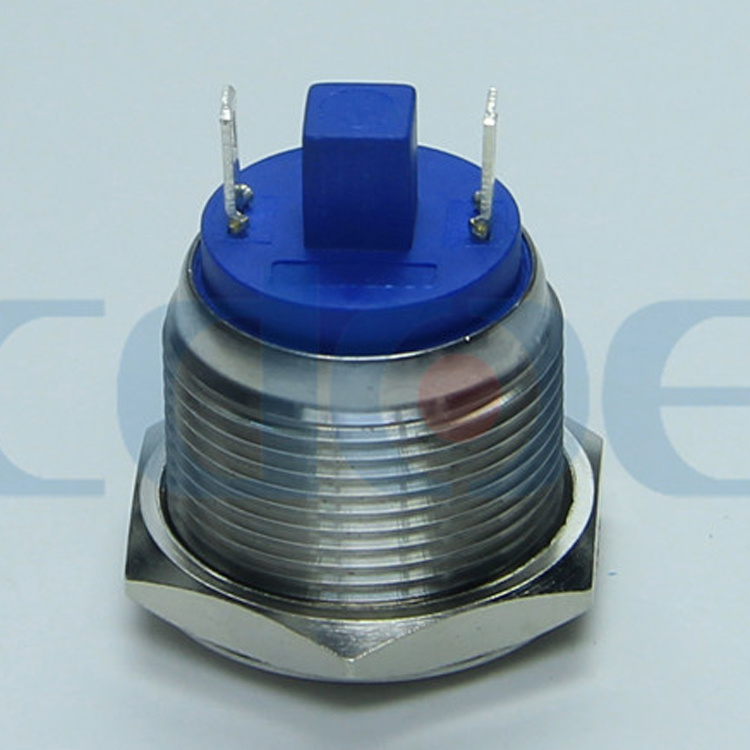

19mm Ball 23V Metal Push Button Switch

Name: 19mm Ball 23V Metal Push Button Switch
Brand: all-electronics-online.com
SKU: 777564445
Availability: InStock
Rating: 4.9 (125 reviews)

Price:	US $ 0.9-1.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	40/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GQ19B-10/J/N, 10/N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item No.:	Hbgq19b-10/J/N,10/N
Switch Rating:	2A/36VDC
The Front Shape:	Ball
The Crust Meterial:	Nickel-Plated Brass
Protection Degree:	IP65,Ik08
Manufacturer:	Hban
Original:	Zhejiang,China
LED Color:	Red, Green, Yellow, Orange, White, Blue
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch
Contact Type:	Type X Contact
Brand:	Hban
Certification:	ISO9001,CE,RoHS,CCC

Product Description

HBAN 12mm Ball push button switch with Dot LED light

Item No.:
HBGQ19B-10/J/N(1NO,MOMENTARY,NICKEL-PLATED BRASS)
HBGQ19B-10/N(1NO,MOMENTARY,NICKEL-PLATED BRASS)
Mounting Hole Size: Φ 19mm
Switch Rating: 2A/36VDC
The Front Shape: Ball
The Crust Material: NICKEL-PLATED BRASS
Protection Degree: IP65, IK08

Packging Details:

We pack 40 pieces diameter 16mm metal push button switches into 1 foam box to protect them. We supply 40 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10 boxes / 20 boxes into
A 5 layers corrugated export carton.

ITEM,NO	HBGQ19b-10/j/n	HBGG19B-10/N
SPECIFICATION	1NO,MOMENTARY,NICKEL-PLATED BRASS	1NO,MOMENTARY,NICKEL-PLATED BRASS
FRONT SHAPE	BALL
CRUST MATERIAL	NICKEL-PLATED BRASS
SWITCH RATING	2A/36VDC
PROTECTION DEGREE	IP65,IK08
