| Prod Model: |
HBGQ19F-10WE/P/A |
| Item No.: |
Hbgq19f-10we/P/a |
| Switch Rating: |
2A/12VDC |
| The Front Shape: |
Flat |
| The Crust Material: |
Aluminum |
| Protection Degree: |
IP65, Ik08 |
| Size: |
19mm |
| Operation Type: |
Momentary |
| Contact Configuration: |
1no |
| Terminal Type: |
Pin Terminal |
| Contact Material: |
Silver Alloy |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Contact Type: |
Type X Contact |
| Brand: |
Hban |
| Certification: |
RoHS |
Product Description
19mm light micro travel Push Button SwitchMounting Hole Size: Φ 19mm
Switch Rating: 2A/12VDC
The Front Shape: Flat
The Crust Material: Aluminum/stainless steel
Protection Degree: IP65, IK08
PRODUCT SPECIFICATION: | ITEM, NO | HBGQ19F-10WE/P/S | HBGQ19F-10WE/Y/S | HBGQ19F-10WE/J/D | HBGQ-10WE/P/A |
| SPECIFICATION | 1NO, MOMENTARY, STAINLESS STEEL, TERMINAL BLOCK WITH CABLES | 1 NO, STAINLESS STEEL, CABLE CONNTOR | 1 NO, , STAINLESS STEEL, PIN TERMINAL | 1no, ALUMINUM, |
| FRONT SHAPE | FLAT |
| CRUST MATERIAL | ALUMINUM/stainless steel/nickel-plated brass |
| SWITCH RATING | 2A/12VDC |
| PROTECTION DEGREE | IP65, IK08 |
| TERMINAL TYPE | PIN TERMINAL(2X0.5mm) |
| OPERATIN TEMPRATURE | -20ºC+55ºC |
| DIELECTRIC STRENGTH | 2000VAC |
| MECANICAL LIFE | >1000000 |
| MECHANICAL | >200000 |
| PANNEL THICKNESS | 1-5mm |
| TORQUE | 5-14nNm |
| OPRATING STROKE | ABOUT 2.5mm |
| CONTACT ATERIAL | SILVER ALLOY |
| BUTTON MATERAL | PBT |
| CASE MATERIAL | Aluminum/stainless steel/ nickel-plated brass |
| BASE MATERIAL | PBT |

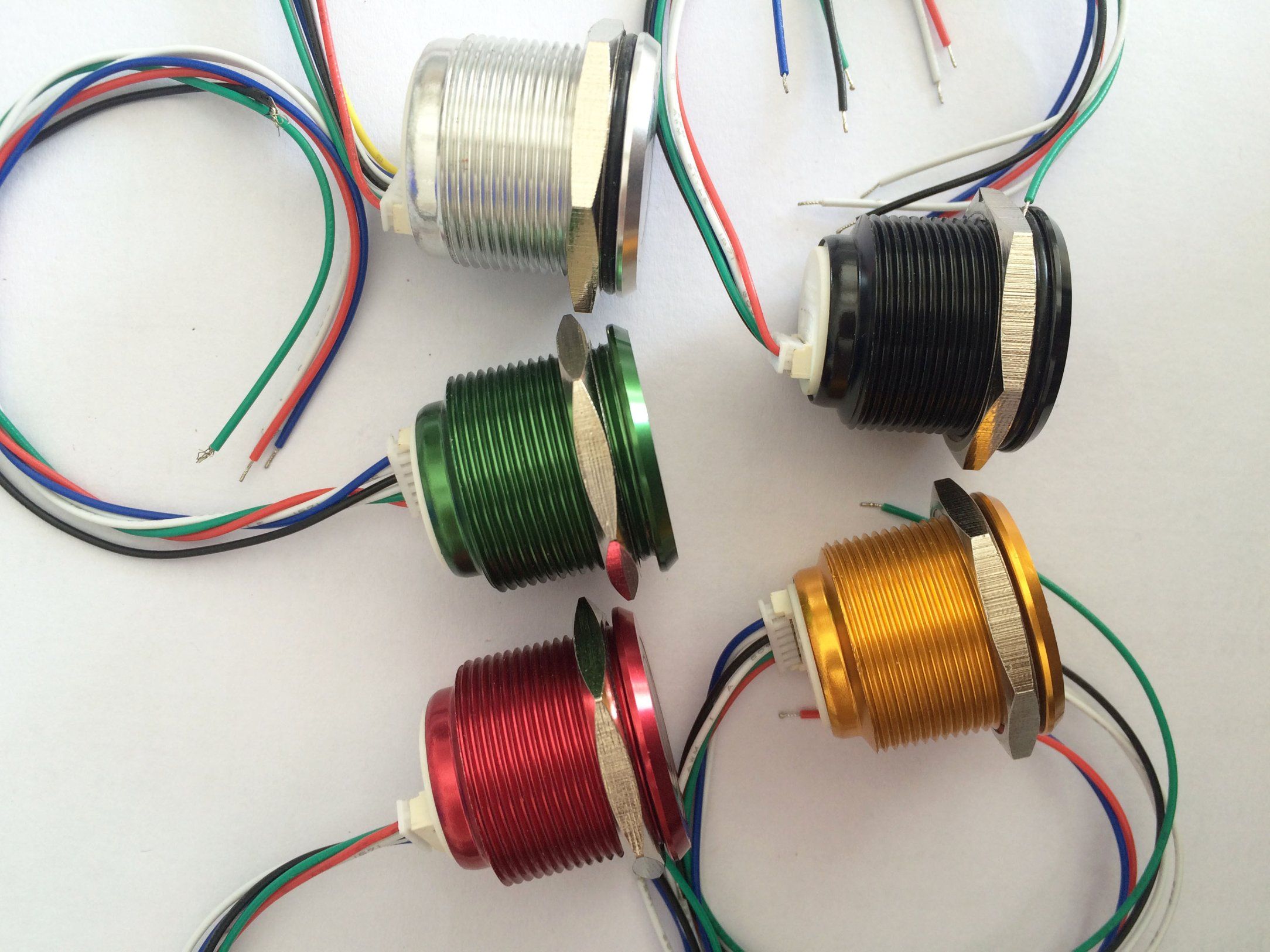

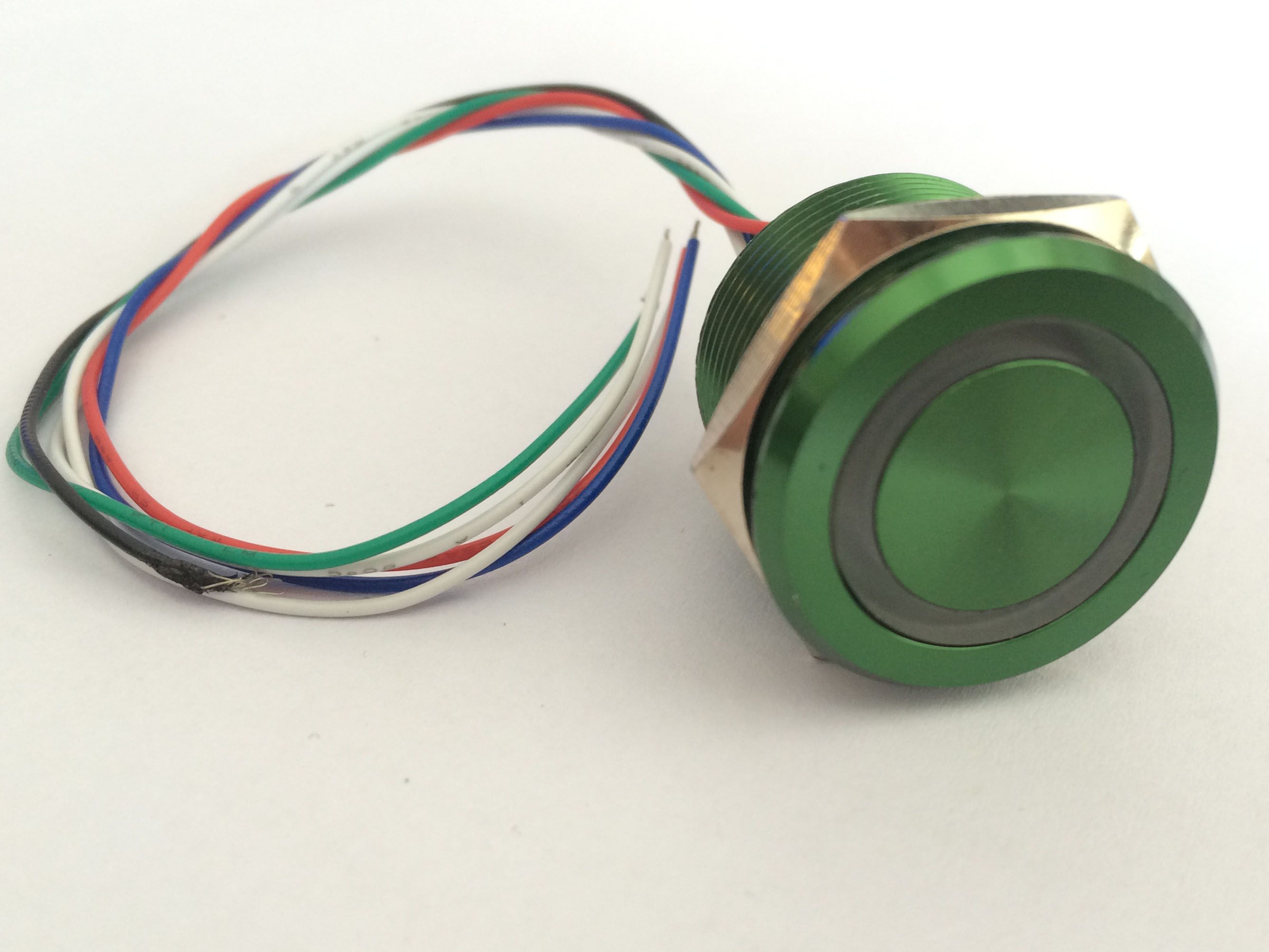

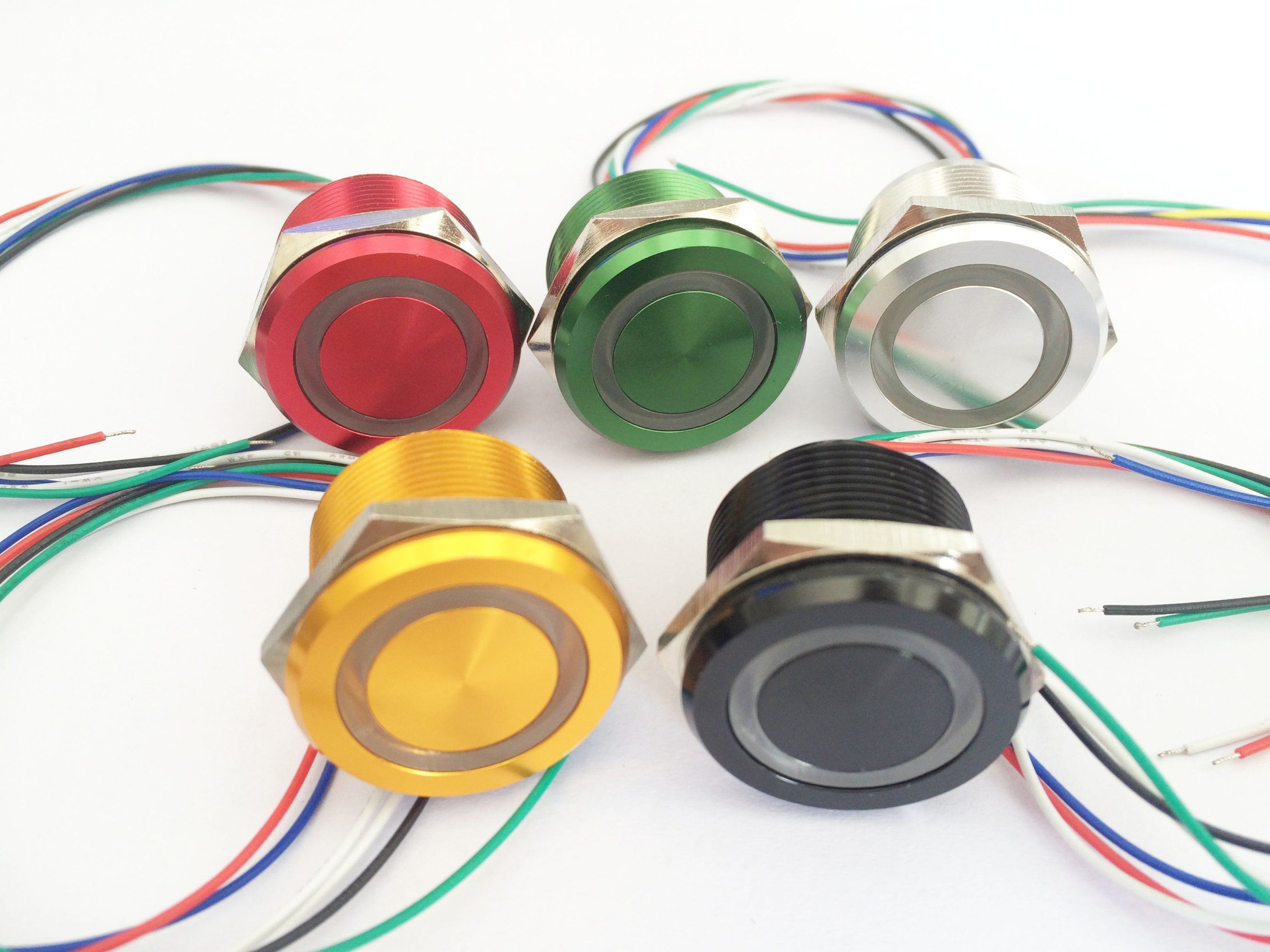

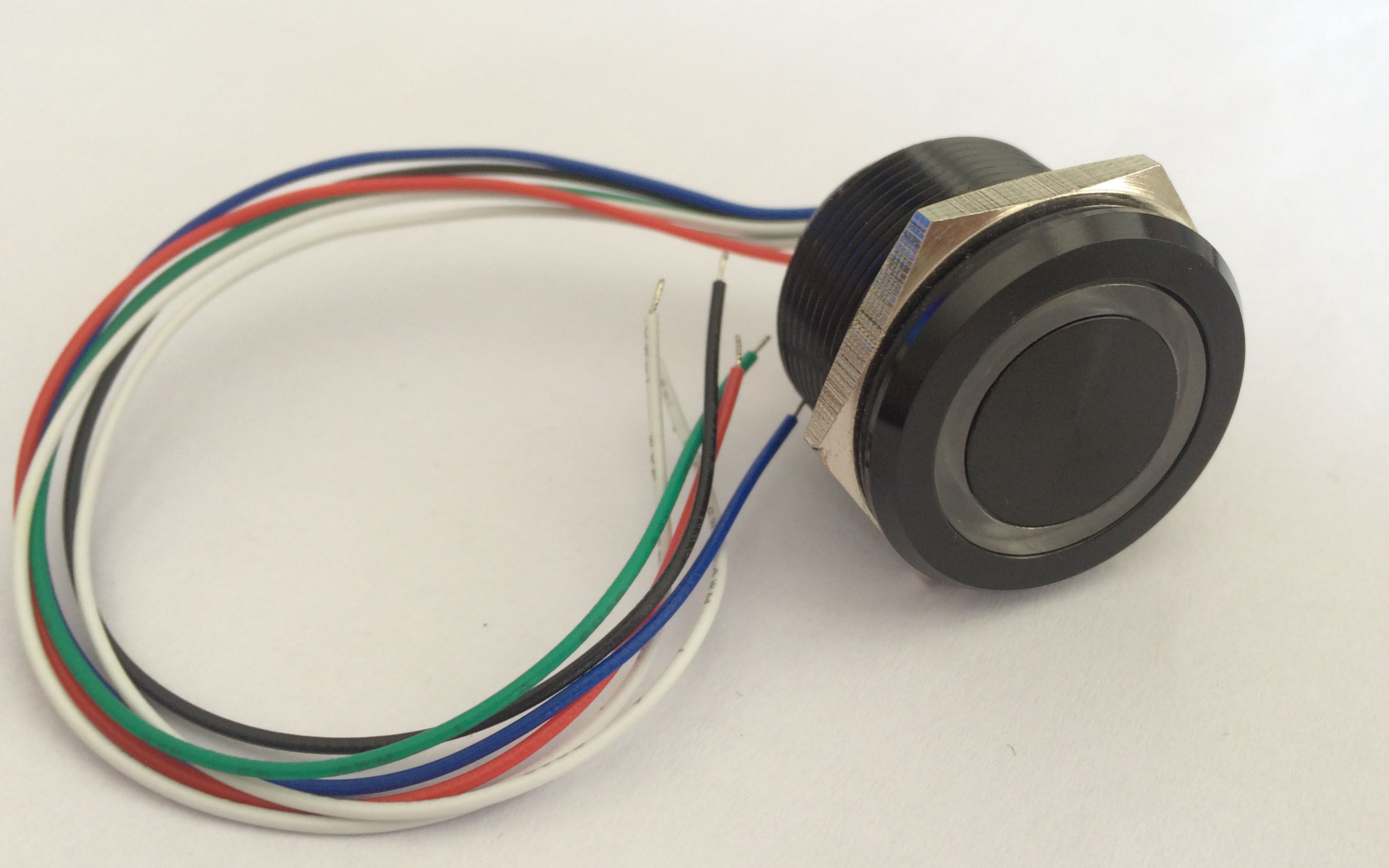

Product picture
Packging Details: We pack 40 pieces diameter 19mm metal push button switches into 1 foam box to protect them. We supply 40 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10 boxes / 20 boxes into
A 5 layers corrugated export carton.
