| Prod Model: |
HBS1-AGQ-Y |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
19mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP67, Ik09 |
| Crust Material: |
Stainless Steel |
| Switch Rating: |
5A/250V AC |
| The Front Shape: |
Flat Round |
| Operation Pressure: |
3.5n |
| Operation Stroke: |
About 3.1mm |
| Type: |
Composite |
| Usage: |
Reset Button |
| Kind: |
Double-pole on-off Switch |
| Brand: |
Hban |
| Certification: |
TUV RoHS |
Product Description
Premeters:HBS1-AGQ-11Y-21 19mm Metal push button switch
Item NO.: HBS1-AGQ-11Y-21
Mounting Hole Size:dia.19mm
Lamp Type:LED
Protection Degree:IP67,IK09
Lamp Color:Red / Green / Yellow / Orange / Blue / White
The Crust Material: Stainless Steel
CE ROHS CERTIFICATE
PUSH BUTTON SWITCH
Tel : 0086-577-62708000 Fax : 0086-577-62708007
Item NO. | HBS1-AGQ-11Y-21 HBS1-AGQ-22Y/21 HBS1-AGQ-22X/31 |
| Specification | Keswitch |
| Head Shape | Flat |
| Terminal Type | Pin Terminal |
| Dielectric Strength | 2000VAC |
| Operating Temperature | -20 degree ~ + 55 degree |
| Panel Thickness | 1~10 mm |
| Torque | 5~14Nm |
| Protection Degree | IP67,IK09 |
| Material | Shade | PC |
| Case | Stainless Steel |
| Base | PBT |
Packing Details:
We pack 40 pieces diameter 19 mm push button switch into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP40 IP65 IP67
Would you need LED lamp and push button switches? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed
5.Switch size: 10,12,16,19,22,25,28,30mm.
6.Switch operation type: momentary or latching
7.switch material,zn-al alloy,nickel-plated,alluminum,plastic
Company Information
Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates. Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
FAQ
1.Are you maufactuer?
Yes, we are manufactuer
2.What's the difference between SHANGHAI HONGBO AND DAHE company?
We have an shop in Shanghai and registered SHANGHAI HONGBO, but the produce department is in DAHE company, which is located in the electric capital of Liushi, Wenzhou
3.How about the payment?
West Union, Paypal, Bank,T/T
4.Dlivery time
within 15 days
Tel : 0086-577-62708000 Fax : 0086-577-62708007
mobile:+8615098072722
Within 15 days

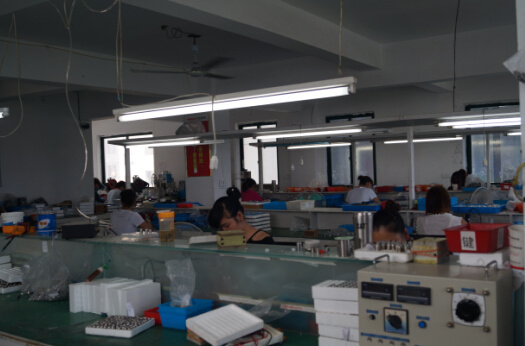

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.
After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.
At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
