| Prod Model: |
HBGQ19F-10WE/P/A |
| Item No.: |
Hbgq19f-10we/Y/a |
| Switch Rating: |
2A/36VDC |
| The Front Shape: |
Domed |
| The Crust Material: |
Zn-Al Alloy |
| Protection Degree: |
IP65,Ik08 |
| Size: |
19mm |
| Operation Type: |
Momentary |
| Contact Configuration: |
1no |
| Terminal Type: |
Screw Terminal |
| Contact Material: |
Silver Alloy |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Contact Type: |
Type X Contact |
| Brand: |
Hban |
| Certification: |
RoHS |
Product Description

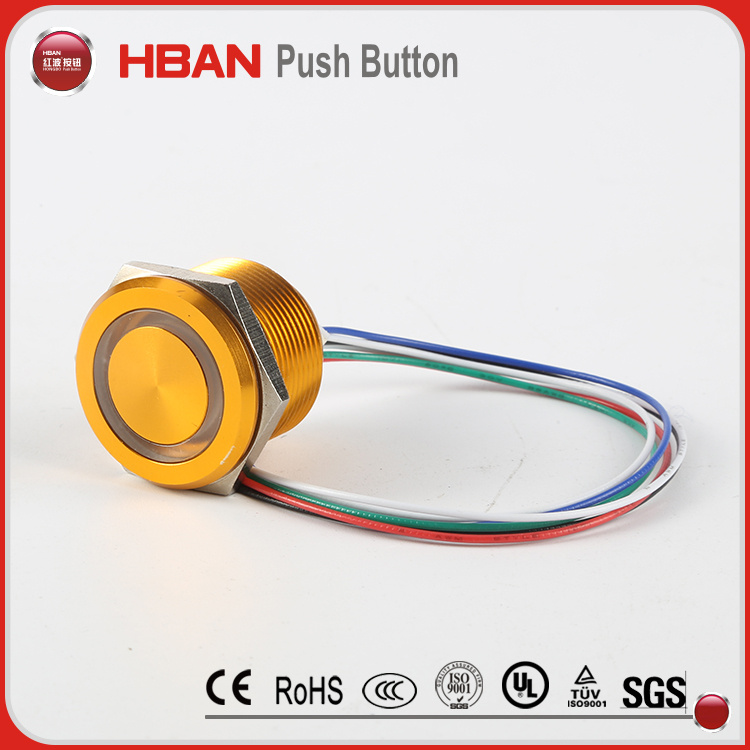

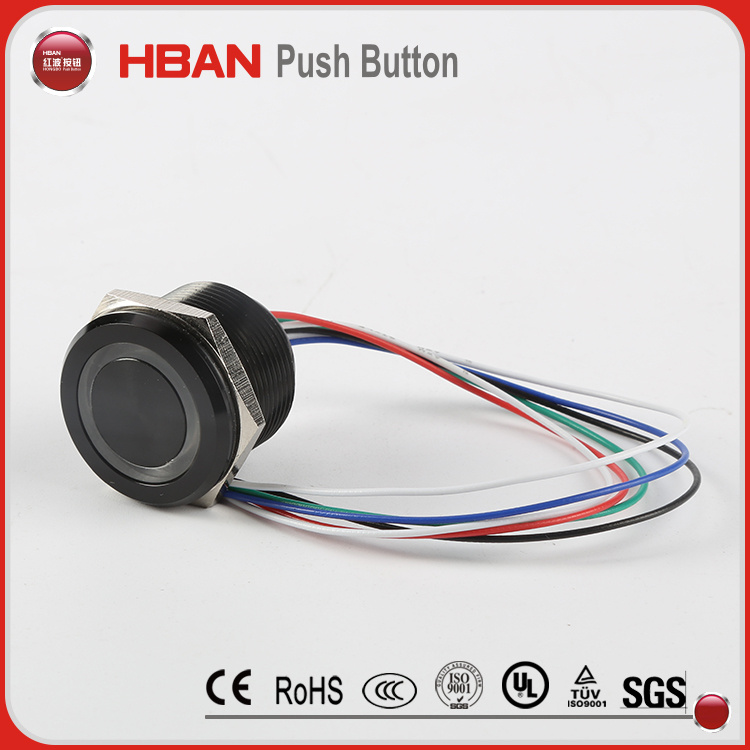

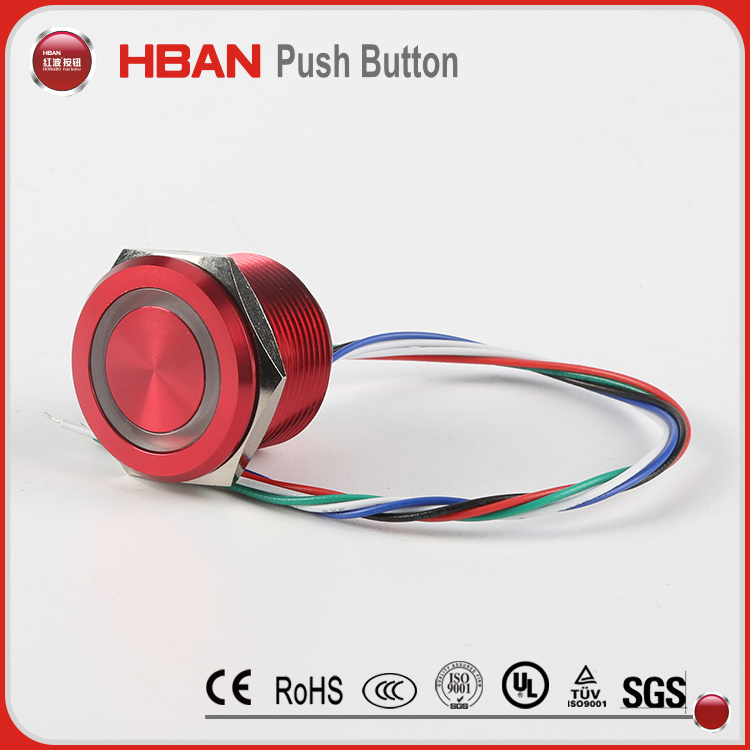

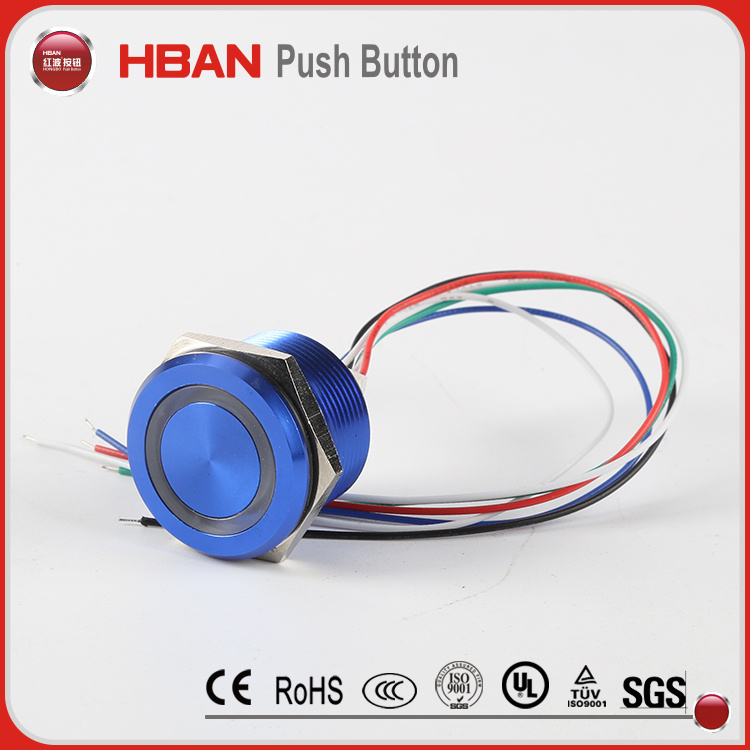

19mm Micro-travel metal Push Button Switch
Item No.:
HBGQ12B-10/J/A(1NO, pin terminal Momentary, Zn-al alloy)
HBGQ12B-10/A (1no,screw terminal,momentary,Zn-al alloy)
HBGQ12B-10/J/S (1no,pin terminal,momentary,stainless steel)
HBGQ12B-10/S (1no,screw terminal,momentary,stainless steel)
HBGQ12B-10/J/N (1no,pin terminal,momentary,nickel-plated brass)
Mounting Hole Size: Φ 12mm
Switch Rating: 2A/36VDC
The Front Shape: domed
The Crust Material: Zn-al alloy/stainless steel/nickel-plated brass
Protection Degree: IP65, IK08
PRODUCT SPECIFICATION:
| ITEM,NO | HBGQ12B-10/J/A | HBGQ12B-10/J/S | HBGQ12B-10/J/N | HBGQ12B-10/A |
| SPECIFICATION | 1NO,MOMENTARY,ZN-AL ALLOY | 1 NO,STAINLESS STEEL | 1 NO,nickel-plated brass | 1no,zn-al alloy |
| FRONT SHAPE | DOMED |
| CRUST MATERIAL | ZN-AL ALLOY/stainless steel/nickel-plated brass |
| SWITCH RATING | 2A/36VDC |
| PROTECTION DEGREE | IP65,IK08 |
| TERMINAL TYPE | PIN TERMINAL(2X0.5MM)/ screw terminal |
| OPERATIN TEMPRATURE | -20ºC+55ºC |
| DIELECTRIC STRENGTH | 2000VAC |
| MECANICAL LIFE | >1000000 |
| MECHANICAL | >200000 |
| PANNEL THICKNESS | 1-5MM |
| TORQUE | 5-14nNm |
| OPRATING STROKE | ABOUT 2.5MM |
| CONTACT ATERIAL | SILVER ALLOY |
| BUTTON MATERAL | PBT |
| CASE MATERIAL | ZN-AL ALLOY/stainless steel/ nickel-plated brass |
| BASE MATERIAL | PBT |
Packging Details:
We pack 50 pieces diameter 12mm metal push button switches into 1 foam box to protect them. We supply 50 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10 boxes / 20 boxes into
A 5 layers corrugated export carton.
