| Prod Model: |
HBS1-AGQ-11X/21, 22X/31 |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
19mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP67, Ik09 |
| Crust Material: |
Stainless Steel |
| Switch Rating: |
5A/250V AC |
| The Front Shape: |
Flat Round |
| Operation Pressure: |
3.5n |
| Operation Stroke: |
About 3.1mm |
| Type: |
Composite |
| Usage: |
Reset Button |
| Kind: |
Double-pole on-off Switch |
| Brand: |
Hban |
| Certification: |
TUV RoHS |
Product Description

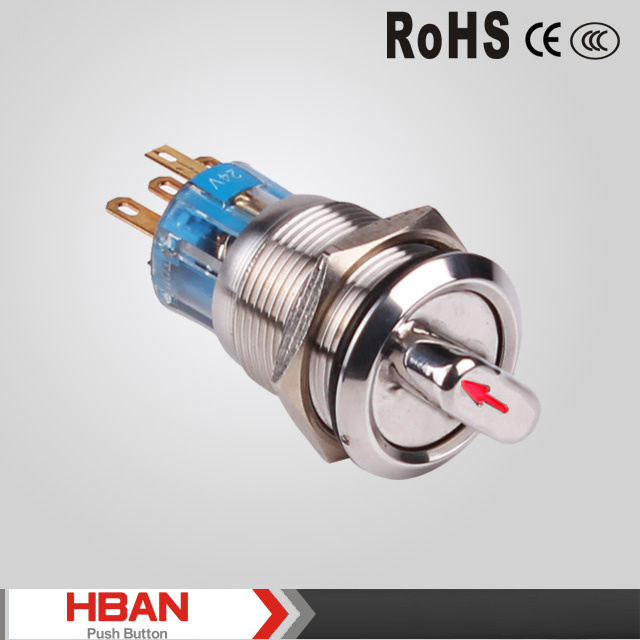

19mm stainless steel 2 position 3 position selector rotary switchPart Number: HBS1-AGQ-11x/21, 22x/21, 22/31, HBS1-AGQ-11xD/21, 22xD/21 22XD/31
Mounting hole size:dia.19mm
Switch Rating:5A/250VAC
Operation Type:IP40, (IP65 Can be made to order)
Switch Configuration:1NO1NC/2NO2NC
Contact Material: Stainless Steel , Nickel-plated Brass
| Specifications | HBS1-AGQ-11X/21 | HBS1-AGQ-22X/21 | HBS1-AGQ-22X/31 | HBS1-AGQ-11XD/21 | HBS1-AGQ-22XD/21 | HBS1-AGQ-22XD/31 |
| The Front Shape | SELECTOR SWITCH |
| Switch Configuration | 1NO1NC/2NO2NC |
| Switch Rating | 5A/250VAC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100 MΩ |
| Contact between lamp bead terminal | 1500V AC |
| Between same calss terminals | 1000V AC |
| Between different electrode terminal | 2000V AC |
| Operating Temperature | -25°C ~ +55°C |
| Mechanical Life | 200,000 times |
| Electrical Life | >30,000 times |
| Protection Degree | IP40 |
| Lamp Type | AC LED Lamp (Standard) |
| LED Rated Voltage | AC/DC 6V,AC/DC12V,AC/DC/24V,AC/DC110V,AC/DC220V |
| LED Color | Red,Green,Yellow,Orange,Blue,Whie,Black,Hyaline |
| LED Lifetime | About 40,000 hours |
Packaging Details:
We pack 40 pieces diameter 19mm metal push buton switches into 1 foam box to protect them. We supply 40 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 16 boxes / 20 boxes into a 5 layers corrugated export carton.
Packing Details:We pack 40 pieces diameter 19 mm push button switch into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
Company Information:
Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates. Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
Other imformation
1) Wide product catagory:metal anti vandal push button switch,ip67 waterproof push button switch,push button switch with illumination,plastic pUsh button switch,indicator light,peizoelectric switch,micro travel switch,buzzer.
2) over 13 years experience of manufacture and selling
3) lowest price from factory
4) up to 5 years product quality warranty
5) safety payment methods including paypal,western union,T/T,moneygram
6) specially customizing products as per your requests
7) products with CCC CE ROHS UL ISO9001 SGS TUV certification
8) reliable shipping means,such as international express(DHL,FEDEX,UPS,TNT EMS),sea-freight,air-freight
9) providing samples for free befor placing order

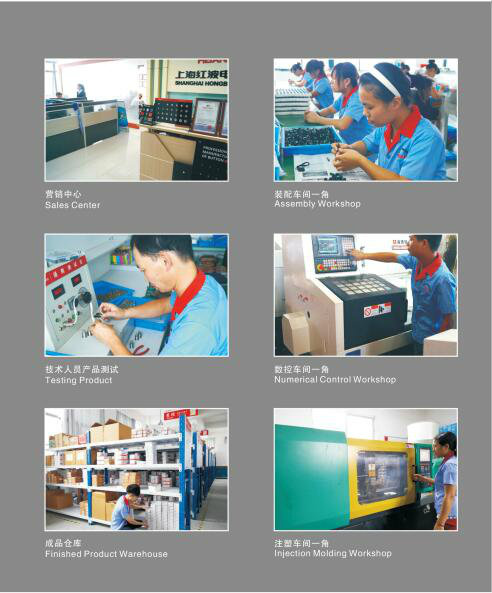

Company information
