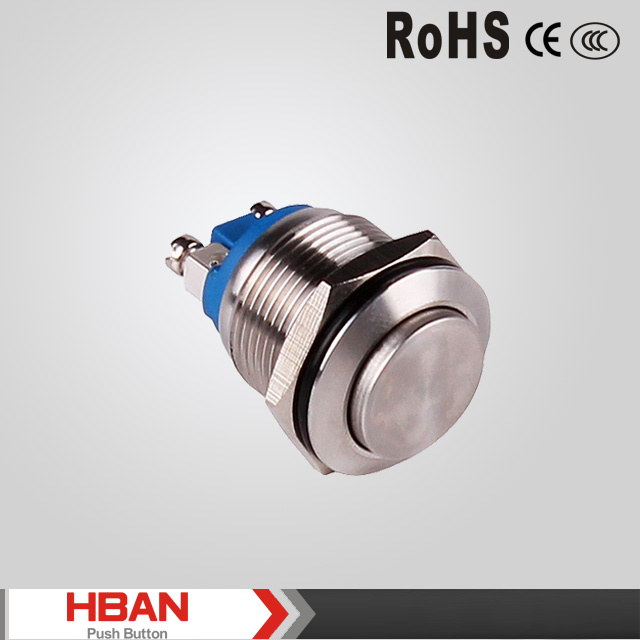

19mm TUV UL RoHS Hban High Round Screw Terminal Switch

Name: 19mm TUV UL RoHS Hban High Round Screw Terminal Switch
Brand: all-electronics-online.com
SKU: 791151765
Availability: InStock
Rating: 5 (21 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBGQ19H-10
LED Color:	Red, Green, Yellow, Orange, White, Blue
Diameter:	19mm
Voltage:	2V, 6V, 12V, 24V, 36V, 110V, 220V
Termianl:	Pin Terminal
IP:	IP65, Ik09
Crust Material:	Stainless Steel
Switch Rating:	5A/250V AC
The Front Shape:	Flat Round
Operation Pressure:	4n
Operation Stroke:	About 2.5 mm
Type:	Composite
Usage:	Reset Button
Kind:	Single-pole on-off Switch
Brand:	Hban
Contact Type:	Za
Certification:	TUV RoHS

Product Description

Premeters:

19mm 19MM tuv ul rohs HBAN high round screw terminal switch

Mounting hole size:19mm

Switch Rating:2A /36V AC

Item No.		HBGQ19B-10/N	HBGQ19B-10/S
Specification		1NO Momentary	1NO Momentary
Item No.		HBGQ19B-01/N	HBGQ19B-01/S
Specification		1NC Momentary	1NC Momentary
Front Head Shape		Domed
Terminal Type		Screw Terminal
Switch Type		X(Two terminal breakpoints slow moving contact)
Switch Specification		2A/36VDC
Contact Resistance		≤50m Ω
Insulation Resistance		≥1000MΩ
Dielectric Strength		2000V AC
Operating Temperature		-20degree~+55degree
Machanical Life		>1,000,000 times
Electrical Life		>200,000 times
Panel Thickness		1~10mm
Torque		5~14Nm
Operating Pressure		About 4N
Operating Stroke		About 1.8mm
Protection Degree		IP65,IK09
Material	Contact	Sliver Alloy
	Button	Mirror Surface
	Case	Nickel-plated Brass	Stainless Steel
	Base	PBT
	RoHS	Can be made to order

Packing Details:

We pack 40 pieces diameter 19 mm push button switch into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.

If you do not know which you need, please reply the following question, we can recommend of you.

1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM

2.Operation type: Momentary or Latching

5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle

6.The crust material: plastic, nickel-plated Brass, stainless steel or others

7.Pretection DegreeIP40 IP65 IP67

Would you need LED lamp and push button switches? If yes, please reply the following question.

1.LED type: Ring or Dot

2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v

3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White

4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed

5.Switch size: 10,12,16,19,22,25,28,30mm.

6.Switch operation type: momentary or latching

7.switch material,zn-al alloy,nickel-plated,alluminum,plastic

Company Information

We, HBAN, are committed to researching and studying the latest technologies and highest quality Metal and Plastic push buttonswitch, Piezo Switch,Micro Switch and signal light,led indicator,buzzers.

From around the world to enable our customers to get the best products available in the market.Such as Medical, Salon, Industrial,housing,architecture... For this purpose we have at hand a team of highly skilled technical staff, our greatest asset being our vast experience. Now our items passed CE ROHS UL and CCC certificate. Sincerely hope to do business with you.

FAQ

1.Are you maufactuer?

Yes, we are manufactuer

2.What's the difference between SHANGHAI HONGBO AND DAHE company?

We have an shop in Shanghai and registered SHANGHAI HONGBO, but the produce department is in DAHE company, which is located in the electric capital of Liushi, Wenzhou

3.How about the payment?

West Union, Paypal, Bank,T/T

4.Dlivery time

Within 15 days

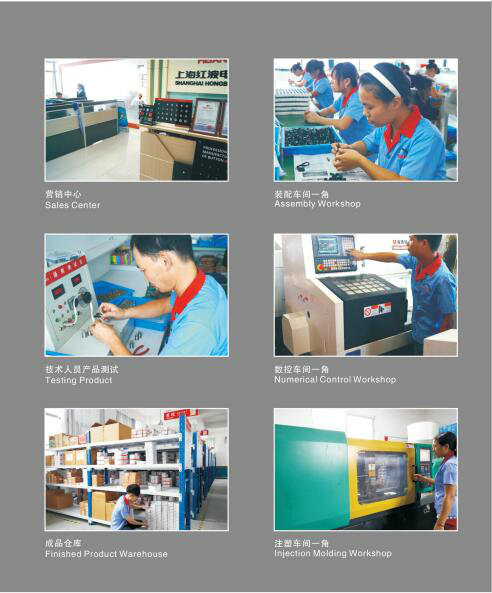

Company information

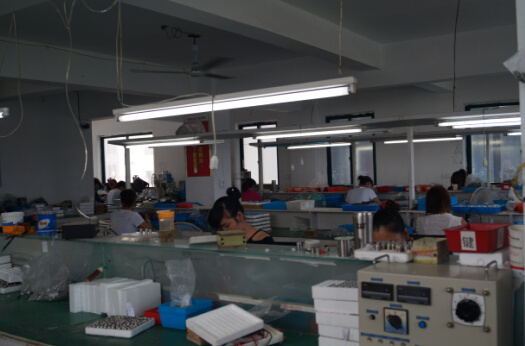

Testing product

packing information

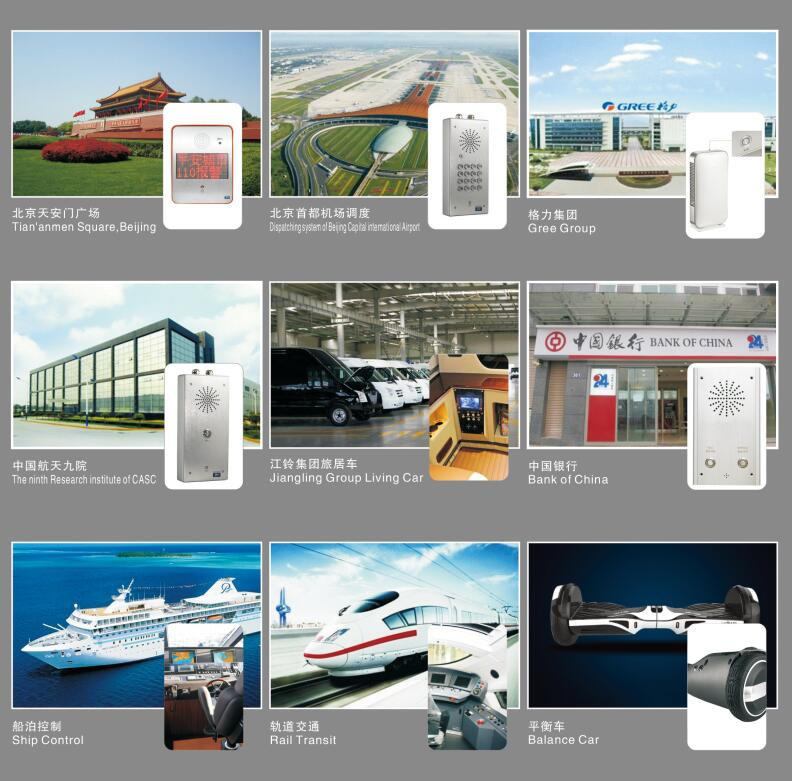

Product application

Tel : 0086-577-62708000 Fax : 0086-577-62708007
mobile:+8615098072722

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.

Tel: 0086-577-62708000 Fax: 0086-577-62708007
