1dB SC APC Optical Reflector

Name: 1dB SC APC Optical Reflector
Brand: all-electronics-online.com
SKU: 838633615
Availability: InStock
Rating: 4.9 (126 reviews)

Price:	US $ 20-28/Piece
Min Order:	20/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	4343
Material:	PC Plstic
Housing Color:	Green
Reflection:	1600nm
Connector:	SC APC
PDL:	0.5dB
Ripple:	0.5dB
Transmission Medium:	Multimode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	APC
Light Source TYPE:	Fiber

Product Description

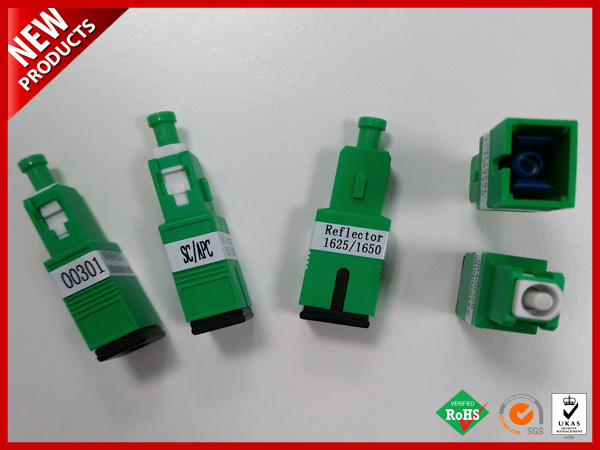

1dB SC APC Optical Reflector

Key Benefits:

Easy to install
Low insertion loss
Environmental stability

Applications:
FTTx
NG-PON
Test reflectance from the central office

1. Product description and application:

1650nm fiber grating optical filter is the important components in the field of Optical communications link to detect. The principle is equivalent to a band-pass filter, which completely reflects light from 1643.5nm to 1656.5nm back (the return ratio is over 99.5%) and all other wavelengths of light pass through. Used in the field of communication can be separated communication light (C + L band) and detection of light, to prevent the detection of light through to the communication signal impaction, and can detect the return light at the control. All aspects of fiber grating indicators are stronger than the coating method.

2. Product Function:

Pass 1310+1550 nm and Stop 1650nm.
RoHS compliance

3. Product features:

grating embedded in the fiber, free from environmental pollution;
high reliability, long life expectancy
Reflectance is high for bands that need to be blocked (above 99.5%), close to total reflection
The wavelength of the reflection band is controlled accurately (1643.5nm ~ 1656.5nm)
In the bandpass edge of the transition zone is very narrow (less than 2nm), this area is all-pass;
Using the standard common adapter structure, easy connection;
