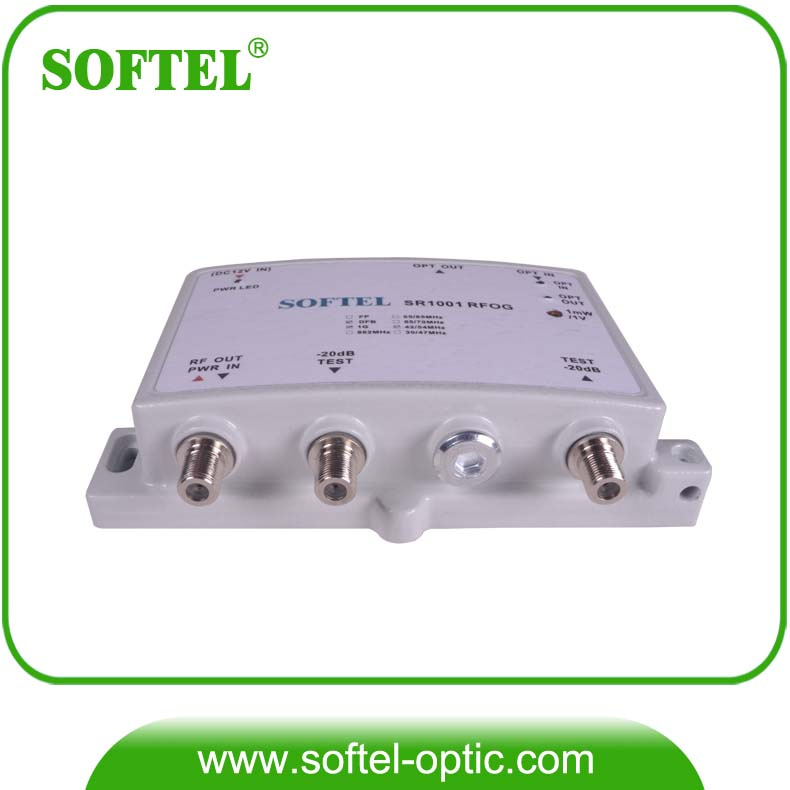

1GHz Indoor Fiber Optical Rfog Optic Receiver

Name: 1GHz Indoor Fiber Optical Rfog Optic Receiver
Brand: all-electronics-online.com
SKU: 689297822
Availability: InStock
Rating: 4.4 (23 reviews)

Price:	US $ 100-125/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SR1001RFOG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	1GHz Rfog Fiber Optical Micro Node Optic Receiver
Optical Agc Control Range:	-7~+2 dBm
Operating Frequency:	45/87 ~ 862/1003MHz
Output Optical Wavelength:	1310±10nm
Return Frequency:	5 ~ 65MHz
Input Return Loss:	≥16dB
Operating Temperature:	-20 ~ +55c
Operating Voltage:	DC +12V
Consumption:	≤ 6W
Dimension:	155X116X26mm
Type:	Fiber Transceiver
Wiring Devices:	Integrated Wiring

Product Description

1GHz RFoG fiber optical micro node optic receiver

Summary
-------------

SR1001RFOG-ONU optical receiver is our home use product that is specially developed for FTTHnetwork structure. The return path adopts burst mode RFOG (turn on the laser when have return signal), which greatly reduced the noise collection.

Characteristic
----------------
1. Excellent AGC characteristic, when the input optical power range is -7~+2dBm, the output level, CTB and CSO basically unchanged.
2. Professional RF attenuator circuit, with good attenuation linear and high precision.
3. GaAs amplifier device, with good index, low distortion and high reliability.
4. The return path control adopts burst mode, which greatly reduced the noise collection.
5. The shell adopts aluminum die casting, the heat dissipation effect is good and the appearance is exquisite.
6. The power supply mode is external DC +12V.

1. Forward path
Optical AGC control range: -7~+2 dBm	C/N : ≥ 51dB (Note1)
Operating frequency: 45/87 ~ 862/1003MHz	C/CTB : ≥ 68dB (Note1)
Flatness in band: ±0.75dB	C/CSO : ≥ 65dB (Note1)
Rated output level: ≥ 92dBμV	Maximum output level: ≥ 92dBμV
2. Return path
Output optical wavelength: 1310±10nm (or specified by the user)	Output optical power: 1 mW (or specified by the user)
Operating frequency: 5 ~ 65MHz (or specified by the user)	Link flatness: ±1.5 dB
Input level range: 75 ~ 85dBμV	Input return loss: ≥16dB
NPR dynamic range: ≥10dB (FP laser, NPR≥30 dB); ≥15dB (DFB laser, NPR≥30 dB)
