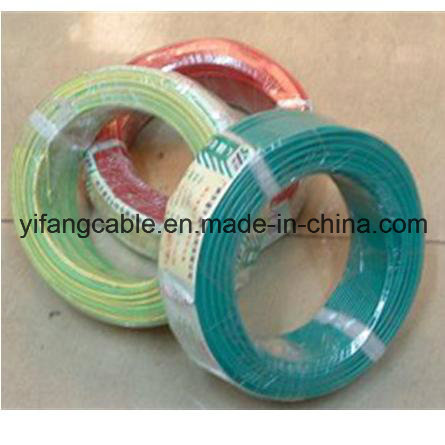

1kv House Wire 1 Core (1.5mm2 to 16mm2)

Name: 1kv House Wire 1 Core (1.5mm2 to 16mm2)
Brand: all-electronics-online.com
SKU: 711038652
Availability: InStock
Rating: 5 (143 reviews)

Price:	US $ 1-10/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HW-BE23
Rated Voltage:	300/300V,300/500V,450/750V,600/1000V
Alternative Standard:	AS/NZS 5000,2:1999,BS6004
Sectional Area:	up to 800mm2
Insulation Color:	Standard
Sheath Color:	Standard
Overview Type:	Round
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	VDE
Conductor Type:	Super Soft
Application:	Domestic Use
Sheath Material:	Cold-Resistant PVC
Range Of Application:	Domestic and Industrial Wiring
Brand:	Yifang

Product Description

Product Discription
Electric Wire, 450/750 V, Flexible Cu/PVC (BS 6004)
PVC insulated copper wires are covering series of wire products, its working voltage is from 450/750V and tis working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.

According to the conductor type, including solid conductor PVC insulated electrical wire, standed PVC insulated wire, Flexible PVC insulated wire with different colors.

According to its shape, including flat wire, round wires, etc. With different colors

According to its core number, including single core wires, multi-core wire. Etc. With different colors.

Nominal Cross Sectional Area	Nominal Overall Diameter	Nominal Weight
mm²	mm	kg/Km
0.75	2.3	10.6
1.00	2.5	13.7
1.5	3.1	20
2.5	3.6	31
4.0	4.3	46
6.0	5.5	75
10.0	6.8	125
16.0	8.6	199

SERVICING

Purpose:
To establish and maintain a procedure for performing and verifying that our service meets specified requirements and that a suitable method of feedback exists from the customer back to the appropriate individual or department within YIFANG.

Scope:
YIFANG does not currently have any contracts that obligate the company to provide installation or service above and beyond normal product service and delivery. Service activity not specified by contract (such as the treatment of a customer complaint) shall be determined and performed free of charge on a case by case basis. Service concerns will be recorded and will provide a feed-back system as required by the customer.

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
