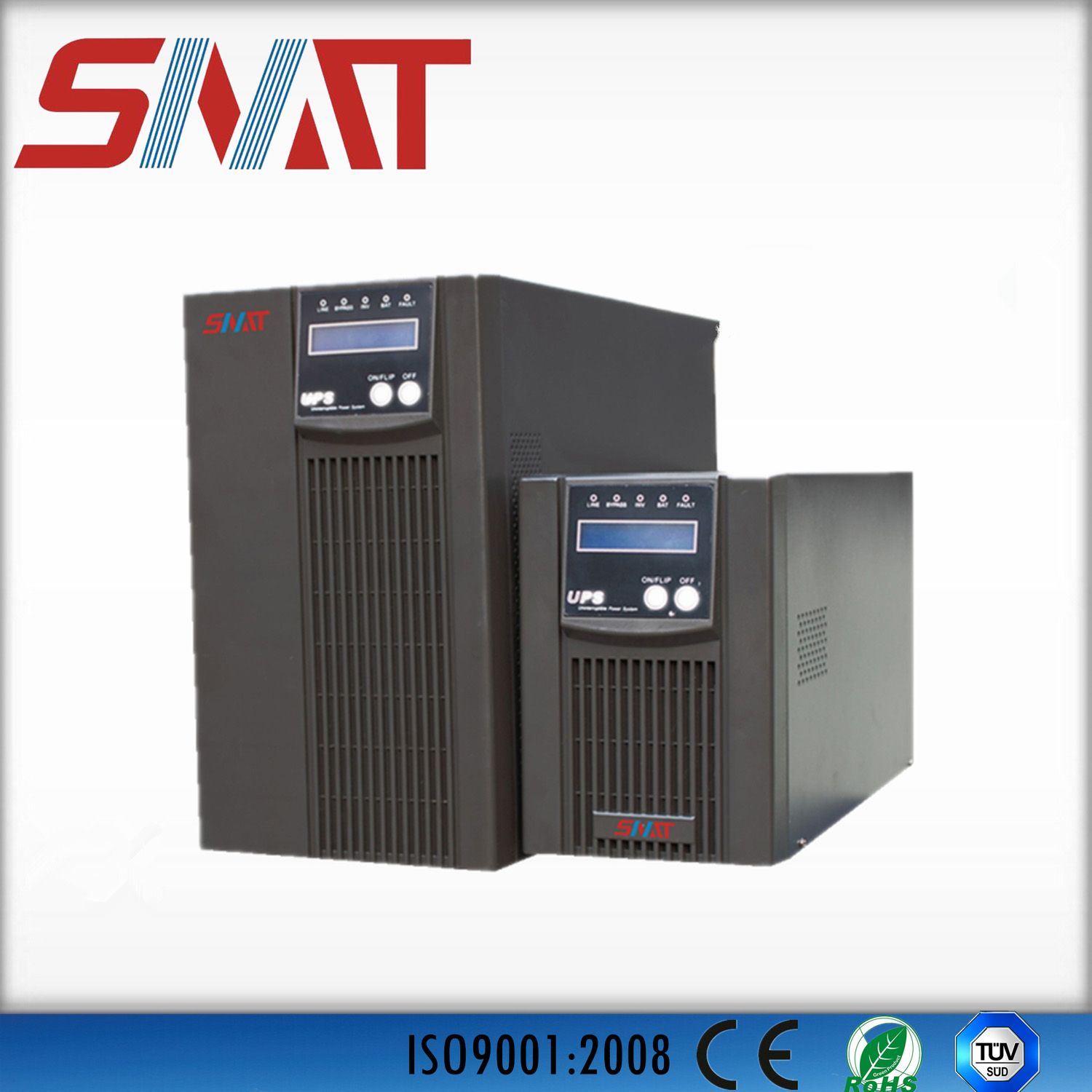

1kVA~3kVA High Frequency UPS for Solar Power System

Prod Model:	SNU-123
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mode:	Double Conversion
Waveform:	Pure Sine Wave
Noise:	<60dB (Distance 1m)
OEM/ODM Service:	Offered
Switching Time:	0s
MOQ:	1 Unit
Phase:	Single Phase
Type:	On-line
Protection:	Sealed Maintenance Free
Brand:	Snat

Product Description

1kVA 2KVA 3KVA high frequency Online UPS for Power Supply

Product introduction
SNAT high frequency online UPS, is designed to effectively solve the modern IT equipment and network communication application environments etc. high quality electricity demand by SNAT company. With advanced modern IT equipment to achieve good matching of a new generation of intelligent UPS.

To provide safe and reliable power protection for the following places:
  the key server and network transmission equipment
  telecommunications equipment, including VOLP
  the bank and security system
  the medical system
  manufacturing and control system
  the laboratory equipment, precision instruments and meters, etc


Detailed parameters

Function characteristics:

On-line double transform structure design, providing continuous clean electricity, protect the key electric equipment from blackout of power grid,electricity unstable, frequency drift, harmonic interference etc. effects.

Humanized design, LED status display, easy to management and operation

High efficiency, high input/output power factor, comprehensive matched modern IT load equipment, energy conservation and environmental protection

Pure sine wave output
wide range of input frequency (40-70 hz), adaptive output frequency 50/60 hz, meet all kinds of generators to access

Zero switching time

Enter zerowire firewire reverse detection function

Automatic restart function

Automatic detection function, under-voltage and bypass and emergency shutdown etc. protection function

Abundant output power distribution and communication monitoring to choose the parts, meet the installation of IT administrators and management requirements

To adapt to different countries power grid environment, strong load capacity, high efficiency

High reliability, stable quality, good compatibility, strong anti-jamming capability

TECHNOLOGY INDEXES:

SNAT high-frequency series on-line(1KVA-3KVA)
Model		1KVA			2KVA	3KVA
Rated capacity(W)		700W			1400W	2100W
Input	Rated voltage	220VAC
	Voltage range	115-300VAC
	Frequency range	46-54 hz (software adjustable)
	Power factor	>0.98
Output	voltage	220VAC±2%
	frequency	50Hz±0.1% (battery mode)
	waveform	Pure sine wave
	Distortion (THD)	Linear load≤3%, nonlinear load≤6%
	Overload capacity	Mains mode, the load is 105% - 150% for 30 seconds, load > 150% when 300 milliseconds later, to bypass mode and report to the police
		Batteries work mode, load is 105% - 150% for 30 seconds, load > 150% when 300 milliseconds close output and alarm
	peak factor	3:1
Battery	type	Valve control type free maintenance battery
	Nominal voltage	36VDC			96VDC	96VDC
Standby time(full/half load)	mintues	5/15 standard type/long-acting type depends on external battery capacity
Conversion time		0 milliseconds (electricity and battery)
Protective capability		Overload, short circuit, overvoltage, undervoltage, overheating, TVSS
Display	LED	UPS operation status indicator, battery capacity, load
Noise		1meter distance		<45dB			<50dB
Communication interface	RS232USB	standard RS - 232
	Intelligent shot	Optional collocation: SNMP card, AS400 card
operating environment	environment temperature	0-40ºC
	Relative humidity	0-95% no condensation
Weight	Net weight(KG)	14/7	34/13.5					34/14
Size	(W*L*H)mm	145*400*220	193*460*340
