1kVA~3kVA UPS Inverter for Solar System

Prod Model:	M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Company:	Manufacturer&Trading
OEM/ODM:	Accept
MOQ:	1 Unit
Inverter Efficiency:	> 87%
Sample Order:	Accept
Special Design:	Accept
Approve:	Ce.ISO9001
Warranty:	1/2years
Delever Time:	Within a Week
Mode:	Online
Type:	On-line
Phase:	Single Phase&Three Phase
Protection:	Overvoltage, Short Circuit, Overcurrent,
Application:	Industry, Home, Commercial, Communication
Output Capacity:	Optional
Brand:	Snat

Product Description

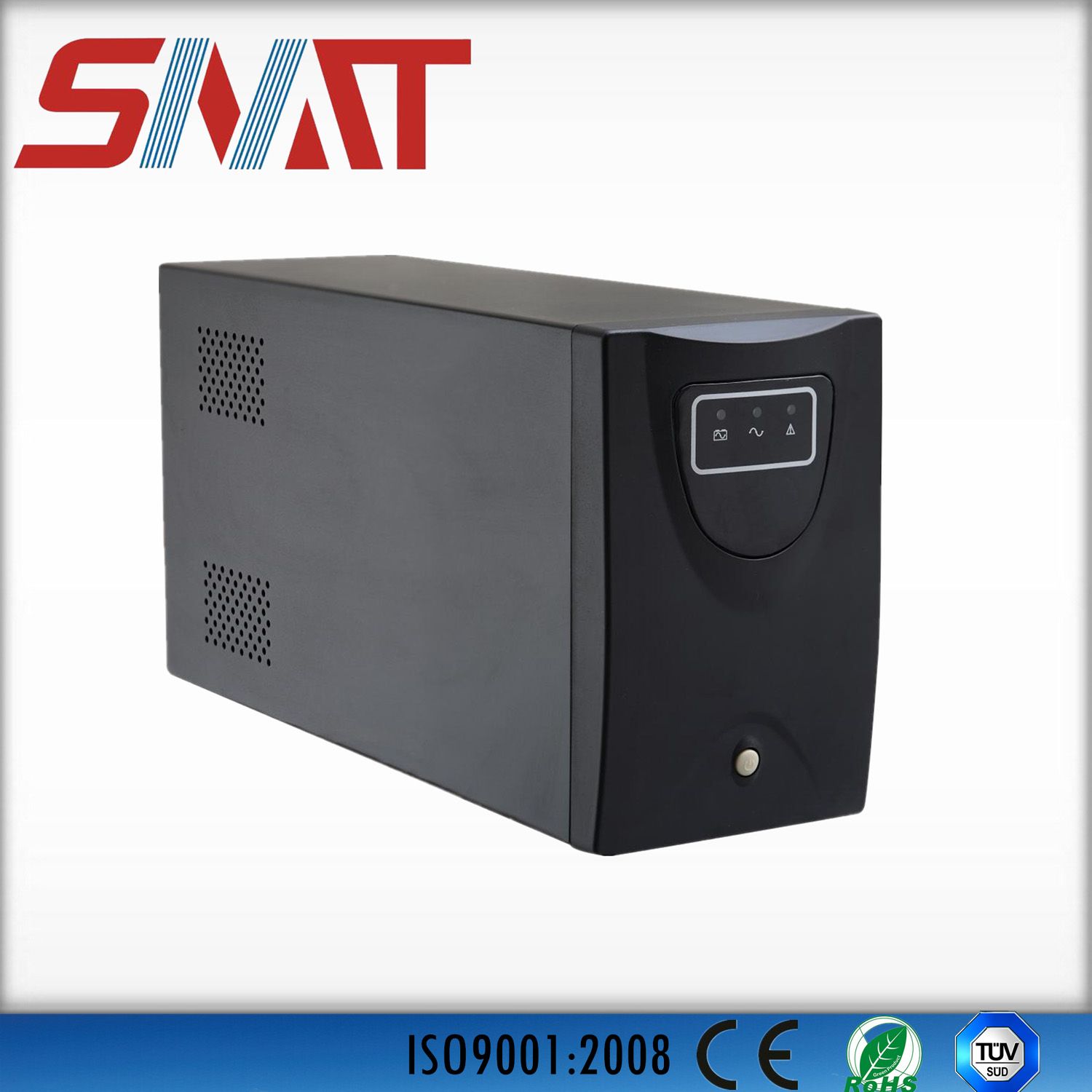

                                                                     M series UPS


The inverter is designed by our company independently; it's controlled by CPU, high quality and modify sine wave intelligent inverter


Features



`Smart Battery Management System

Through intelligent, precision charging technology for optimal battery performance, life and reliability. Sine wave output is more suitable to be compatible with the load.

`Comprehensive protection

Lightning or over-voltage protection function better than any separate high voltage suppressor. Network-level signal line conditioning prevents glitches.

`Automatically adjust the voltage is too low
By widening the input voltage range or enhance the output voltage regulation, can maximize battery life.

`Automatically adjust the voltage is too high

It can operate at high voltage without causing unnecessary battery depletion. Initiative to reduce excessive voltage to the system voltage security.

`Battery replacement alarm prevents downtime

Early warning of battery failure analysis for timely




Product Application

1.Industrial equipment series: Solar energy; Wind power generation, Metal halide lamp, High-pressure sodium lamp, Ship, Vehicle, etc

2.Electric tools series: electric saw, drilling machine, grinding machine, sandblasting machine, punching machine, weeding machine, air compressor, etc.

3.Office equipment series: computer, printer, monitor, copier, scanner, etc
Household appliances series: Cleaners, fan, Lamps, Refrigerator, Air conditioner, microwave oven, freezer,  etc.

4.Electronics series: TV, VCR, video games, radio, power amplifier, music equipment, monitoring equipment, terminal equipment, servers, intelligence platform, satellite communications equipment







Specification parameter:

Mode	C1K	C1KS		C2K	C2KS	C3K	C3KS
Rated power	700w			1400w		2100w
Input voltage range	145~290VAC
Output voltage range	192~253VAC
Input protection	Brake circuit can be copied
Frequency	50/60Hz
switching time	2~3.5ms(Typical load)
Inverter output voltage	230VAC
Inverter output frequency	50/60Hz
Inverter output sine wave	Pure sine wave
Battery	12AH			17AH ×4
Battery voltage	24V			48V
Charging time	8~12 hours
Communication Interface	RS-232
Operating temperature	0-40ºC
storage temperature	'-15ºC~+45ºC
Electromagnetic interference	CISPR22 CLASS B FCC CLASS B
Safe range	UL TUV STANDARD
Lightning tolerance	IEEE C62.41 CATEGORY A STANDAR D
Size(mm)	439*170*216		544*196*432
Weight(KG)	18.5		15.5	46.8	32	50.3	38

About us

*Our company is specializing in solar products for 10 years,

*Our factory is located in Foshan City ,Guangdong province.

*Our main products include inverter, Uninterruptible power supply, solar controller, solar inverter with built-in controller,  battery, and so on.

*Welcom to visit
