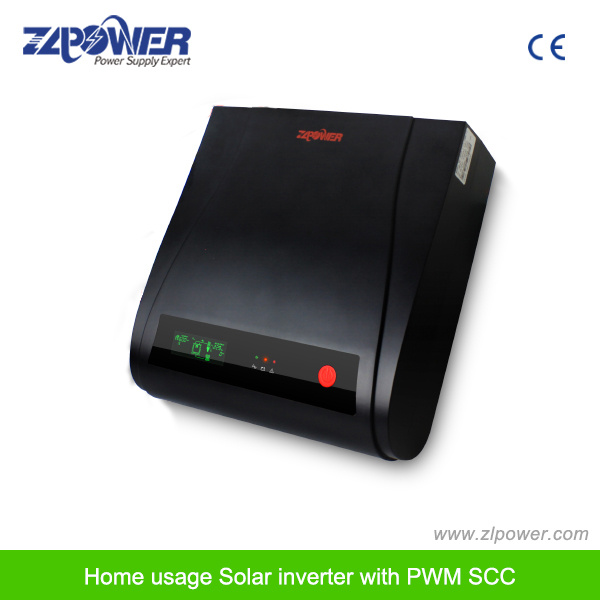

1kVA/720W 2kVA/1300W Modified Sine Wave Offgrid Hybrid Inverter
| Price: |
US $ 62-72/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
HD Plus |
| Input Voltage: |
230VAC |
| Output Voltage: |
230VAC(+10%/-18%) |
| Frequency: |
50Hz,60Hz |
| Battery Mode Efficiency: |
>87% |
| Line Mode Efficiency: |
>96% |
| Protections: |
Low Battery, Over Charging,Over Load,Over Temp |
| Indicators: |
LCD+LED Display |
| Warranty: |
2years |
Product Description
The HD Plus Series AC/Solar charging Off grid Hybrid Inverter.
Built-in enhanced AC charger.
Built-in solar charger controller up to 40A.
Selectable Input voltage ranges,AC charging current,AC or solar charger priority.
Intelligent 3-stage charger control for efficient.charging and preventing over charger.
Auto restart upon AC recovery.
LCD+LED display.
Multiple protections:low battery alarm,low battery shut-down,over charger protection,over load protection,over temperature protection.short circuit protection.
Specification| Model Parameters | HD Plus1K-12 | HD Plus2K-24 |
AC
Input | Nominal Power | 1KVA/720W | 2KVA/1300W |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal input Voltage | 230VAC |
| Selectable Voltage Range | 165-270Vac±4%(Narrow Range) 85-270Vac±4%(Wide Range) |
| Max AC input Voltage | Max:270VAC |
| Frequency | 50Hz:or 60Hz |
AC
output | Output Voltage Waveform | Modified sine wave |
| Voltage Regulation (Batt.Mode) | 230VAC (+10% / -18%) |
Nominal Output
Frequency (Hz) | 50Hz or 60Hz (Auto detection) |
| Transfer Time | 15ms Typical, 40ms Max. |
Solar
charger | Charger mode | PWM |
| Maximun PV Array Power | 450W | 900W |
| Optimal Work Voltage Rang | 15VDC-18VDC | 30VDC-36VDC |
| MAX. PV input Voltage | 55VDC |
| MAX. PV input Current | 40Amp |
AC
Charger | Charging Algorithma | 3-step charging |
| Nominal Charger Current | 15 Amp or 20Amp Selectable | 10Amp |
| Floating Charging Voltage | 13.7VDC | 27.4VDC |
| Over charge Protection | 16VDC | 32VDC |
| Efficiency | Efficiency (Battery Mode) | >80% |
| Efficiency (Line Mode) | >95% |
Battery
Voltage | Nominal DC input Voltage | 12VDC | 24VDC |
| Low Battery Alarm | 10.5VDC±0.3VDC | 21VDC±0.6VDC |
| Low DC input shut-down | 10VDC±0.3VDC | 20VDC±0.6VDC |
High DC input
Alarm & Fault | 16VDC±0.3VDC | 32VDC±0.6VDC |
System
Parameter | Protections | Low battery, over charging, over load, over temp |
| Indicators | LCD+LED Display |
| Over-Load Protection | 1min Load >110%,20s Load >120%,0s Load >150% |
General
Specifications
| Operating Temperature
Range | 0ºC to 40ºC |
| Storage Temperature | -15ºC~55ºC |
| cooling | Forced air,variable speed fan |
| Dimension(L*W*H) | 276.7*245*97mm |
| Net Weight(kg) | 2.6 | 2.7 |
| | | | |
| Product specifications are subject to change without further notice | |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
