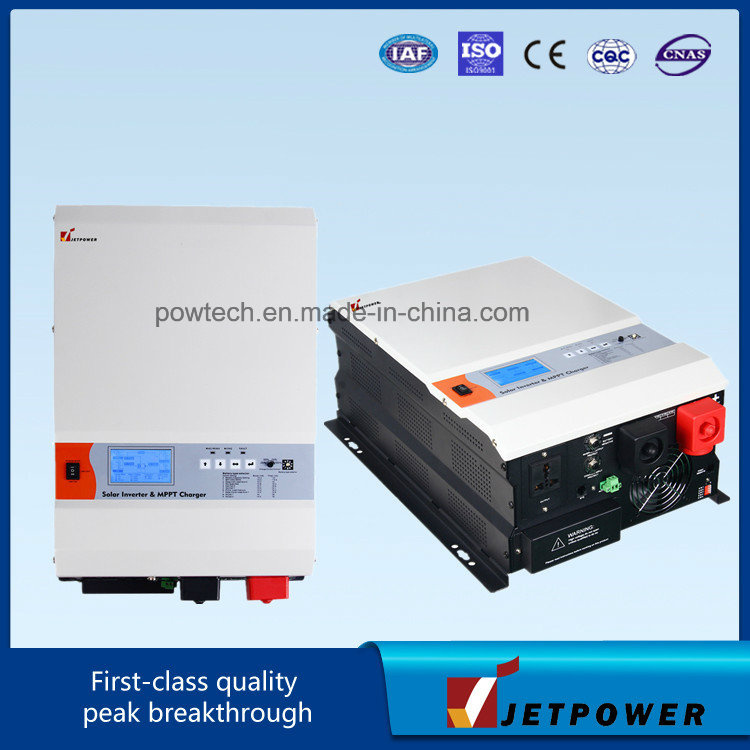

1kW Low Frequency Wall Mounted Integrated Solar Power Inverter / Solar Inverter
| Price: |
US $ 270/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SI-L 1KW 12VDC |
| Rated Power: |
1kW |
| Input Nominal Voltage: |
120VAC(Optuion) 230VAC |
| Low Frequency: |
50/60Hz(Auto Detection) |
| Output Voltage: |
120VAC(Optuion) 230VAC |
| Wave Form: |
Pure Sine Wave |
| Battery Voltage: |
12V/24V/48V |
| Charging Voltage: |
Depending on Batt Type |
| Solar Charging: |
15-150VDC/25VDC-150VDC/60VDC-150VDC |
| Max Solar Charging Current: |
60A Max |
| Max AC Charging Current: |
10-85A Max |
Product Description
1kW Low Frequency Wall Mounted Integrated Solar Power Inverter Production Introduction:(1) Battery Voltage 12V/24V/48V
(2) Built-in 60A 480W MPPT Solar Controller
Features: 1, Wall mounted2, Built-in MPPT solar controller 3, Pure sine wave output4, Low frequency design5, DIP switch to set AC input voltage range and low battery trip-voltage6, Output power factor is 0.9-1 and output socket can choose7, Well accept generator's output and auto generator start terminal8, Full automatical and silent operation9, Automatically transfer between battery and line modes10, Microprocessor control guarantees high reliability11, Remote control, BTS function12, Four-steps intelligent charging controll to recharging time13, Bypass function with AVR function (optional)14, The charging current is big up to 85 Amp, can adjust through front panel15, AC /solar output priority optional16, Charging mode priorities optional17, Battery type can choose through front panel Full protection:Protection for low battery voltage, overload, output short circuit and over-temperature, restrain surgeinterference, eliminate noise, protection for thunder striking, provide the reliable power to the household appliances Applicantions:Supply reliable long backup time power for the household applicances, office appliances and solar power systems etc.Specifications of SI-L Series (1-12KW)| Model | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW |
| Input Wave Form | Sine Wave (Utility or Generator) |
| Nominal Voltage | 120VAC (option) 230VAC |
| Low Voltage Trip | 90v+/-4% &184v/154v+/-4% |
| Low Voltage Reengage | 100v+/-4% &194v/164v+/-4% |
| High Voltage Trip | 140v+/-4% &253v+/-4% |
| High Voltage Reengage | 135v+/-4% &243v+/-4% |
| Nominal Input Frequency | 50Hz/60Hz (Auto Detection) |
| Low Frequency Trip | 47Hz for 50Hz, 57Hz for 60Hz |
| High Frequency Trip | 55Hz for 50Hz, 65Hz for 60Hz |
| Output Wave Form | (Bypass Mode) Sine Wave (Utility or Generator) |
| Overload Protection | Circuit Breaker |
| Short Circuit Protection | Circuit Breaker |
| Effeciency On Line Transfer Mode | >95% |
| Line Transfer Time | 10ms Typical |
| Bypass Without Battery Connected | Yes |
| Inverter Output |
| Output Wave Form | Pure Sine Wave |
| Output Continuous Power Watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
| Output Continuous Power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
| Power Factor | 0.9-1.0 |
| Nominal Output Voltage rms | 120VAC (option) 230VAC |
| Output Voltage Regulation | +/- 10% rms |
| Output Frequency | 50Hz+/-0.3Hz or 60Hz +/-0.3Hz |
| Short Circuit Protection | Yes, Fault After 1 secs |
| Inverter Input |
| Nominal Input Voltage | 12V/24V/48V | 96V |
| Minimum Start Voltage | 10V/20V/40V | 80V |
| Low Battery Alarm | 10.5V/21V/42V | 84V |
| Low Battery Trip | 10V/20V/40V | 80V |
| High Voltage Alarm | 16V/32V/64V | 128V |
| Charger |
| Output Voltage | Dependent On Battery Type |
| Charge Current | 10-85A Max. | 35A Max. | 45A Max | 50A Max. |
| Battery Initial Voltage for Start Up | 0-15.7v for 12v(*2 for24v, *4 for 48v) |
| Over Charge Protection | 15.7v for 12v(*2 for24v, *4 for 48v) |
| Solar Charger |
| MPPT Range @Operating Voltage | 15VDC~150VDC/25VDC~150VDC/60VDC~150VDC | 100VDC~300VDC |
| Maximum PV Array Open Circuit Voltage | 150VDC | 300VDC |
| Maximum Charging Current | 60A | 40A |
| Maximum Efficiency | >96% |
| Standby Power Consumption | 2W |
STANDARD: Conform to GB/IEC Regulation: EMC:GB 7260.2/IEC62040-2 ; GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB943NOTE: Product specifications are subject to change without further notice.
FAQ
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1-2 pieces samples, But they are charged and u should pay the
express cost or u provide us with express account number.
Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.
Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production.
Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.
Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.
Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
