1m 1.5m 0.9mm LC Upc Single Mode Fiber Optic Pigtail

Name: 1m 1.5m 0.9mm LC Upc Single Mode Fiber Optic Pigtail
Brand: all-electronics-online.com
SKU: 815988645
Availability: InStock
Rating: 4.7 (138 reviews)

Price:	US $ 0.1-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC-Fiber-Pigtail
Item Name:	Fiber Optic Pigtail
Keywords:	Fiber Optic Pigtail/LC Pigtail
Length:	1.5m
Connector:	LC/Upc
Mode Type:	Single Mode G652D
Insert Loss:	<= 0.3dB
Customized:	Available
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	CCC

Product Description

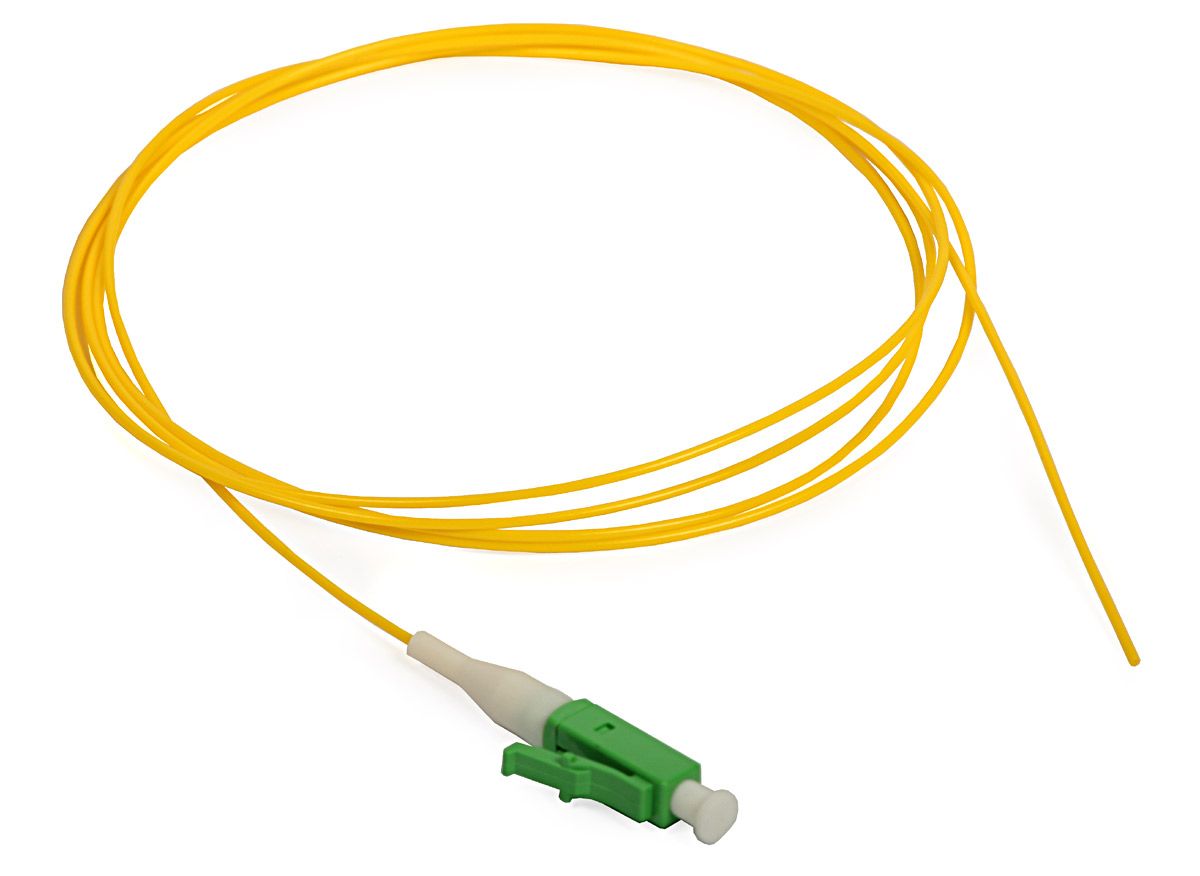

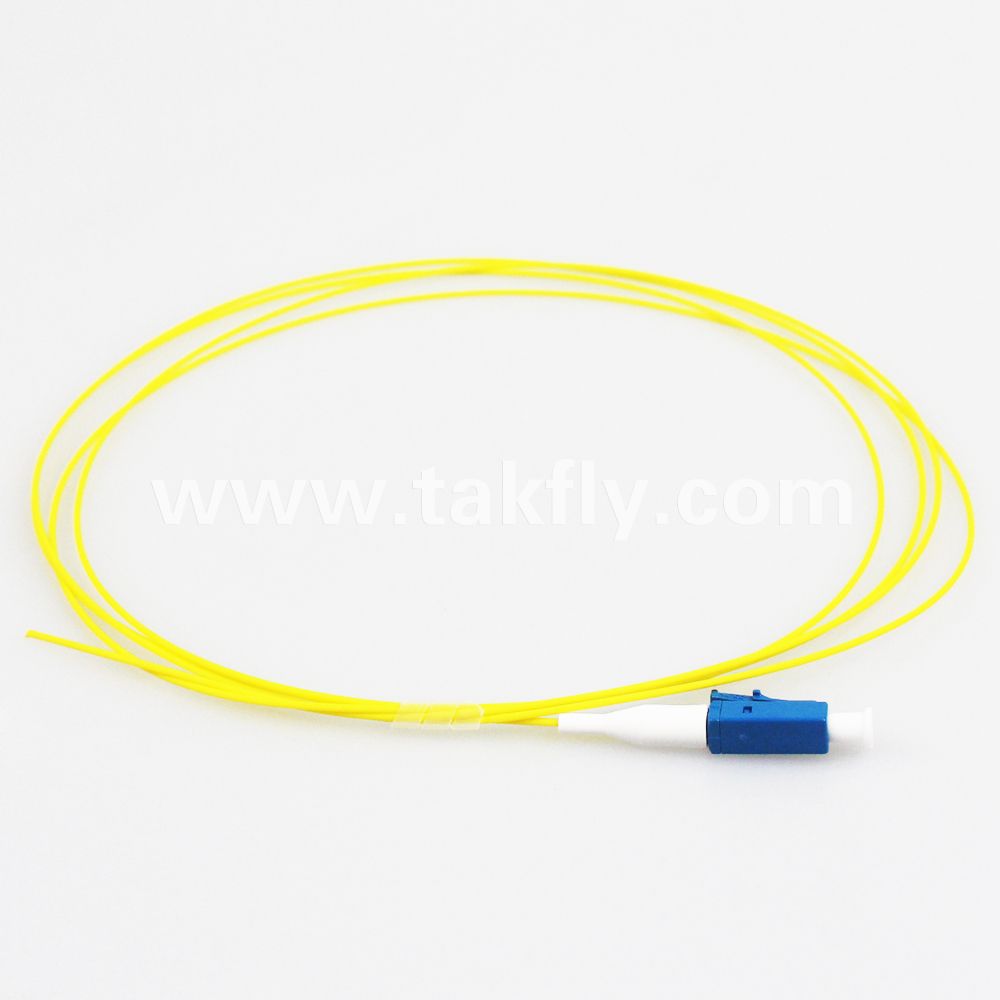

1m 1.5m 0.9mm LC Upc Single Mode Fiber Optic Pigtail

Pigtail is a length of fiber permanently attached connector only at one end. Available in a large range of colors and lengths, we have the cable that can fit every situation. and pigtail assembled with various types of connectors (such as FC, SC, ST, LC,MU,MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.

Features:
LC Simplex or Duplex
ANSI, IEC , TIA/EIA , NTT and JIS standard compatible
UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm
Precision mechanical dimensions
Zirconia ferrule PC or APC diameter
125~128 um high concentricity
Single mode, Multimode and Angle PC
Multi-piece type or one-piece type is available
All parts compliant with ROHS

Application:
Telecommunication
CATVLAN & WAN
Network
Broadband
FTTH

Parameter:

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.15dB
Insertion Loss	MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
Return Loss	MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test		Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40ºC~85ºC)		Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature		-40ºC~+75ºC
Storage Temperature		-40ºC~+75ºC

Fiber Optic Pigtail Order Information:

CODE	CONNECTOR	CABLE SIZE	FIBER TYPE	CABLE TYPE	FIGURE
H01	1.SM Simplex 2.MM Simplex 3.APC Simplex 4.SM Duplex 5.MM Duplex 6.APC Duplex	1. 0.9 2. 2.0 3. 3.0	1.9/125 2.OM3 3.50/125 4.62.5/125	1.Yellow PVC 2.Orange PVC 3.White PVC 4.Yellow LSZH 5.Orange LSZH 6.White LSZH	1.Blue 2.Beige 3. Green 4.Black 5.Blue and Yellow 6.Red and Black

Factory View

Any question about Fiber Optic Pigtail,please leave me an inquiry or contact me direclty.
