1m 2m 3m 4 M Ultrasonic Liquid Level Sensors

Name: 1m 2m 3m 4 M Ultrasonic Liquid Level Sensors
Brand: all-electronics-online.com
SKU: 811726545
Availability: InStock
Rating: 4.7 (133 reviews)

Price:	US $ 115/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QU-06
Types:	Non Contact
Power Supply:	12/24VDC
Beam Angle:	15°,12°,9°
Detection Accuracy:	0.25 ~ 0.5% Fs
Blind Area:	≤ 100 ~ 800mm (According to Different Range)

Product Description

1m 2m 3m 4 M Ultrasonic Liquid Level Sensors

Features:

1. Non contact
2. Easy to installation
3. Small in size, light in weight
4. 12/24VDC Power supply
5. Long working life and high reliability.

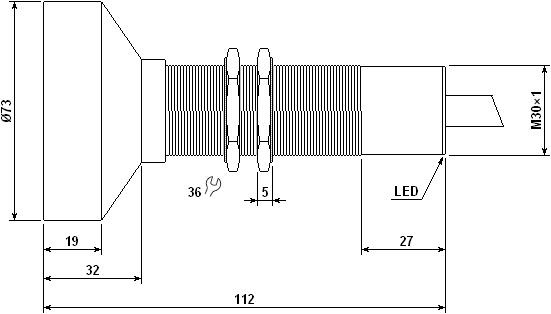

Dimensions: Ultrasonic Level Sensor / for Liquids / for Tanks / Non-Contact 4-20mA / 0-5V / 0-10V

Ultrasonic Level Sensor / for Liquids / for Tanks / Non-Contact 4-20mA / 0-5V / 0-10V

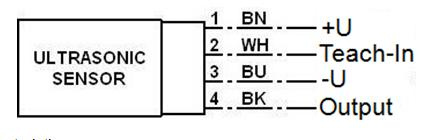

Connecting Method:
Technical Specifications:

Part number	QUW-05
Sensing range sd	500 ~ 8000 mm
Adjustment	Yes
Sonic frequency	65 KHz
Response time	30 ms
Voltage supply range +Vs	15~30 VDC
Current consumption max.	35 mA
Output signal	4~20ma
Adjustment	Yes
LED yellow	solid yellow: object in the evaluation range yellow flashing: program function, object detected
LED red	solid red: Error red flashing: program function, object not detected
Type	Cylindrical
Housing material	nickel-plated
Width / diameter	30 mm
Height / length	112 mm
Connection types	Connector M12
Operating temperature	-25~ +70 °C
Storage temperature	-40~+80°C
Protection class	IP 68

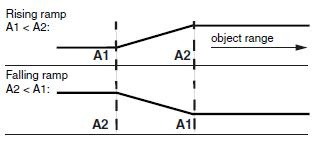

Programmed Analogue Output Function:
Ultrasonic Level Sensor / for Liquids / for Tanks / Non-Contact 4-20mA / 0-5V / 0-10V

A1:                unusable area
A2:                nominal sensing range
Mode of operation:  rising ramp

Adjusting The Evaluation Limits
The ultrasonic sensor features an analogue output with two teachable evaluation limits. These are set by applying the supply voltage -U or +U to the TEACH-IN input. The supply voltage must be applied to the TEACH-IN input for at least 1s. LEDs indicate whether the sensor has recognized the target during the TEACH-IN procedure. The lower evaluation limit A1 is taught with -U, A2 with +U.

TEACH-IN rising ramp (A2 > A1)
- Position object at lower evaluation limit
- TEACH-IN lower limit A1 with - U
- Position object at upper evaluation limit
- TEACH-IN upper limit A2 with + U

TEACH-IN falling ramp (A1 > A2):
- Position object at lower evaluation limit
- TEACH-IN lower limit A2 with + U
- Position object at upper evaluation limit
- TEACH-IN upper limit A1 with - U

LED Displays

Displays in dependence on operating mode	Red LED	Yellow LED
Teach-In evaluation limit
Object detected	Off	Flash
No object detected	Flash	Off
Object uncertain (Teach-In invalid)	On	Off
Normal mode (evaluation range)	Off	On
Fault	On	Previous state
