1m Simplex Fiber Patch Cord 2.0mm with PVC and Sc/Upc

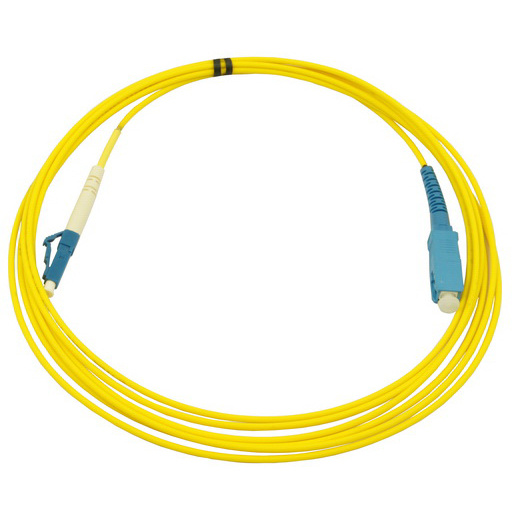

Name: 1m Simplex Fiber Patch Cord 2.0mm with PVC and Sc/Upc
Brand: all-electronics-online.com
SKU: 811025165
Availability: InStock
Rating: 4.5 (39 reviews)

Price:	US $ 0.4-0.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Patch Cord
Place Of Origin:	Guangdong, China
Brand Name:	OEM
Cetifications:	RoHS, SGS, ISO
MOQ:	20PCS
Package:	100PCS/CTN
Sheath Color:	Yellow
Sheath:	PVC
Fiber Type:	Single Mode G657A1
Fiber Counts:	2 Cores
Application:	Fiber Optic Equipments
Certification:	Reach
Type:	Fiber Optics
Connection Structure:	Optical Fiber
Core:	2-144 Core
Brand:	OEM or Tw-Scie
Sheath Material:	ABS

Product Description

1M Simplex Fiber Patch Cord 2.0mm with PVC Sheath and SC/UPC Connector

Quick Details:
Type: ST/SC/FC/LC/MUJI...
Mode: SM/MM
Ferrule End-face: UPC, APC
Material: Plastic, ABS
Cable inside diameter: 0.9mm, 2.0mm, 3.0mm

Features:
Pluggable structure, easy to intensive-installation
Low insertion loss and high return loss

Applications:
Optical access network
Data processing networks
Fiber optic communication networks
CATV, LAN, WAN, Test &Measurement
Telecommunication networks

Specification:

Parameter		Single Mode			Multi Mode

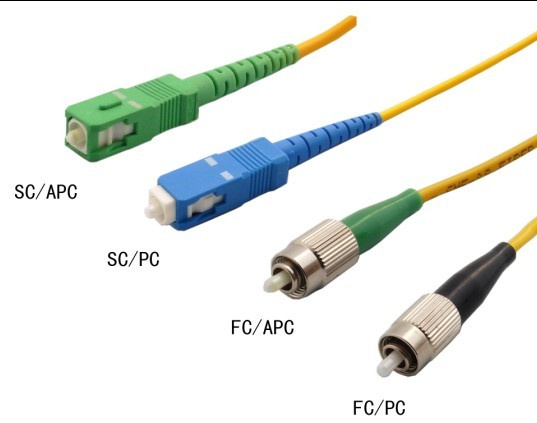

Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO, E2000
	Ferrule End-face	PC	UPC	APC	UPC
	Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB	≤0.3bB
	Return Loss	≥50dB	≥55dB	≥60dB	≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um			127um concentricity deviations:<=3um
	Suitable Fiber	9/125um			50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm		5~12mm	N/A
	Fiber Protrusion	≤50nm		≤100nm	N/A
	Fiber Under Cut	≤100nm		≤100nm	N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.2dB
	Salt Spray	≤0.1dB
	Drop	≤0.2dB(1.5M, 5 drops)
	Vibration	IL ≤0.2dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	> 1000 times
	Operating Temperature	-40°C ~ +85°C

Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)

Shipping:
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Tag: multimode fiber patch cord, fiber optic network cable

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
