1pair 3 to 1 T Branch Solar Panel Mc4 Wire Connector
| Price: |
US $ 0.6-0.68pairs |
| Min Order: |
200pairs |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Cable Coupler Combiners |
| Approvals: |
TUV Certification |
| Insulation Material: |
PPO |
| Rated Current: |
30A |
| Rated Voltage: |
1000V/1500V |
| Test Voltage: |
6kv(50Hz, 1min) |
| Contact Material: |
Copper, Tin Plated |
| Contact Resistance: |
5momega; |
| Degree Of Protection: |
IP67 |
| Gross Weight: |
22kg/Carton |
| Product Name: |
1pair 3 to 1 T Branch Solar Panel Mc4 Wire Connect |
Product Description

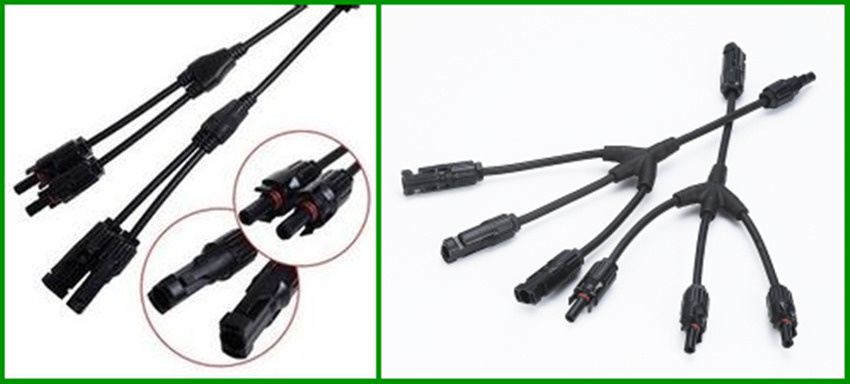

1pair 3 to 1 T Branch Solar Panel MC4 wire Connector
1pair 3 to 1 T Branch Solar Panel MC4 wire Connector

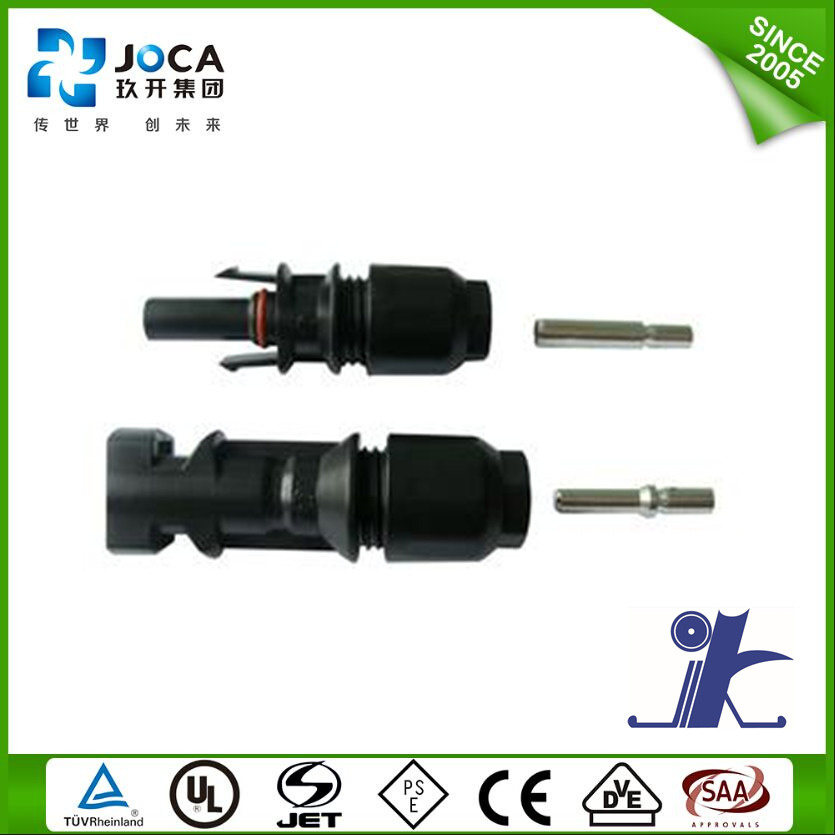

Product Description & Parameter[Application]MC4 solar PV connector for solar system.[Techniuque Specification]Technical Specification
Insulation material: PPO
Rated current: 30A
Rated voltage: 1500V
Test voltage: 6KV(50Hz,1Min)
Contact material: Copper, tin plated
Contact resistance: 5mΩ
Degree of protection: IP67
Safety class: II
Flame calss: UL94-V0
Insertion force: ≤50N
Withdrawal force: ≥50N
A temperature range: -40ºC ~ + 90ºC
Connector diameter: 2.5mm2,4 mm2,
Suitable cable: AWG14 / 12 / 10
[Advantages]•Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
•High mechanical endurance
•High current and voltage carrying:30A,1000DC
•Low transition resistance
•Innovative sealed,waterproof,dust resistance design:IP67
•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
•Approved by TUVPackaging & Shipping1000 pairs in a carton,Measure:35cm*40cm*48cm,Gross weight:22kg/carton
Or according to customer requirement.CertificationTUV CertificationRelated product1: All Kinds of Solar Connectors / Solar Cables / Criping Tools / MC4 Extension cable.2: Solar Cable3: Coaxial Cable4: Electrical Wire5: Elevator Cable6: Submersible Pump CableWhy Choose US1/ Quick Response --All inquiries on our products will be replied within 24 hours.
2/ Professional Quotation --All pricing will be made on customers' detailed specifications & requirements.
3/ OEM & ODM Service
--We can print your own brand on our cable printing with foot or meter marking.
--Make customized designs for stickers, drums, outer cartons, etc.
4/ Stable Quality --All materials and products passed restrict QC procedures, compliant with international standards.
5/ Fast Delivery --LCL orders, 10 Days after confirmation; FCL orders, 15 days after confirmation.
6/ Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.Company Information
Our Professional Team.
Shanghai Jiukai Wire & Cable Co.,Ltd is a company specialized in the production of high and low voltage cables and weak electronic current wires, integrating the R&D, manufacturing, sales and design into a whole. The company boasts most advanced production facility and complete testing equipment. And it has successfully passed the ISO9001:2000, CCC, CE, TUV, UL,PSE,S-JET etc Quality Management System Certifications.We take part in exhibitions around the world every year.
With the rapid development of science and technology and the increasingly wide application of information management, the company has made a heavy investment in building the computer management system and ERP management system together with office automatic system. So far the whole process of production, sales, design and development has been operated by computers.
The company, with building the top brand in the industry as its ultimate objective and honest operation as its guide, is committed to developing itself into a credible partner of other enterprises with its quality products and good after-sales service. It is committed to contributing its bit to the development and progress of the society and human beings as a whole.FAQQ: Are you trading company or manufacturer?
A: We are manufacturer with several factories.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 5-8 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Q:What is the turnover of the company?
A:Our turnover was 7 billion last year.
Q:What kind of certifications do you have?
A:Such as China CCC certificate,US UL certificate,European Union CE Certificate,German TUV,Quality system certification certificate ISO9001:2000,Japanese Standard PSE S-JET certificate and so on,
And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 " and so on.
Q: Does the company take relevant exhibition ?
A:Yes,of course!We have taken relevant exhibition in Australia,Japan, Thailand, the united Arab emirates,Mexico and so on.
Q:How long is the product's service life?
A: Very long service life more than 25 years at 90ºC.
Q:What are the product's characteristics?
A:1.UV,ozone and hydrolysis resistant
2.High temperature resistant,the materials do not metl or flow
3.Good cold flexibilityContact USIf there is any interest or question about 1pair 3 to 1 T Branch Solar Panel MC4 wire Connector, pls feel free to contact our sales manager as below.
Waiting for your inquiry ! Thank you very much !
...All the cables are certificated by CCC, and some are listed by UL, VDE, TUV, we look forard to more scale co-operation with Jiukai as their good quality items&competitive price..."
----Alex Jones, G. M of Saudi Cable Wholesaler
Jiukai holding group is a collection of science, industry and trade as one of the enterprise group. Group total registered capital of 250 million yuan, covers an area of 180000 square meters, construction area of 100000 square meters. Group have cables in today's domestic and foreign advanced equipment, more than 800 sets, the annual production capacity of 1.6 billion yuan, staff more than 600, national and over seas has nearly 30 offices or branches. Group core subsidiary Shanghai jiukai wire and cable Co., Ltd., Jiukai communication technology (Shanghai) Co., Ltd., Wuxi qunxing wire cable Co., Ltd.
Shanghai Jiukai Wire & Cable Co., Ltd is a professional manufacturer of wires & cables, including Electrical Cable, Low Voltage/Medium Voltage/ High Voltage Power Cable, Speaker Cables, Telephone Cable, RF Cable, Solar Cable, Building Wire, UL approved Cable, CE approved Cable, Welding Cable, Submersible Pump Cable. Conductor materials are varied from tinned copper, bare copper, CCA, CCS, aluminium. Insulation & jacket materials are available for PVC, PE, XLPE, Rubber, silicon. Rated voltages are for 300V below, 300/300V, 300/500V, 45/750V, 600/1000V, 3.6/6KV, 10KV, 26/36KV and 36KV above.
