| Prod Model: |
DF-E801-W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Farthest Distance: |
20km Between Olt and ONU |
| Optical Interface: |
Sc/Upc Connector |
| Type: |
Wireless |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
GS |
| Condition: |
New |

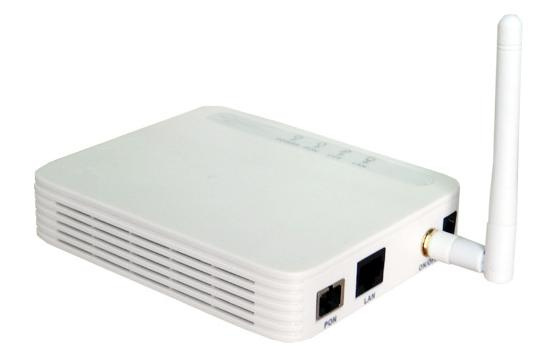

Product Description
DF-E801-W
1*EPON(1490nm Rx,1310nm Tx,20Km,SC),1*10/100/1000Base-T,1*WIFI,12V, Power supply
Description:
ONU terminal devices are designed for fulfilling FTTx and triple play service demand of fixed network operator or cable operators. It was developed by TAKFLY independently. This box is based on the stable and mature Gigabit EPON technology, which has high ratio of performance to price, and the technology of Layer 2/3,and high quality WIFI as well. It is highly reliable and easy to maintain, with guaranteed QoS for different service. And it is fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom.
Feature:
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
Completely compatible with EPON international standard IEEE802.3ah/802.3-2005
Support China Telecom EPON CTC2.1 standard and expand OAM
Support triple churning encryption requested by China Telecom
Support DBA reporting mechanism requested by China Telecom
Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
Support the remote upgrade and download
Support status detection and fault report
Support to save configured parameters if power down
Support to configure the work mode at the user port
Support MDI-MDIX automatic-detection at the user port.
Support data encryption and decryption
Support access authentication based on serial number
Support access authentication based on MAC address
Support 802.1Q VLAN
Support rich QinQ VLAN functions and IGMP Snooping
Support traffic rule to modify the related priority.
Support IEEE802.11n 2T2R WiFi function
Support to restore the factory settings
Support the remote reset and reboot
Support dying gasp outage alarm
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Applications:
Data services
Voice services
Video services
Monitoring service
FTTH
Performance Specification:
| Technical items | Description |
| Upstream PON interface | 1 EPON interface, SC single-mode/single-fibre, symmetric 1.25 Gbps ,1WIFI |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Optical output power | -1~+4dBm |
| Receiving sensitivity | <-25dBm |
| Farthest distance | 20km between OLT and ONU |
| Optical interface | SC/UPC connector |
| Downstream LAN interface | 10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors,1*WIFI |
| Layer 2 switch | Support IEEE802.1Q VLAN |
| Support speed rate inhibition of broadcast packet at ONU |
| IEEE 802.3X flow control |
| Support 16 multicast addresses at each LAN port |
| WIFI | Integrated 802.11b/g/n |
| Support WEP and WPA/WPA2 security protocols |
| Management maintenance | Support the remote management from OLT and ONU |
| Support SNTP and Log |
| Upgrade software remotely |
| Support to save configuration parameters when power down |
| Indicators | 5 indicators, for status of power supply, PON port and 1 Giga-Ethernet port. |
| DC power supply | +12V, external AC-DC power adaptor |
| Chipset | cortina chipset |
| Power switch | 1 |
| Power consumption | ≤2.5W |
| Operating condition | Operating temp: -5~+55ºC
Operating humidity:10~90%(non-condensed) |
| Storing condition | Storing temp: -30~+60ºC
Storing humidity:10~90%(non-condensed) |
| Dimension | 120mm*100mm*30mm(length*width*height) |
| Net weight | 0.24Kg |
Package Dimension:
Here is package box dimension of GEPON ONU for your reference.
size for GEPON ONU: 198x136x37mm
Ordering Information:
| Product name | Product description |
| DF-E801-W | 1*EPON(1490nm Rx,1310nm Tx,20Km,SC),1*10/100/1000Base-T,1*WIFI,12V, Power supply |
