| Prod Model: |
PN-001 |
| Color: |
Aqua |
| Housing: |
Plastic |
| Cable Type: |
Multimode |
| Fiber Type: |
Multimode, OM3 |
| Polishing: |
Ultra PC |
| Type: |
Single-mode Fiber |
| Material Shape: |
Round Wire |
| Allowed Tensile Strength: |
1000N<10000N |
| Certification: |
CE, RoHS, ISO9001, UL |
| Sheath Material: |
Plastic Housing |
| Structure: |
LC |
| Number Of Cores: |
Single-Core |
| Application: |
Communication |
| Connector Type: |
LC |
Product Description
Aqua 2.0mm 3.0mm Fiber Optic LC Multimode OM3 Epoxy ConnectorsTechnical Information:LC connector is the most widely used fiber optic connector in telecommunication industry. Its threaded coupling design accommodates a reliable and durable connection to optical network, especially suitable for advanced fiber optic systems requiring exceptional stability and low reflections. Those one-piece design models provide extremely fast assembly. Different boot sizes, including 3.0mm, 2.0mm or 0.9mm, are available. Multi-pieces connectors are suitable for factory assembly. Any parts of the LC connectors can be sold separately.
Feature:Precision low-loss factory polished connector with integral splice and fiber clamp;
Simple and fast connector termination, with no adhesives or field polishing required;
Provisions for visual light source verification to achieve optimal splice transmission;
Fibers supported: OM1, OM2, OM3, OM4, SM;
Wide operating temperature range for thermally stable optical performance.
Application:√ 10-GbE multimode and single-mode optical networks;
√ Intra-building backbone and horizontal fiber interconnections;
√ Inter-building OSP entrance terminations;
√ Data Center and WAN main cross-connect terminations;
√ Quick deployment remote data links;
√ Fiber to the Subscriber (FTTX);
√ Low reflection angle polish single-mode applications.
Standard Compliance:√ TIA-568-C.3 performance requirements;
√ Telcordia GR-326 end face geometry;
√ Telcordia GR-326 service life tests;
√ IEC61754-20 and TIA-604-10 intermateability.
Data Sheet: | Standards requirements | TIA/EIA-604 FOCIS-10 compatible; exceeds
TIA/EIA-568-B.3 requirements |
| Fiber compatibility | 62.5/125μm OM1, 50/125μm OM2,10Gig 50/125μm laser
optimized OM3/OM4 and 9/125μm OS1 |
| Fiber cable type | 900μm tight-buffered fiber recommended
250μm coated fiber, by using F250BT-C 250 micron
fiber build-up tube kit or FO6CB or FO12CB fan-out kit |
| Jacketed cable size | 1.6mm - 2.0mm jacketed cable |
| Ferrule type | Zirconia Ceramic |
| Insertion loss | 0.1dB average (Multimode and Single-mode) |
| Return loss | >20dB (Multimode), >40dB (Single-mode) |
Housing Colors & Fiber Type: | Aqua | 50/125 10G MM-OM3 |
| Black | 50/125 MM-OM2 |
| Beige | 62.5/125 MM-OM1 |
| Blue | 9/125 UPC SM |
| Green | 9/125 APC SM |
International Authoritative Certification:Compliance with the international ISO9001, CE, FCC, RoHS standards. PUNO strict implementation of standardized management and control of the design, development, production, installation and service.

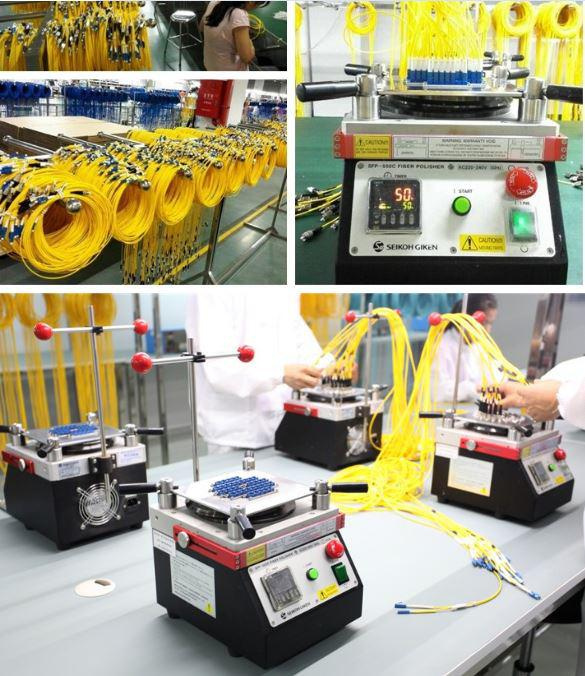

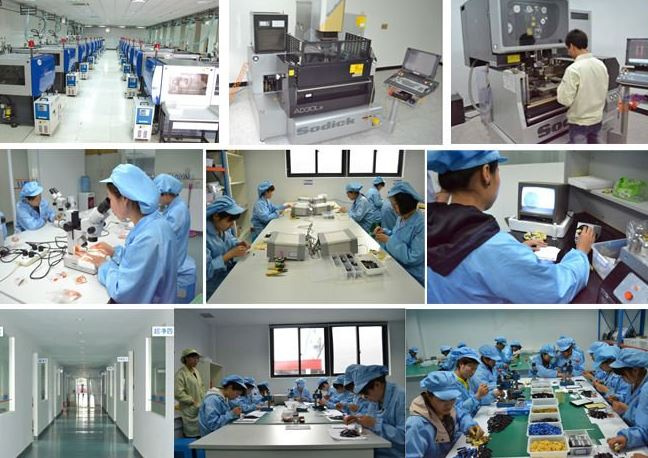

Workshop Overviews:Among the total workshop area of more than 12,000 square meters, dust-free workshop room accupies 500 square meters while dust-proof room occupies 6,500 square meters.
Payment & Shipping Terms: | Minimum Order Quantity | 1 Piece MOQ On Request |
| Packaging Details | 10 or 20 PCS / Plastic Tray, 1 PC / Gift Box |
| Delivery Time | Delivery In 7 - 15 Business Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Pieces Per Monthly |
Ordering Information - Fiber Optical Connector: | Fiber Type | 5-50/125; 6-62.5/125; 9-9/125; O-OM3 |
| Connector Type | F-FC S-SC T-ST L-LC M-MU |
| Polish Type | P-PC U-UPC A-APC |
| Operating Wavelength | 1-850nm; 2-1310nm; 3-1550nm; 4-1310/1550nm; 5- 1310/1490nm |
