2.0mm Board Thick Multilayer PCB 4 Layer with Green Soldermask
| Price: |
US $ 0.54/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-213-V2.13 |
| Finished Boardthickness: |
2.0mm |
| Copper Finishthickness: |
35 Microns |
| Surface Finish: |
Gold Plated (Enig) |
| Soldermask Color: |
Green |
| Legend Color: |
White |
| Via's: |
Tenting on One Side |
| Electrical Test: |
Yes |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

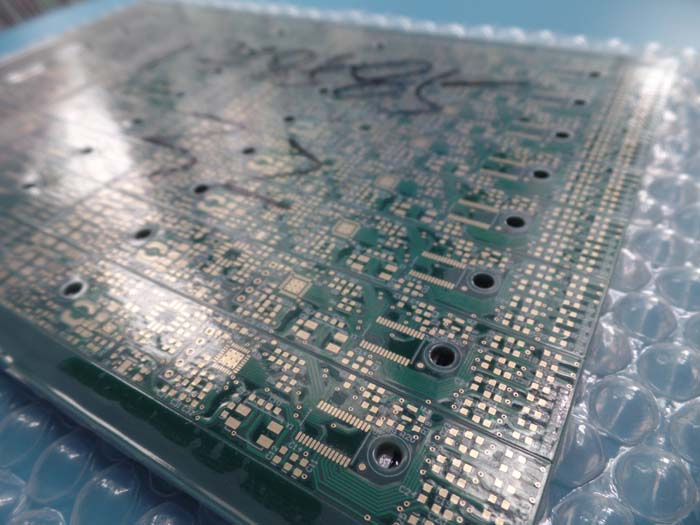

2.0mm Thick Multilayer PCB with tenting via on one side and Immersion Gold in automobile
electronics
Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 4 layer board at 2.0mm thick. The
base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012

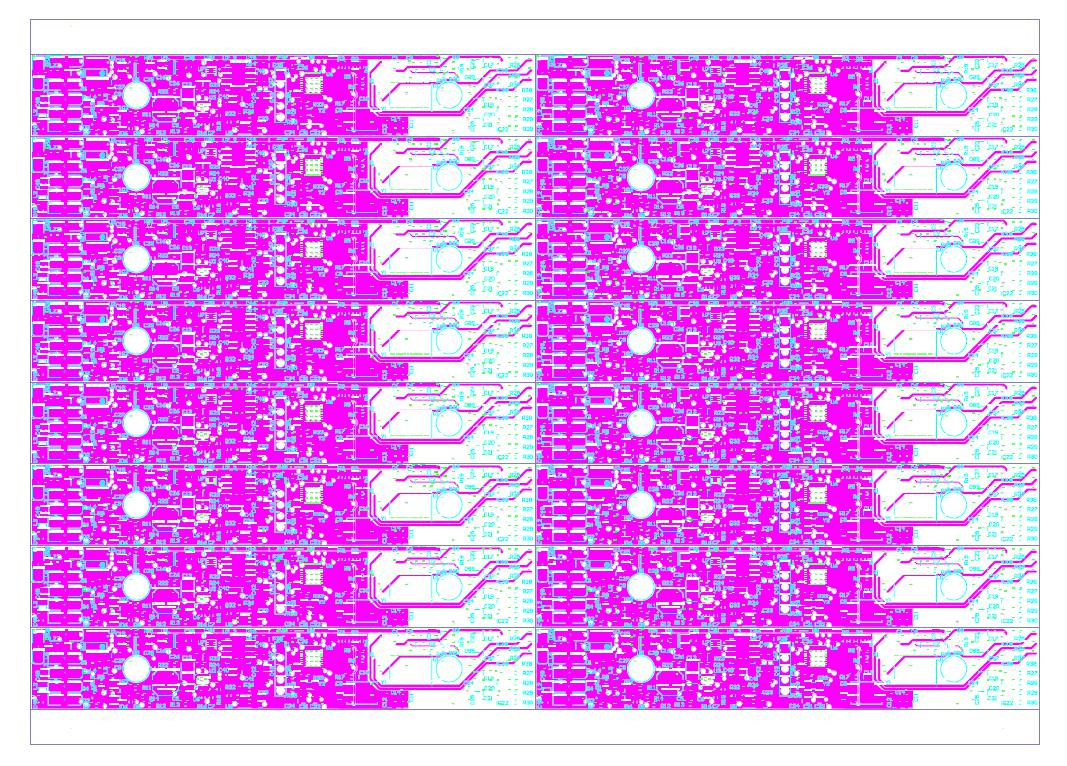

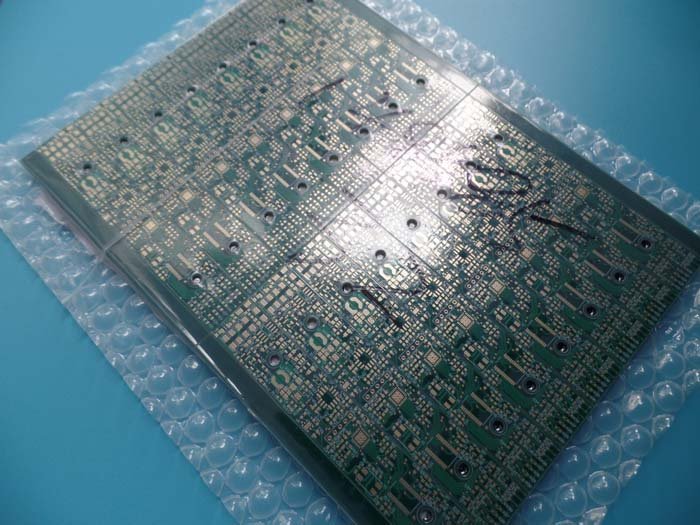

Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.PCB Panel 16up(234mm x 168mm=16up (9.213" x 6.614"=16up)
PCB basic specifications| Boards per Panel: | 16 |
| Single PCB Size: | 117mm x 19mm |
| Number of Layers: | 4 |
| PCB Material type: | FR4 |
| Finished BoardThickness: | 2.0mm |
| Copper FinishThickness: | 35 microns |
| Surface Finish: | Gold Plated (ENIG) |
| Electrical Test: | Yes |
| Via's: | Tenting on one side |
| Soldermask: | Yes - Green |
| Silkscreen: | Yes - White |
| Layer Stackup: | Layer 1 - Top Layer
Layer 2 - Internal Plane 1
Layer 3 - Mid-Layer1
Layer 4 - Bottom Layer |

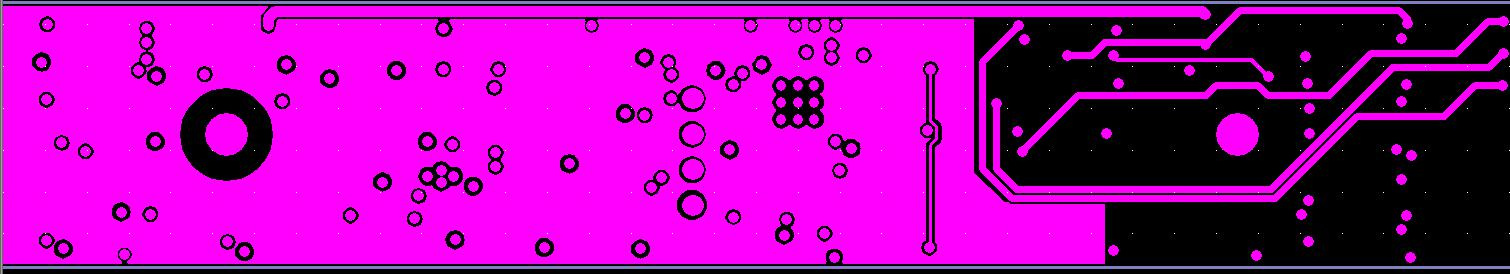

Inner layer 1

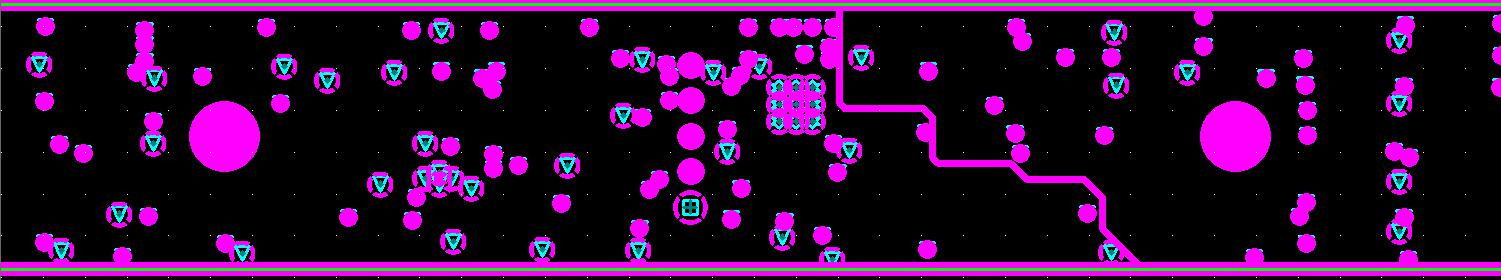

Inner layer 2
PCB services
Prototypes, small run batches, volume production
Advantages
1) No minimum order quantity and low cost sample.
2) Save time: Market requires the products updating quickly. Bicheng PCB always works fast and
flexible to save the time of production from prototype to standard production, quick turn-around or
scheduled deliveries.
3) 100% tests inclusive of electrical test and AOI inspection.High voltage test, Impedance control
test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test
and ionic contamination test etc.
4) ISO certified PCB manufacturing factory.
Learn PCB and Buy PCB-----4 Layer PCB
4-layer PCB consists of 4 copper layers together with 2 prepreg and 1 epoxy core. This structure
is widely used in the application of IP codec, automobile electronics, computer and peripherals,
servers and networking etc.
Bicheng provide 3 types base material of 4-layer PCB's.
(1) FR-4 material (The most common used today)
Normal Tg >135 and High Tg>170
Material Brand: ITEQ, SHENGYI
(2) High frequency material
RO4350B, RO4003C
Prepreg RO4450B
(3) Hybrid material
RO4350B+FR4+RO4350B
RO4350B+FR4 support
RO4003C+FR4+RO4003C
