2.0mm Board Thickneess Multilayer PCB 12layer with BGA Circuit Board
| Price: |
US $ 0.95/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-197-V1.97 |
| Final Foil External: |
1oz |
| Final Height Of PCB: |
1.92mm |
| Surface Finish: |
Electroless Nickel Immersion Gold (Enig) |
| Solder Mask Color: |
Green, Psr-2000gt600d, Taiyo Supplied. |
| Colour Of Component Legend: |
White, Ijr-4000 MW300, Taiyo Supplied. |
| Minimum Trace And Space: |
4mil/5mil |
| Minimum / Maximum Holes: |
0.25/5.0mm |
| Via: |
Vin in Pad Under BGA Package |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

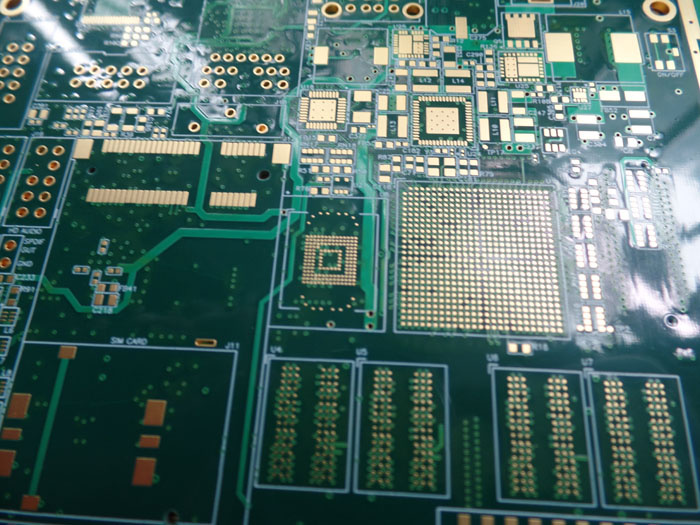

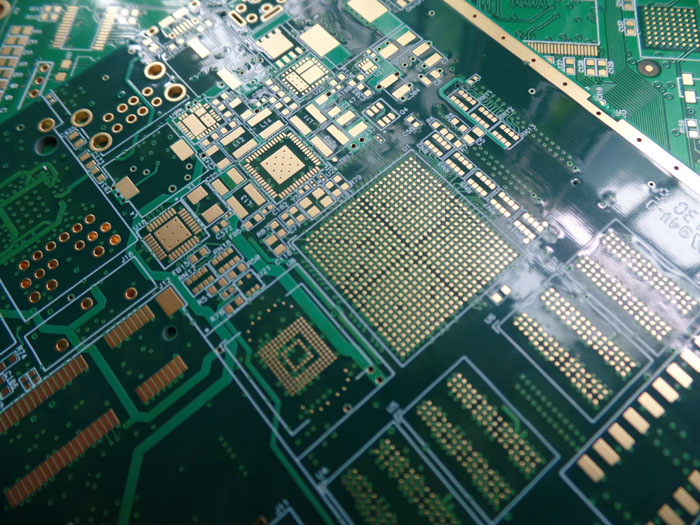

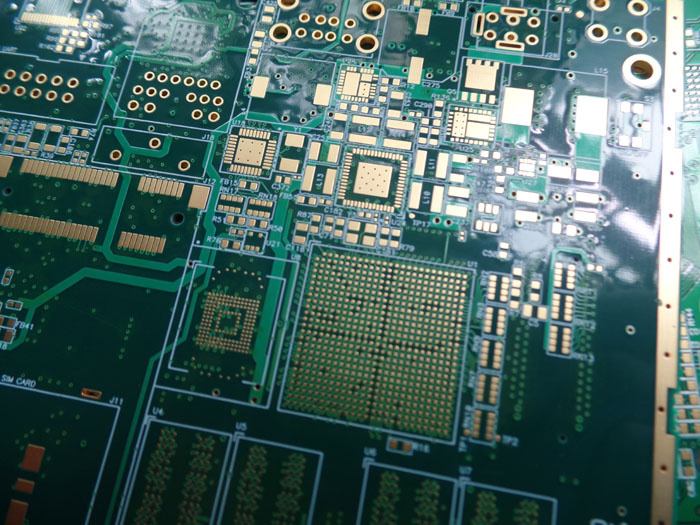

Ball grid array (BGA) Printed Cirucit Board Using FR-4 2.0mm Thick With Via In Pad Applied
In Programmable Logic Controller
Commodity Introduction
This is a type of FR-4 PCB for the application of Programmable Logic Controller. It's a 12 layer
board at 1.92mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| PCB SIZE | 98 x 123mm=1PCS=1design |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 12 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- TOP 17um(1oz)+plate 25um |
| 130 um prepreg 1080 x 2 |
| copper ------- L02 35um(1oz) |
| 150um core FR-4 |
| copper ------- L03 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L04 35um(1oz) |
| 150um core FR-4 |
| copper ------- L05 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L06 35um(1oz) |
| 150um core FR-4 |
| copper ------- L07 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L08 35um(1oz) |
| 150um core FR-4 |
| copper ------- L09 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L10 35um(1oz) |
| 150um core FR-4 |
| copper ------- L11 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- BOT 17um(0.5oz)+plate 25um |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/5mil |
| Minimum / Maximum Holes: | 0.25/5.0mm |
| Number of Different Holes: | 17 |
| Number of Drill Holes: | 2596 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140, TG>135, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.92mm ±10% |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel Immersion Gold (ENIG)( 2 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented.
Vin in pad under BGA package |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Satellite Communication
Repeater Wifi
Gps Tracker For Kids
Bluetooth Usb Adapter
Car Tracking Device
Bluetooth Adapter For PC |
TYPE OF ARTWORK TO
BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
