2.0mm or 3.0mm Sc Sm Simplex Duplex Fiber Optic Patch Cord

Name: 2.0mm or 3.0mm Sc Sm Simplex Duplex Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 807771545
Availability: InStock
Rating: 4.6 (23 reviews)

Price:	US $ 0.5/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Patch Cord
Place Of Origin:	China (Mainland)
Brand Name:	Tw-Scie or OEM
Model Number:	2.0 or 3.0mm Patch Cord
Installation:	Indoor
Brand Of Fiber:	Customized
Loose Tube:	PBT
Waterblocking Material:	Water Blocking Tape
Outer Sheath Material:	MDPE / HDPE / LSZH
Outer Sheath Color:	Black
Armour Material:	Corrugated Steel Tape
Application:	Communication
Certification:	ISO9001
Type:	Fiber Optics
Connection Structure:	Patch Cord
Sheath Material:	LSZH

Product Description

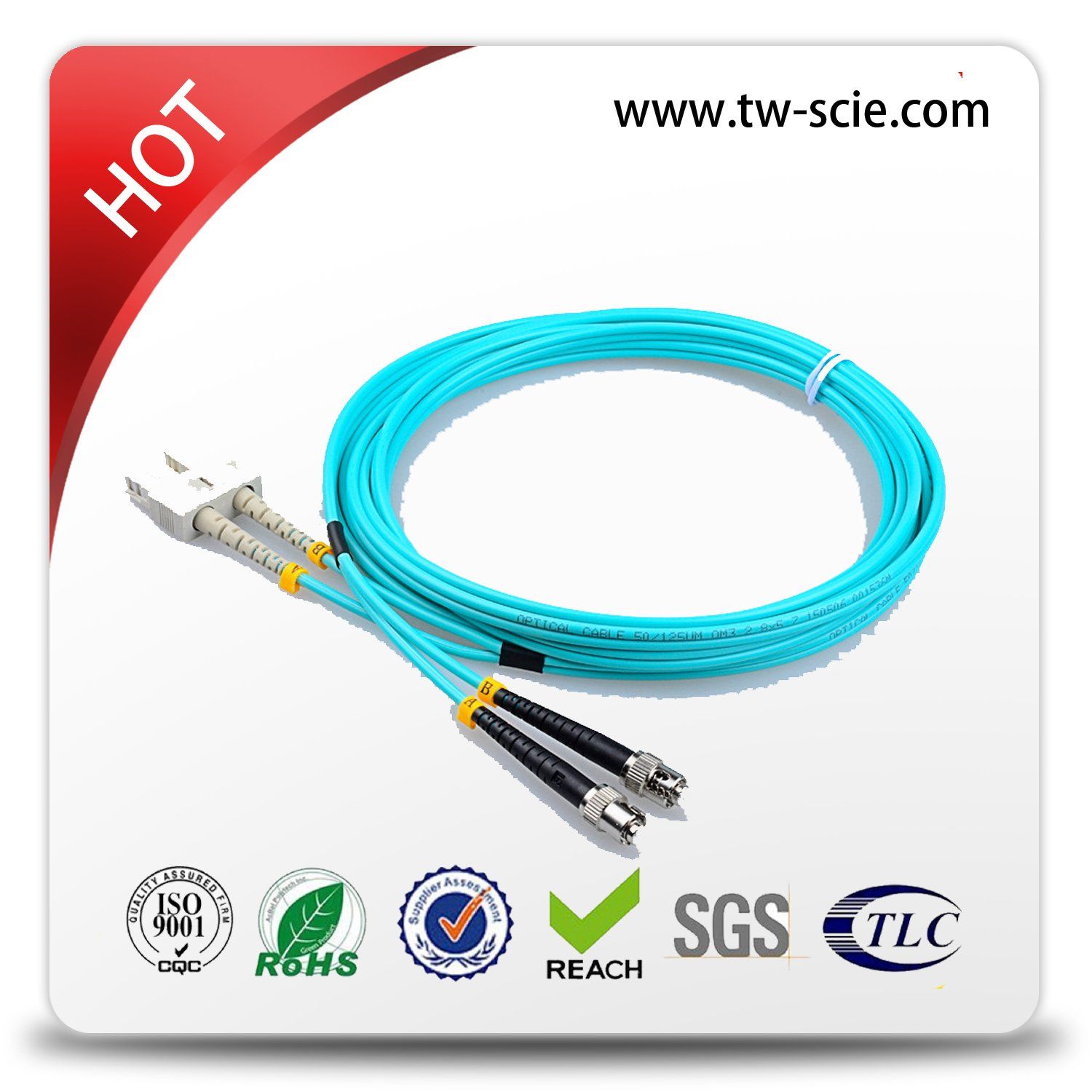

2.0MM or 3.0MM SC SM Simplex Duplex Fiber Optic Patch Cord

Basic Info

SC/UPC MM DX fiber patch cord
Multi-mode Fiber
Round Wire
100N<1000N
RoHS, UL, ISO9001
PVC
2.0mm or 3.0mm or 1.6mm or 2.8mm
Singlemode or Multimode
Less Than 0.3dB
with a.B Ring or 1.2 Ring
TTI Fiber
Communication
SC
>1000(N/100mm)
Double Core
OEM
12 Colors Boots
3m,5m Any Length Is Ok
Simplex or Duplex or 6 -144 Fiber Cores
with Duplex Clips or Not
Upc, PC or APC
ROHS UL CE

Product Description

Optical Fiber Optic Cable/Patch Cord, indoor cable,SC/UPC-SC/UPC multi-mode duplex, 1.6mm/2.0mm/3.0mm, with SC Optical Connector,China Factory made, OEM price fiber optic patch cords. Made in China, accept small order, supply free samples.

Fiber optical patch cord Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
PC/UPC/APC polishing
Fiber cable diameter: 0.9, 2.0, and 3.0mm
Fiber optic cable single mode or multi mode is available
Fiber simplex or duplex is available
10G fiber or LSZH cable is available
Excellent changeability and repeatability
Tensile strength: 10N
Operating temperature range: -40 to 80° C
Storage temperature range: -40 to 80° C
Color of cable: Yellow (SM), Orange (MM), and Aqua (OM3),12 cable colors is available

Our service:

Any inquiries or questions will be replied within 24 hours.
Professional manufacture with 10 years production experience. Welcome to visit our website:www.ttifiber.com
China factory OEM/ODM available
High quality, reasonable& competitive price, fast lead time
After-sale service: All the products will have been 100% full test before shipping, also with 2 years warranty.
Fast delivery: samples order within 1 day, and 3-7 days for bulk orders.
Payment: You can pay us via: T/T, Western Union, Paypal, or others.
Shipping: By express: UPS,DHL,FexEx,TNT,EMS…;By air; By sea; Or you also can choose your own shipping forwarder.

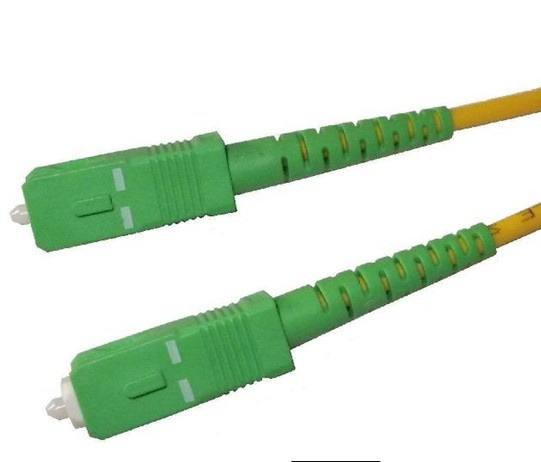

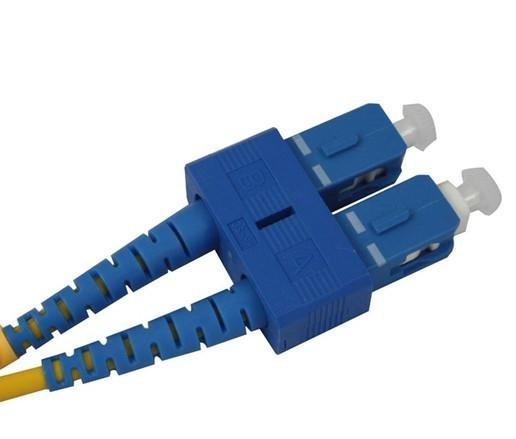

Sc Multimode Om1 62.5/125um Duplex Fiber Optic Patch Cord

Spec.	SC fiber optic patch cord/fiber optic cable
Insertion loss	Less than 0.5dB
Return loss	MM more than 35dB
	SM more than 55dB
	APC more than 60dB
Repeatability	Less than 0.2dB
Changeability	Less than 0.1dB
Operting termperature	-40 to 80° C
Storage temperature	-40 to 80° C
Tensile strength	100N
Min. bending radius	35mm
Length	Customized
