2.0mm Thick Electronics PCB Board Immersion Gold Circuit Board Laminates
| Price: |
US $ 0.62/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-439-V4.39 |
| Outer Copper Foil: |
42.81 Um (1.22 Oz) |
| Board Thickness: |
2.0mm |
| Surface Treament: |
Immersion Gold |
| Solder Mask: |
Green |
| Legend Color: |
White |
| Min Line Width (Mil): |
7.2 Mil |
| Min Line Spacing (Mil): |
4.8 Mil |
| Electrical Test: |
100% PCB Passed |
| Thermal Shock Test: |
Pass, No Delamination, No Blistering. |
| Solderability Test: |
Pass, 5 Seconds Wetting Area Least 95% |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

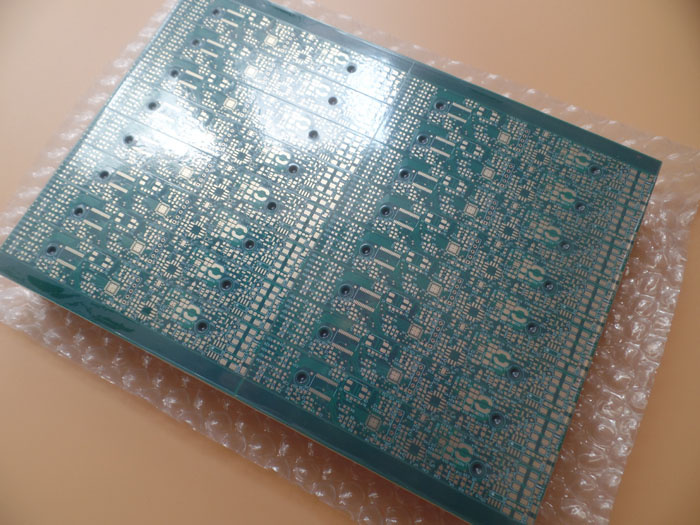

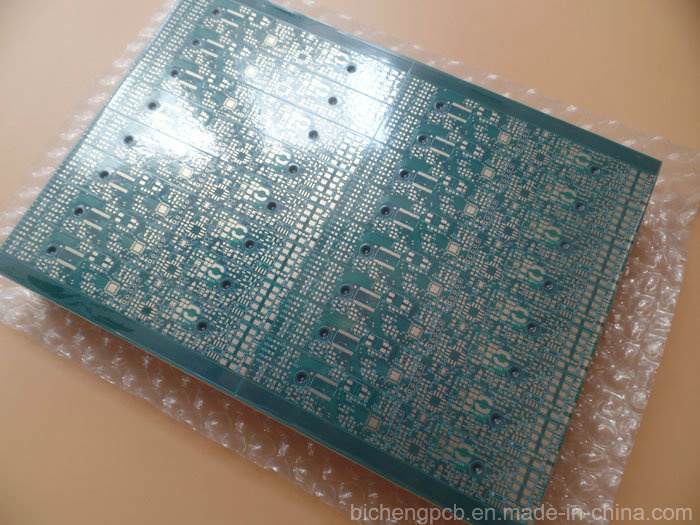

2.0mm thick electronics PCB 4 Layer Immersion Gold circuit board
Commodity Introduction
This is a type of 4 Layer Immersion gold PCB board at 2.0mm thick for the application of Wireless
Booster. The base laminate is from ITEQ Tg150 FR-4, Green solder mask from Taiyo and White

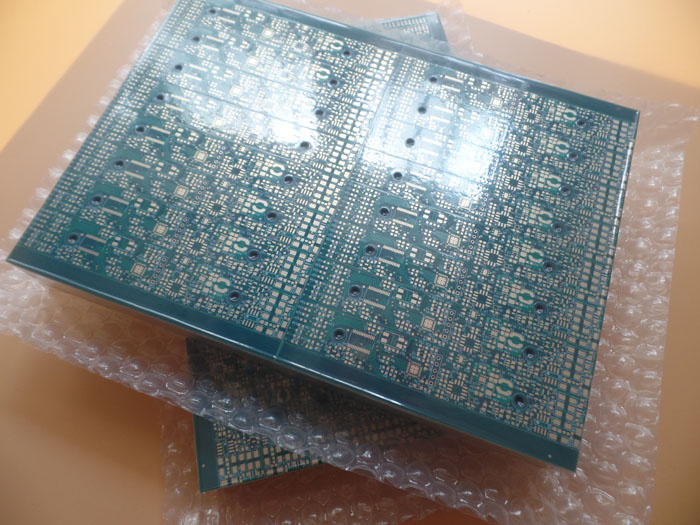

silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20
panel boards are packed separately.
Parameters & Data Sheet| Number of Layers | 4 |
| Board Type | Multilayer PCB |
| Board Thickness | 2.05-2.12 mm |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 150ºC |
| |
| PTH Cu thickness | ≥20um (See hole wall details) |
| Inner Iayer Cu thicknes | 35 um (1oz) |
| Surface Cu thickness | 42.81 um (1.22oz) |
| |
| Solder Mask Type and Model No. | LPSM, PSR-2000GT600D |
| Solder Mask Supplier | TAIYO |
| Solder Mask Colour | Green |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 13um |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | Taiyo |
| Color of Silkscreen | White |
| Number of Silkscreen | 2 |
| |
| Mininum Trace (mil) | 7.2 mil |
| Minimum Gap(mil) | 4.8 mil |
| |
| Surface Finish | Immersion Gold |
| RoHS Required | Yes |
| Warpage | 0.54% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds
Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Microsection Hole Wall (um)| Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 25.689 | 24.489 | 24.549 | 26.189 | 25.469 | 25.099 | 22.069 |
| 2 | 26.103 | 24.903 | 24.963 | 26.603 | 25.883 | 25.513 | 25.102 |
| 3 | 25.721 | 24.521 | 24.581 | 26.221 | 25.501 | 25.131 | 21.668 |
Outline dimension Unit: mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 234.00 | ±0.15 | 233.89 | 233.92 | 233.96 | 234.07 |
| 2 | 168.00 | ±0.15 | 167.89 | 168.08 | 167.94 | 167.94 |
Hole Size and Slot Dimension (mm)| NO. | Requerment Dimension (tolerance) | PTH/NPT | Actual dimension |
| 1 | 0.900 | ±0.076 | Y | 0.900 | 0.875 | 0.925 | 0.900 |
| 2 | 4.000 | ±0.05 | N | 4.000 | 3.975 | 4.025 | 4.000 |
Learn PCB and Buy PCB --- HASL
Hot air solder leveling is for short HASL, which is a common type of surface finish used on printed
circuit boards (PCBs). We dipped the PCBs (with exposed copper surfaces) into a bath of molten
solder, then remove the excess solder on PCB surface and in the holes by strong hot air(which we
call it HASL machine) to get a glossy layer of coating.
One is alloy of tin and lead. The temperature of smelting furnace for Tin/Led is about 240ºC.
Another one is pure tin, because lead is harmful to human body, EU has forbidden using tin/lead.
So the popular is pure tin or HASL Lead free. The temperature of smelting furnace for pure tin is
highly at 300ºC, and plus the operating environment, high temperature and high etching are great
harm on PCB itself. Due to its hot air generated, HASL has low planarity. It makes this surface
finish unsuitable for use with fine pitch components. It has hidden danger of board warp or twist
under high thermal stress. To avoid this disadvantages, high Tg material and PP are took into
consideration for some PCB user. But it also has excellent wetting during component soldering
and it can avoid copper corrosion. So it is also mostly used in single sided PCB, Double sided
PCB and some multilayer PCB.

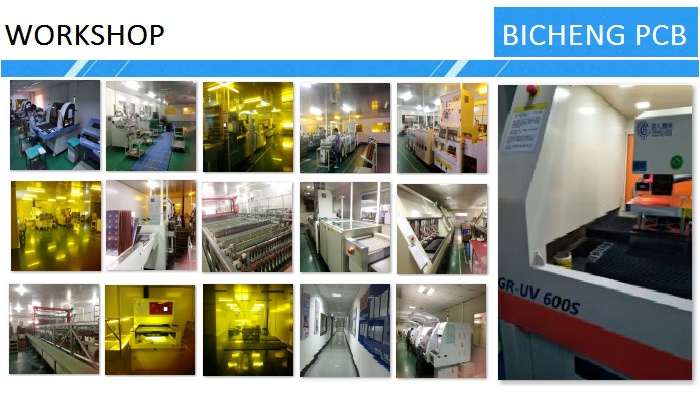

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
