2-144c Non-Metallic Fiber Optic Cable (GYFTY)

Name: 2-144c Non-Metallic Fiber Optic Cable (GYFTY)
Brand: all-electronics-online.com
SKU: 753070305
Availability: InStock
Rating: 4.3 (42 reviews)

Price:	US $ 10/Meter
Trade Terms:	FOB
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Prod Model:

GYFTY

Markets:

North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Outer Sheath Color:

Black

Central Stranding Member:

Steel Wire or FRP

Installation Style:

Aerial

Waterblocking Material:

Water Blocking Tape or Filling Compound

Brand Name Of Fiber:

Corning ,Yofc,Draka,Fujikura or as Your Requiermt

Second Armour Material:

Corrugated Aluminium Tape

Application:

Communication

Type:

Single-mode Fiber

Certification:

ISO9001

8-144 Core Aerial or Duct All Dielectric GYFTY Optical Fiber Cable

Basic Info

Model NO.: GYFTY(4-144 Cores)
Type: Singlemode Fiber or Multimode Fiber
Material Shape: Glass Fiber
Certification: RoHS, UL, CE, ISO9001
Sheath Material: Black PE
Fiber Cores: According to Requirement
Specification: RoHS
HS Code: 85447000

Application: Communication
Connection Structure: Fiber Optic
Core: 4-144 Cores
Brand: HNK or OEM
Length: According to Requirement
Trademark: HNK or OEM
Origin: Shenzhen, China

Product Description

The cable is constructed with FRP Central Strength Member, two layer tubes with Jelly Compound for
double water blocking, Aramid yarn strength member for better tensile strength and rodent protection,
PVC outer Jacket with metric print. Non-metallic structure and good electro-magnetic resistance
makes it a good choice for use in High voltage and thunder prone areas. The cable is suitable for indoor,
outdoor and long distance communication system. The cable has options of LSZH, PE & Plenum outer
jacket as per customer request.

The cable has excellent UV-stabilized and water blocking performance for outdoor duct application
(PE outer jacket) or Indoor / Outdoor application (LSZH outer jacket). The cable combines robust
characteristics of outdoor cable and exibility of indoor cable. By installing this cable, costly splice
at building entry can be avoided and cable can be routed from outside plant to telecommunication
closets or main distribution frames (MDF) through the riser of building and eliminate "50 foot rule"
for outdoor cables. The cable is mostly used in LAN application for intra building backbone and
interconnections (Campus LAN).

Complied With Or Exceeds Standard
.  ITU-T G652.D                                      .  ITU-T G651.1 OM1 OM2 OM3 OM4
.  ITU-T G657.A                                      .  IEC60793-2-10  type A1a.1/A1b OM1/OM2
.  IEC60793-2-10  type A1a.2 OM3        .  IEC60793-2-10  type A1a.3 OM4
.  ISO/IEC 11801 , ISO/IEC 24702         .  IEEE 802.3z Gigabit Ethernet
.  ANSI/TIA/EIA 568C.3                          .  ROHS Compliant Directive 2011/65/EU(ROHS2.0)

Mechanical & Environmental Characteristics

ITEM	Value
Max. Tensile Load (Short Term)	3000N
Max. Tensile Load (Long Term)	1000N
Max. Crush Load (Short Term)	2000N/100mm
Max Crush Load (Long Term)	1000N/100mm
UL Fire Rated	OFNR
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Sheath Material	Standard: PE. Optional: LSZH or other

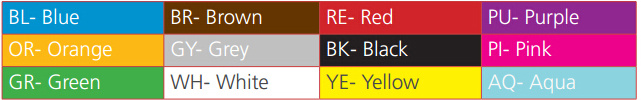

ANSI/TIA/EIA-598-B Standard Fiber Color Code

Fiber Number Fiber Color Fiber Number Fiber Color

Fiber 1 Blue Fiber 7 Red

Fiber 2 Orange Fiber 8 Black

Fiber 3 Green Fiber 9 Yellow

Fiber 4 Brown Fiber 10 Violet

Fiber 5 Slate Fiber 11 Rose

Fiber 6 White Fiber 12 Aqua

Fiber 13 and higher The color code is repeated with added black stripe or dash
Note: Fiber Tube color will be followed with same order.

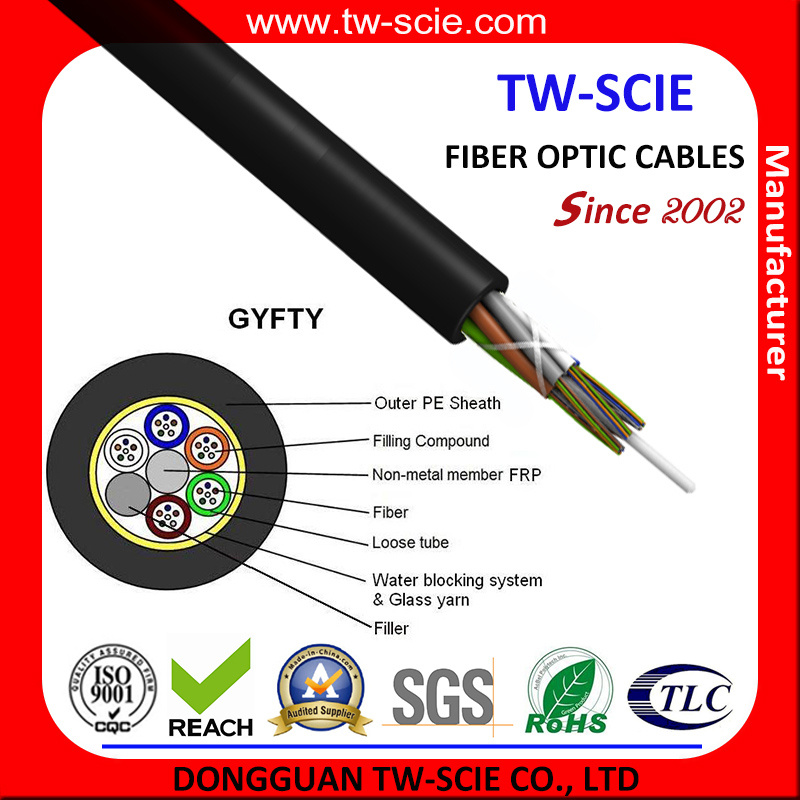

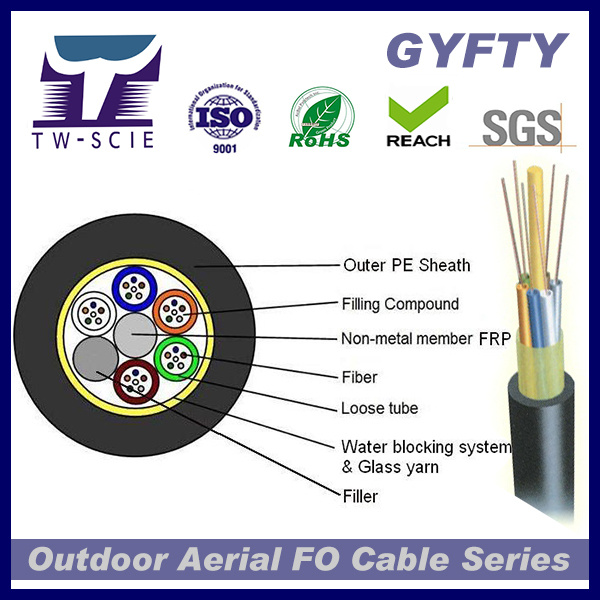

4-144 Cores Dielectric Loose Tube Unarmoured in/out Fiber Optic Cable GYFTY

4-144 Cores Dielectric Loose Tube Unarmoured in/out Fiber Optic Cable GYFTY

Optical Characteristics
Of all the differences between multimode & singlemode fiber, the most fundamental differences are the
size of the fiber's core and the associated attenuation or loss and bandwidth of the fiber. The smaller the
core diameter, the higher the fiber's bandwidth and the lower the attenuation (loss in dB per kilometer).
The fiber's attenuation and bandwidth are also dependent on wavelength.

Singlemode was for high-speed longdistance transmission and multimode (in either the 50 µm or 62.5 µm
core diameters) was used for lower speed short distance applications. Multimode 50 µm fiber had a lower
cost and higher modal bandwidth than multimode 62.5 µm core fiber. Bandwidth is a measurement of the
data carrying capacity of the fiber. A higher bandwidth fiber carries more data. See table below.

Fiber Type	Max. Attenuation (dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Min.Gigabit Ethernet Link Distance (m)
	Max. Attenuation (dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nnm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-

Ordering Information
Part Number: OC-XX-ABCDCL

Ordering Guide

XX	A	B	C	D	CL
Cable Type	Jacket	Fiber/Tube	Fiber Count	Fiber Type(FXX)	Jacket Color(CL)
GYFTY	1=PVC 2=LSZH 3=PE	01=01 Fiber/T 02=02 Fiber/T ... 11=11 Fiber/T 12=12 Fiber/T	No. Of Fiber 004F,048F	OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A	As noted in Color code chart
