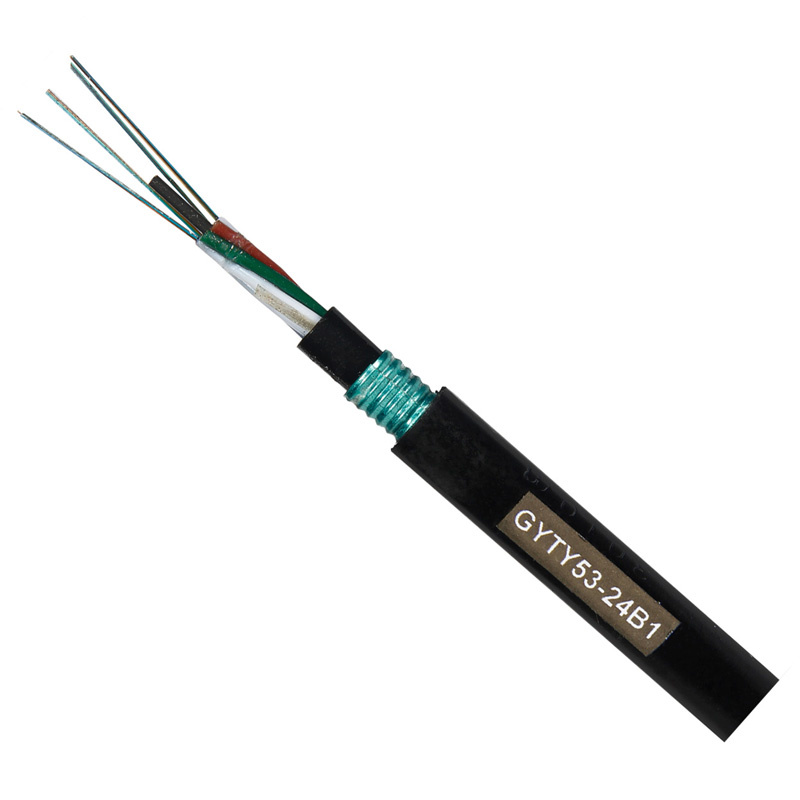

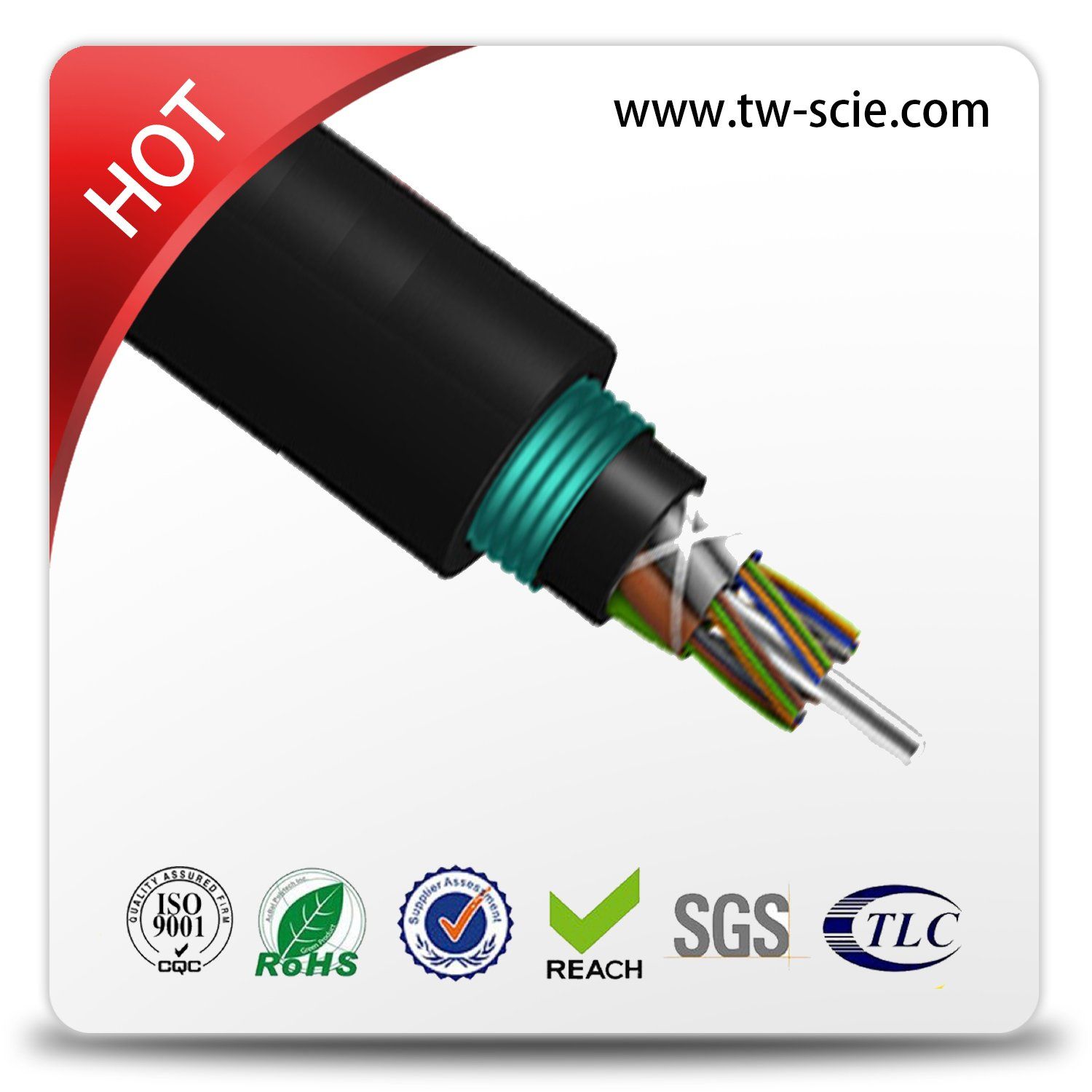

2-288 Core Direct Burial Single Mode Fiber Optic Cable

Prod Model:	Single Mode Fiber Optic Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	GYTY53 Single Mode Fiber Optic Cable
Jacket Material:	MDPE /HDPE/ LSZH
Fiber Account:	2-288 Core
Armour Material:	Steel Armour
Brand Name Of Fiber:	Corning, Yofc, Draka,..as Requiremen
Loose Tube Material& Filling Material:	PBT&Jerry
Color Of Loose Tube:	Blue,Orange, Green, Brown etc
Central Strength Member:	Reinforced Messenger Wire
Application:	Fiber Optic Cable
Certification:	Single Mode Fiber Optic Cable
Type:	Single Mode Fiber Optic Cable
Connection Structure:	Single Mode Fiber Optic Cable
Brand:	OEM or Tw-Scie
Sheath Material:	LSZH,HDPE,MDPE

Product Description

2-288 Core Direct Burial or Duct Single Mode Fiber Optic Cable details:


Fiber optic cable / Fiber cable / Optic cable / Optic fiber cable / Optical cable / Fiber optic

Application:
These corrugated steel tape armored and double sheath cables are suitable for installation in harsh environments where mechanical impact on the cable to be expected, e. G. Direct buried application. They are also suitable for installation in ducts where the rodent resistance is to be expected.

Features:
1. Up to 288 fibers
2. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
3. Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance.
4. Metal strength member provides excellent strain performance.

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-24	12.6	185	12.5 times O.D.	25 times O.D.	3000	1000	3000	1000
26-36	12.9	195
38-60	13.4	200
62-72	13.9	230
74-96	15.5	275
98-120	17	320
122-144	18.4	365
146-216	18.9	385
218-240	22.1	495
242-288	24.3	580

Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

Please feel free to contact with us for cooperation and excellent service.
