2-288 Core Optic Fiber Cable Gyty53 for Communication

Prod Model:	GYTY53
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Style:	Duct & Direct Buried
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE /Lszg
Outer Sheath Color:	Black
Armour Material:	Corrugated Steel Tape
Central Stranding Member:	Steel Wire or FRP
Color Of Fiber And Loose Tube:	Red,Black,Yellow,Violet,Pink,Aqua
Color Of Fiber /Loose Tube:	Blue,Orange,Green,Brown,Grey,White,
Application:	Submarine Cable
Cover Material:	PE
Certification:	UL
Conductor Material:	Glass Fiber
Type:	Fiber Optic Cable

Product Description

2-288 Core Optic Fiber Cable Gyty53 for Communication

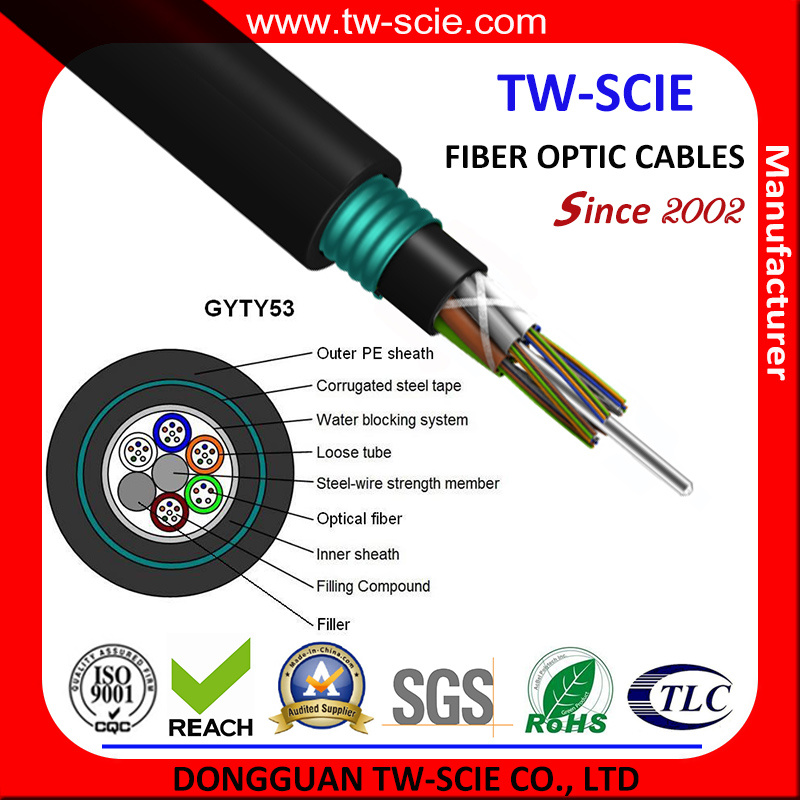

GYTY53 Outdoor Direct Buried Loose Tube Fiber Optic Cable

The fibers,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes sheathed with polyethylene(PE) for cable with high fiber count,locates in the center of core as metallic strength member.Tubes(and fillers) are stranded around the strength member into a compact and circular cable core.An Aluminum Polyethylene Laminate(APL) is applied around the cable core,which is filled with the filling compound to protect it from water ingress.Then the cable core is covered with a thin PE inner sheath.After the PSP is longitudinally applied over the inner sheath,the cable is completed with a PE sheath.

1. Good mechanical and temperature performance.
2. Heigh strength loose tube that is hydrolysis resistand
3. Specially tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable form ultraviolet radiation
6. Steel wire used as the central strength member
7.100% cable filling core filling
6. Loose tubs filling compound
7. Corrugated Steel Tape enhancing mostiure-proof
8. Water-blocking material




optical characteristics
		G.652	G.655	50/125um	62.5/125um
attenuation(+20ºC)	@850nm			≤3.0db/km	≤3.0db/km
	@1300nm			≤1.0db/km	≤1.0db/km
	@1310nm	≤0.36db/km	≤0.4db/km
	@1550nm	≤0.22db/km	≤0.23db/km
	@850nm			≤600mhz.km	≤200mhz.km
bandwidth(class A)	@1300nm			≥1200mhz.km	≥600mhz.km
numerical Aperture				0.200±0.015na	0.275±0.015na
cable cut-off waveleng th xcc				≤1620nm	≤1450nm
storage/operating temperature:-40ºC to +70ºC



Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-24	13.3	210	12.5 times O.D.	25 times O.D.	3000	1000	3000	1000
26-36	13.6	220
38-60	14.1	225
62-72	14.6	255
74-96	16.2	305
98-120	17.7	350
122-144	19.1	395
146-216	19.6	420
218-240	22.8	530
242-288	25	620
