2.3mm Thick Multilayer PCB 10 Layer Copper Board 1 Oz
| Price: |
US $ 0.78/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1315R3.1 |
| Finished Thickness: |
2.03mm |
| Pth Cu Thickness: |
22.12mm |
| Inner Layer Cu Thickness: |
1 Oz |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Trace Width (mm): |
0.208mm |
| Spacing (mm): |
0.203mm |
| Nickel: |
100u'' |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

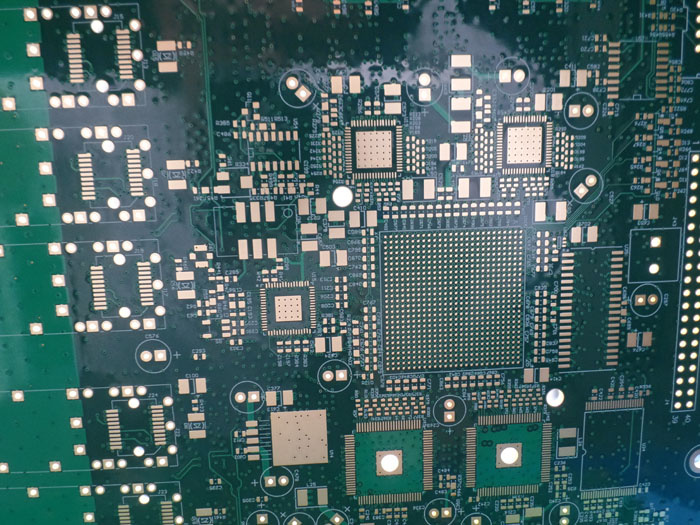

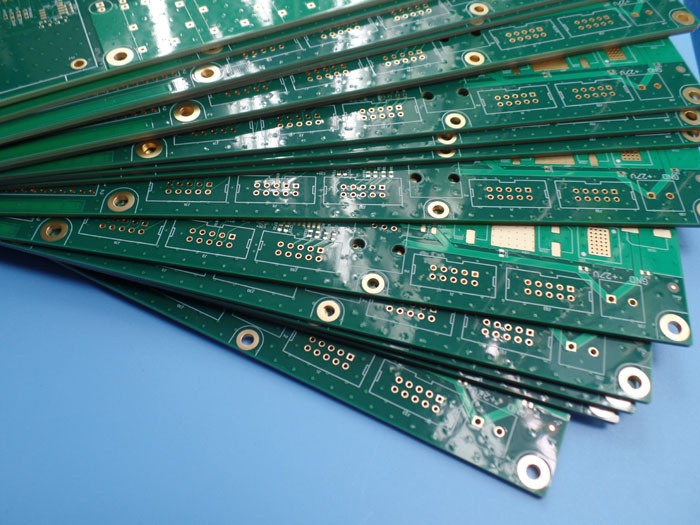

2.3mm thick Multilayer PCB 10 Layer copper board 1 oz with 2.3mm thick and Immersion
Gold
Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 10 layer board at 2.3mm thick.
The base laminate is from SHENGYI. Solder mask and silkscreen from Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed sepa
-rately.
Parameters & Data Sheet| Item | Description | Requirement |
|
| Laminate | Laminate Type | FR4 |
| Supplier | SHENGYI |
| Tg | TG >=170 |
| Finished thickness | 2.3+/-10% MM |
| Plating Thickness | PTH Cu thickness | >20 um |
| Inner layer Cu Thickness | 1/1 OZ |
| Surface Cu thickness | 35 um |
| Solder Mask | Material type | LP-4G G-05 |
| Supplier | Nan Ya |
| Color | Green |
| Single / both sides | Both Sides |
| S/M thickness | >=10.0 um |
| 3M tape test | NO Peel Off |
| Legend | Material type | S-380W |
| Supplier | Tai yo |
| Color | White |
| Location | Both Sides |
| 3M tape test | No peel off |
| Circuit | Trace Width (mm) | 0.203+/-20%mm |
| Spacing (mm) | 0.203+/- 20%mm |
| Identification | UL mark | 94V-0 |
| Company Logo | QM2 |
| Date code | 1017 |
| Mark location | CS |
| Surface Treatment | ENIG | Nickel | 100U'' |
| Gold | >=1.2U'' |
| Reliabilty Tests | Thermal shock test | 288±5ºC, 10sec ,3 cycles |
| solder abllity test | 245±5ºC |
| Function | Electrioal Test | 233+/-5ºC |
| Standard | IPC-A 600H class 2,
IPC_6012C CLASS 2 | | 100% |
| Appearance | Visual inspection | 100% |
| warp and twist | <= 0.75% |
| Others | V-Cut thickness | N/A |
| Angle | N/A |
