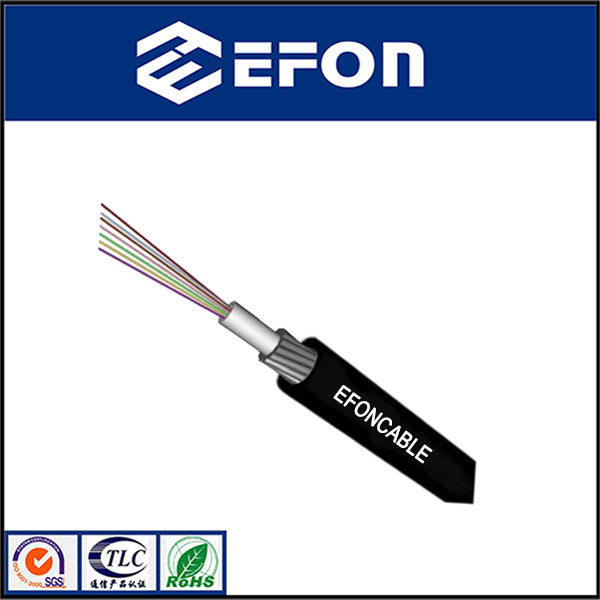

2/4/6/8/12/24 Core Unitube Non-Metal Non-Armored Optical Fiber Cable (GYXTY)

Prod Model:	GYXTY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D, Om1 Om2 Om3 Om4 9/125 50/125 62.5/125
Fiber Material:	Doped Silica
Fiber:	Single Mode
Central Strength Member:	Steel Wire
Tube:	Central Loose Tube
Material Of Jacket:	HDPE/Lszh /Flame Retardant Sheath
Bending Radius:	Static 10*Cable-D: Dynamic 20*Cable-D
Applications:	Outdoor Aerial and Duct
Certificate:	ISO9001 Tlc RoHS
Color:	Black
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Brand:	Efon
Sheath Material:	HDPE/Lszh Sheath/Flame Retardant Sheath/Anti-Roden

Product Description

Description

GYXTY armor optical fiber cable is an outdoor communication optical cable of metallic strength member of the central tube jelly-filled structure, with polyethylene sheath.

Features

Full cross-section water-blocking structure with vertical cover ensure good water blocking and moisture resistance
Loose tube is filled with special ointment for a key fiber protection
Phosphated steel wire wrapped members are resistant to tensile and lateral pressure
Product life of 30 years

Performance

Applications: Suitable for long-distance communication and indoor communication
Way of laying: Overhead, pipeline
Operating temperature: -40 ~ + 70 ° C
Bend radius: Static 10x cable diameter; Dynamic 20x cable diameter


Installation method:

Aerial, conduit,



Products Standard

Mechanical Performance:
Max Tension Performance: IEC 60794-1-2-E
Max. Operation Tension: IEC 60794-1-2-E1
Crush Test: IEC 6079 -1-2-E3
Impact Test: IEC 60794-1-2-E4
Repeated Bending: IEC 60794-1-2-E6
Torsion Test: IEC 60794-1-2-E7
Cable bend: IEC 60794-1-2-E11A
Attenuation Coefficient: ITU-T G. 652
Structural Test: IEC-60793-1-20
Environmental Performance
Temperature Cycling: IEC 60794-1-2-F1
Water Penetration: IEC 60794-1-2-F5B
Filing Compound Flow: IEC 60794-1-E14

Structure and Technical Specifications

Items	Specified Values
Fiber Type	G.652 Single-mode fiber
Mode Field Diameter@1310nm	9.2±0.4μm
Cladding Diameter	125.0±1.0μm
Cut-Off Wavelength	λcc(test 20m cable+2m fiber) ≤1260 nm
Mode Field Concentricity Erro	≤0.5μm
Cladding No Circularity Erro	1.0%
Attenuation Coefficient 1310nm 1550nm	≤0.36 dB/km ≤0.22 dB/km
Dispersion Coefficient	1288-1339nm≤3.5ps/nm.km 1270-1360nm≤5.3ps/nm.km 1550nm≤18ps/nm.km 1625nm≤22ps/nm.km
Zero Dispersion Wavelength	1300nm-1324nm
Zero Dispersion Slope	≤0.09ps/nm 2 .km
PDM	≤0.2ps/km 1/2
Coating Diameter	245±10μm
Proof Test	100kpsi0.7Gpa

Product Standard

Mechanical Performance
Max Tension Performance	IEC 60794-1-2-E
Max. Operation Tension	IEC 60794-1-2-E1
Crush Test	IEC 6079 -1-2-E3
Impact Test	IEC 60794-1-2-E4
Repeated Bending	IEC 60794-1-2-E6
Torsion Test	IEC 60794-1-2-E7
Cable bend	IEC 60794-1-2-E11A
Attenuation Coefficient	ITU-T G.652
Structural Test	IEC-60793-1-20
Environmental Performance
Temperature Cycling	IEC 60794-1-2-F1
Water Penetration	IEC 60794-1-2-F5B
Filing Compound Flow	IEC 60794-1-E14
