| Prod Model: |
LYD-QC37 |
| Connection Mode: |
Common Anode |
| Static Power Consumption: |
<1W |
| Output Current: |
<6A/CH |
| RF Frequency: |
2.4G |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Type: |
Touch |
| Voltage: |
DC12V~24V |
Product Description
Basic Info| Place of Origin: | Guangdong, China (Mainland) | Brand Name: | louita | Model Number: | LYD-QC37 |
| Type: | Remote Control | Max. Load Power: | 576W | Voltage: | 12-24V |
| Application: | point source of light, flexible light strip |

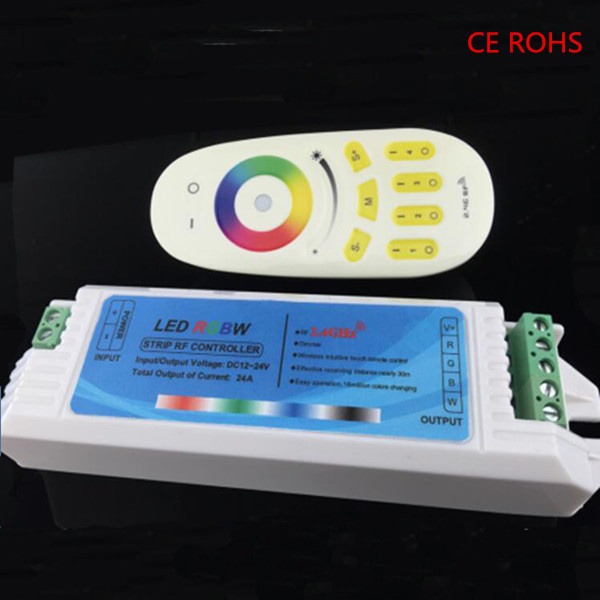

Product DescriptionThis 4 zone 2.4G RF RGBW Controller is the touch button RF wireless remote controller, the most advanced PWM (pulse width modulation) control technology have been adopted. It can be installed & used easily, plenty modes can be selected, speed & brightness can be adjusted with the remote. It also has memory function because we inside the memory chip on the PCB. With all these high functions, we still make it so tiny, and make it more economical and practical. It's mainly used to control all kinds of constant voltage led lights, such as: LED source, LED strips, led wall washer, wall Glass curtain lights, etc.
Technical ParametersWorking temperature:-20~55ºC
Supply voltage:DC12V~24V
Output:4 Channel
Connection mode:Common anode
Controller size:L85×W45×H23mm
Net weight:86g
Static power consumption:<1W
Output current:<6A/CH
Output power:12V:<288W; 24V:<576W
Function introduction:1,Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller,and the RF remote can controlled it across obstacles.
2,In the open area remote control distance is about 30 meters.

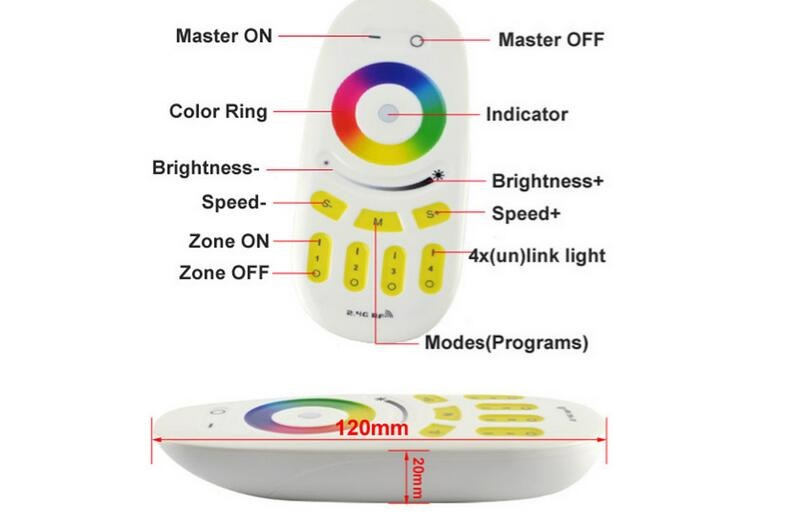

3,Adopt the press key and touch wheel control remote, slightly touch the color wheel can adjust the light's brightness smoothly .
Operation method:1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Only the power button is effective in the OFF station, press the power button for the first time then controller will enter to the last mode before turn of the controller last time (memory off function).
3. Mode+/- can select the 8 modes as below:
| No | Mode |
| 1 | 7 color fade |
| 2 | White fade in and out |
| 3 | Red fade in and out + Green fade in and out + Blue fade in and out + white fade in and out |
| 4 | 7 color jump |
| 5 | Red fade in and out+ jump flash 3 times |
| 6 | Green fade in and out+ jump flash 3 times |
| 7 | Blue fade in and out+ jump flash 3 times |
| 8 | Auto Cycle |
Match code and clean code Instruction:For a new combination, the remote must to match code white the receiver then it can be used normally. Before match code, you must ensure the LED Controller, power supply and led light are connected correctly, then cut off the power ,and re-power it again.
Match code:Please press the "Group X(X=1,2,3,4) ON"Button 2 seconds within 8 seconds after power the controller, then the output led light will be flash for 6 times, this means the remote is match code with this receiver successfully, they can used normally.
Clean code: if user want to change the light control group,he can clean the code off. After clean code the remote and receiver will be in the initial state. Operation method: Press the "Group X(X=1,2,3,4) OFF " Button 2 seconds within 8 seconds when power the controller, till the output light flash for 6 times, means clean code successfully.
Remarks: The regular product for sale is a kit (one remote and 1 receiver). The user can re-programmed freely as needed. One remote can control countless receivers, but one receiver can only be controlled by two remotes max.
Packaging&Shipping:
With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.
Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.
Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
