| Prod Model: |
LYD-DS01 |
| Connection Mode: |
Common Anode |
| Static Power Consumption: |
<1W |
| RF Frequency: |
2.4G |
| Output: |
1 Channel Output |
| Output Current: |
<3*4A/CH |
| Application: |
Toys |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Voltage: |
DC12V~24V |
Product Description
Basic Info| place of origin: | Shenzhen,China |
| output: | 3 channel output |
| Output current: | <3*4A/CH |
| Static power consumption: | <1w |
| Output Power: | 12V:<144W, 24V:<288W |
| Connection mode: | common anode |
| Supply Voltage: | DC12~24V |
| Brand name: | louita |

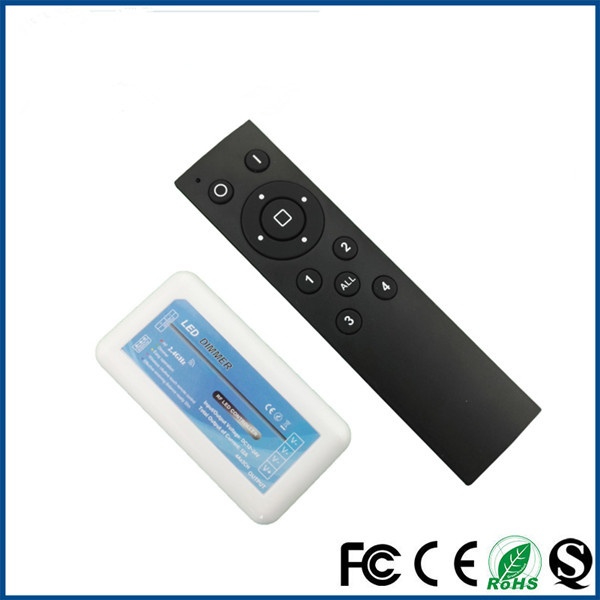

Product DescriptionThis 4 zone 2.4G RF led dimmer adopt the press button RF wireless remote control,can adjust brightness infinitely to change the lights brightness according to the customer's preference. 2.4G frequency make it more stable and more strong anti-jamming capability to use.
Besides, one remote can controlled 4 group of light independent,make it realize the one-to-many manipulation control.
Technical parametersWorking temperature:-20~55ºC
Supply voltage:DC12V~24V
Output:3 Channel(3 channel are the same effect)
Connection mode:Common anode
Controller size:L85×W45×H23mm
Remote size:L150×W38×H14mm
Static power consumption:<1W
Output current:<4A/CH
Output power: 12V:< 144W;24V:<288W
Direction for use

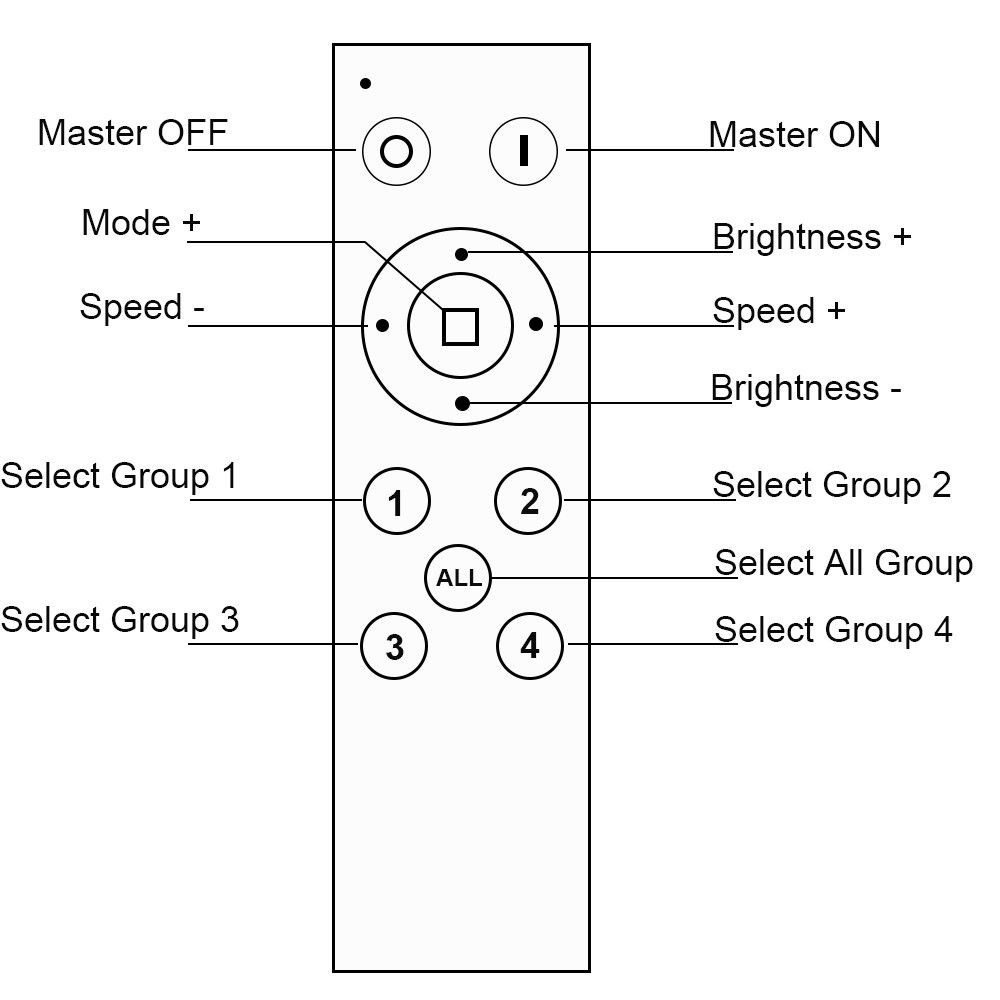

Remote control function
The control parameter are as below table:| Item | Parameter |
| Supply voltage | 3V 2*AAA batteries |
| Transmission frequency | 2400-2483.5MHz |
| Control mode | GFSK |
| Transmission power | 6db |
| Static power consumption | 10uA |
| Remote distance | 20-30m |
| External dimension | 150×W38×H14mm |
Function introduction:1,Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller and the RF remote can control it across obstacles.
2,Adopt the press key control remote, it can quickly adjust to the light's brightness smoothly .
Match code and clean code Instruction:
For a new combination, the remote must to match code with the receiver then it can be used normally. Before that, you must ensure the LED controller, power supply and LED light are connected correctly, then re-power it again.
Match code: Please press the "Group X(X=1,2,3,4) ON" Button for 2 seconds within 8 seconds when power the controller, then the output led light will flash for 3 times, this means the remote is match code with this receiver successfully, they can used normally.
Clean code: if want to change the light control group, can clean the code off. After cleaning code, the remote and receiver will be in the initial state. Operation method: Press the "Group X(X=1,2,3,4) OFF " Button for 2 seconds within 8 seconds when power the controller, till the output light flash for 3 times, means clean code successfully.
Programs as follows:| NO | MODE | NO | MODE |
| 1 | Static Color | 3 | Fade In And Fade Out |
| 2 | Strobe Flash | 4 | Blasting Flash |
CautionsThis products Input voltage is DC12-24V,other input voltage are not allowed.

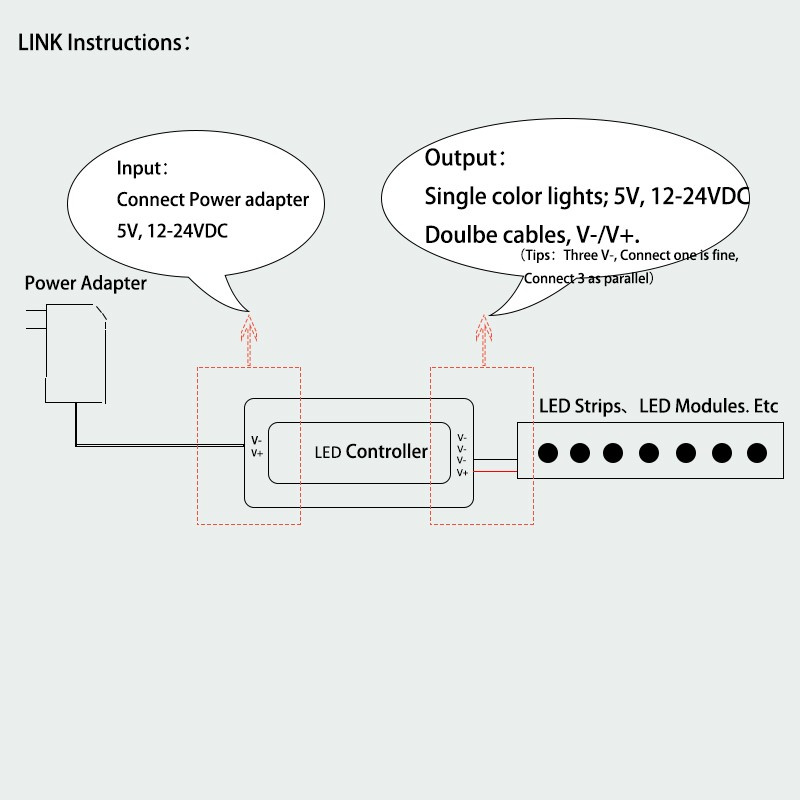

Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.Overload are prohibited.
