| Prod Model: |
LYD-DS03 |
| Connection Mode: |
Common Anode |
| Static Power Consumption: |
<1W |
| RF Frequency: |
2.4G |
| Output Current: |
<4A/CH |
| Output: |
3 CMOS Output |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Voltage: |
DC12V~24V |
Product Description
Basic Info| place of origin: | Shenzhen,China |
| output: | 3 CMOS output |
| output current: | <4A/CH |
| Connection mode: | common anode |
| Static power consumption: | <1w |
| Output Power: | 12V:<144W, 24V:<288W |
| Supply Voltage: | DC12~24V |
| Brand name: | louita |

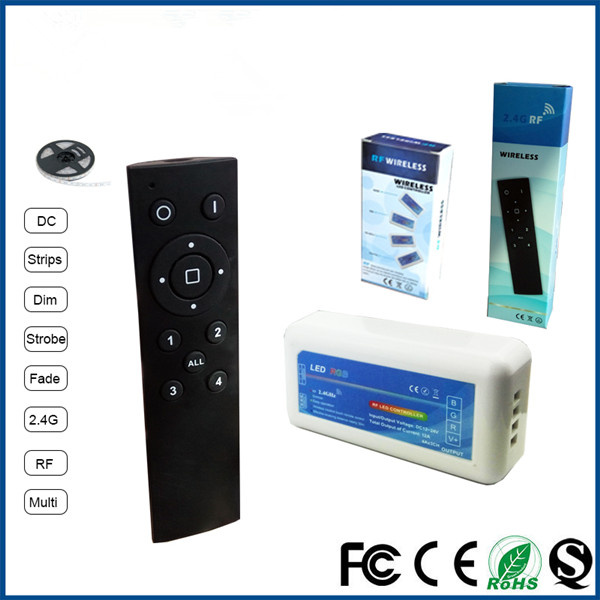

Product DescriptionOne super remote is coming, this remote can be used for mono dimmer, bi-color controller, RGB controller and RGBW controller, you do not need buy 4 kinds of remote, just one is enough for all type!
With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunications, etc. The remote looks fashionable and elegant, with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.
Technical ParametersWorking temperature:-20~55ºC
Supply voltage:DC12V~24V
Output:3 Channel(R/G/B/V+)
Connection mode:Common anode
Controller size:L152×W41×H28mm
Net weight:86g
Static power consumption:<1W
Output current:<6A/CH
Output power:12V:< 216W;24V:<432W
| REMOTE |
| Power | AAA battery*2pcs | Material | ABS |
| control distance | 30 meters | Programs | 9 kinds |
| Size | 110*21*55mm | Compatibility | DIMMER/CW&WW /RGB/RGBW |
| RECEIVER |
| Input Voltage | DC 12-24V | Control way | R G B Channels |
| Output Current | 4A*3CH=12A | Output power | 18A*12/24V=144/288W |

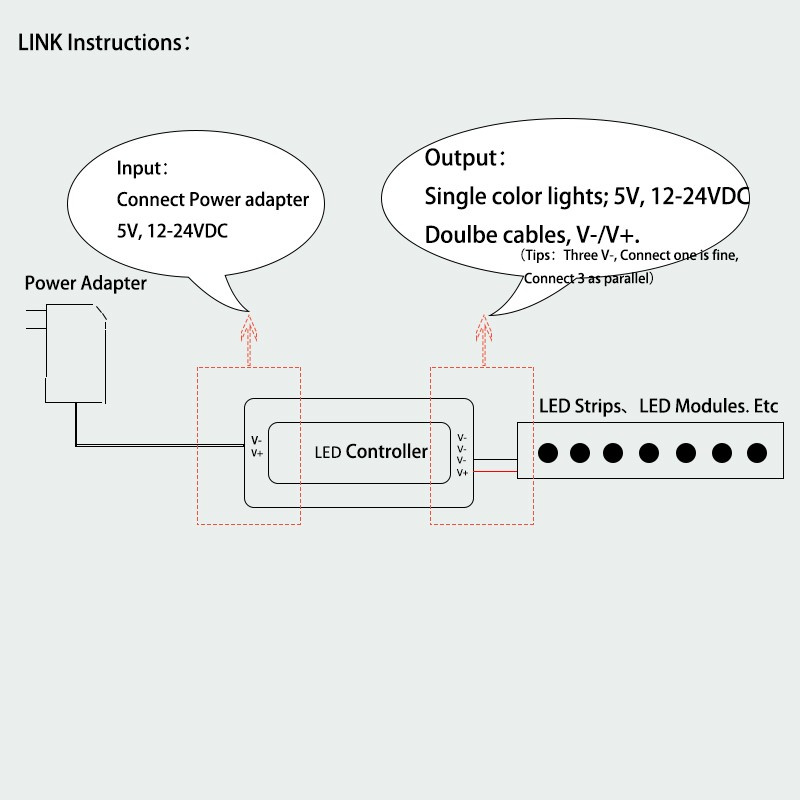

| Power Input Port | DC 5.5*2.1 Female Connector or Direct 2 wire(+ -) Input |
| Output Connection | Common anode | Size | 150*38*12mm |
Function1. It has the memory function (that is to say, the previous settings will be resumed when power on again). It is widely used in led RGB LED Strip light, led module and so on.
2. With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunications, etc.
3. Working voltage: DC 12-24V. control distance: 30 meters
4. Control way: R G B three channels. Max load per channel: 4A.
5. 9 Dynamic modes, thousands static colors, Speed & brightness can be adjusted.
6. 1 remote control 4 parts receivers separately, it means you can control 4 area led strips in different modes. No quantity limits.

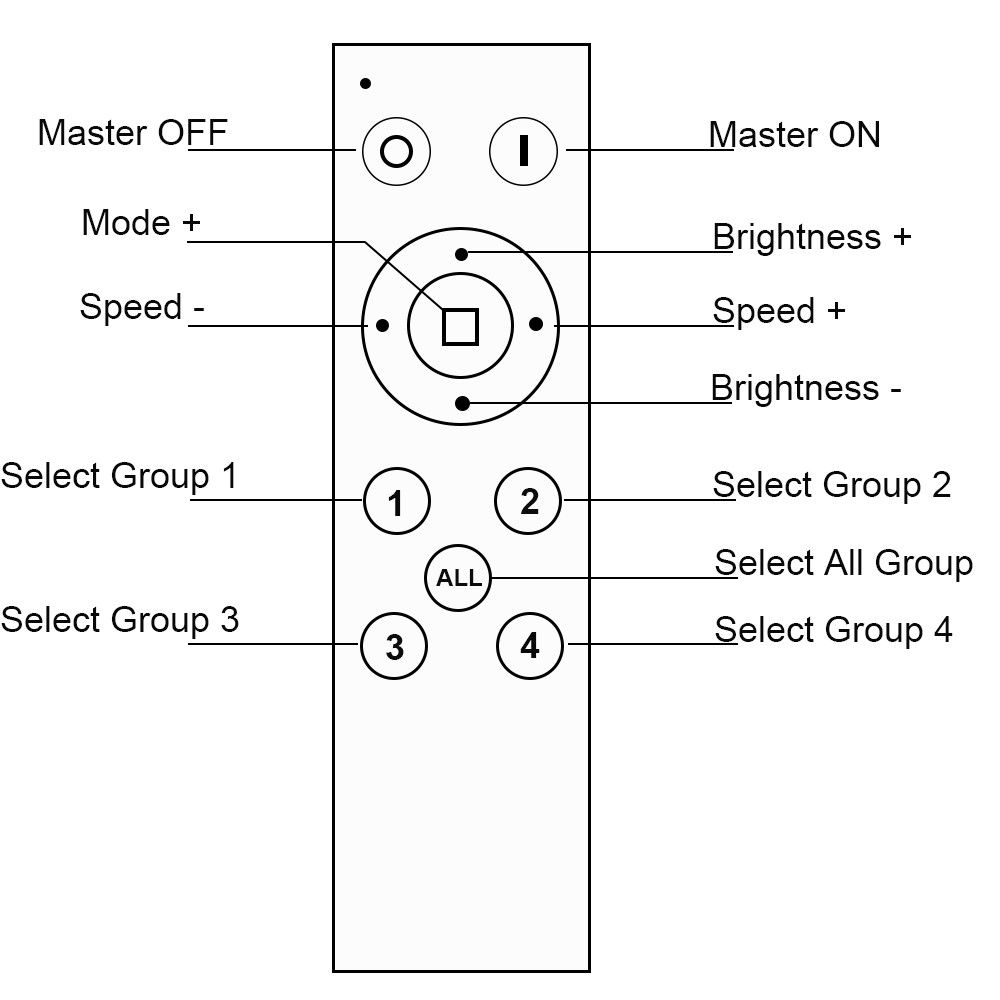

A. Tips:1. To dim all RGB(W) lights at once or change the color, first press "Master ON ", to do this with individual lights, first press"Zone ON". Secondly, choose the color or brightness according to the color ring or brightness ring.
2. For RGB led strip lights, the white is mixed from Red, Green, Blue, so the white is not pure.
3. For RGBW led strip lights. the white can be pure.
B. Match the RX To TX
1. Choose which zone you want to assign the light(1-4).
2. Switch off the main power supply of the light in the selected zone with the main from the socket.
3. Now switch on the light again and within 3 seconds shortly press one of the "Zone ON" Button one time on the remote control.
4. When this link operation is successful, the lights slowly blink 3 times on and off.
C. Clear the RX to TX.
1. Check via the remote control to see which zone(1-4) is already linked to a light.
2. Switch off the main power supply of the light with main switch.
3. Now swith on the light again and within 3 seconds press 5 times quickly and shortly on one of the Zone buttons which one you want to unlink.
4. when this unlink operation is successful, the light quickly blinks 6 times on and off.
