| Prod Model: |
LYD-Music-02 |
| Connection Mode: |
Common Anode |
| Net Weight: |
137g |
| Gross Weight: |
156g |
| Static Power Consumption: |
<1W |
| Output Current: |
<5A(Each Circuit) |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Voltage: |
DC5V, 12V~24voptional |
Product Description

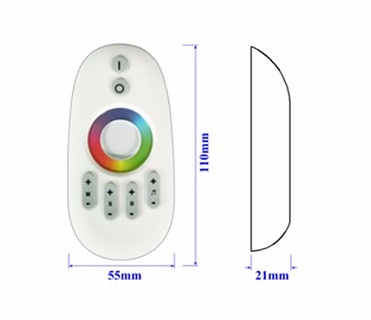

Basic Info| place of origin: | Shenzhen,China |
| output: | 3 CMOS Open drain Output |
| output current: | <5A(each circuit) |
| Output Power: | 5V:<75W, 12V:<180W, 24V:<360W |
| Controller's dimension: | 155*75*30mm |
| Supply Voltage: | DC5V, 12V~24VOptional |
| Net weight: | 137g |
| Brand name: | louita |

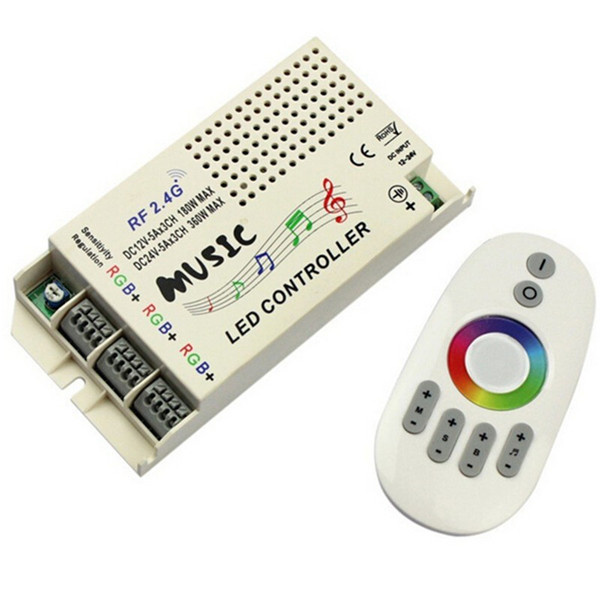

Product Description2.4G Music Controller adopts the advanced micro control unit. It is used for controlling a variety of LED lamp. For instance, LED strips, LED module light , LED light box, luminous characters etc. It has many advantages such as low cost, convenient connection and ease of use; With memory storage function, you can adjust the static brightness, static color, dynamic speed regulation and so on lighting change effects via the RF 2.4G remoter. When it is in sound-control mode, the colors will change with the music rhythm.
2.4G Music RGB LED Controller | Item No. | LYD-Music-02 |
| Dimension | L155×W75×H30 mm |
| Output | 3 circuits |
| Net Weight | 155g |
| Gross Weight | 205g |
| Packing Dimension | L162*W82*H58 mm |
| Voltage | DC5V,12-24V |
| Current | 3x5A |
| Connection mode | common anode |
| Output current | <5A(each circuits) |
| Output power | 5V:<75W, 12V:<180W, 24V:<360W |
| Working temperature | -20-60 ºC |
Direction for use
1)Function introduction:1,Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller,and the RF remote can controlled it across obstacles.
2,In the open area remote control distance is about 30 meters.
3,Adopt the press key and touch wheel control remote, slightly touch the color wheel can adjust the light's color temperature smoothly .

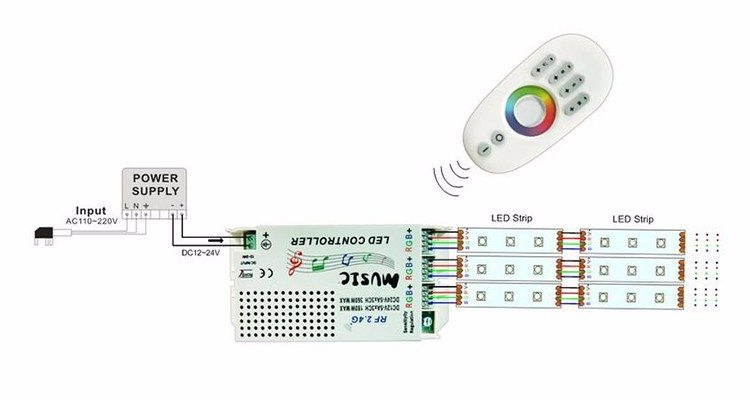

2)Operation method:1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2.Only the power button is effective in the OFF station, press the power button for the first time then controller will enter to the last mode before turn of the controller last time (memory off function)
3,After start up,press"Mode+""Mode-"can realize 22 kinds of effect mode selection.The mode is shown in the table below :
| Number | Mode | Adjustable state | Number | Mode | Adjustable state |
| 1 | Static red |
Brightness is adjustable to level 10, speed is not adjustable
| 12 | Seven colors gradient |
Brightness is adjustable to level 10, speed is adjustable to level 10 |
| 2 | Static Green | 13 | Red strobe |
| 3 | Static blue | 14 | Green strobe |
| 4 | Static yellow | 15 | Blue strobe |
| 5 | Static purple | 16 | Yellow strobe |
| 6 | Static cyan | 17 | Purple strobe |
| 7 | Static white | 18 | Cyan strobe |
| 8 | Red green blue jump | Brightness is adjustable to level 10, speed is adjustable to level 10
| 19 | White strobe |
| 9 | Six colors gradient | 20 | Red blue jump |
| 10 | Severn colors jump | 21 | Green blue jump |
4,When it is in Cyclical mode, press "mode+", can be back Static red(1), press "mode-", can be back Red green jump(22).
5,When it is in color wheel adjusting mode, press"mode+" or"mode-",will be back the last selected mode.
6,When it is in music mode, press"mode+" or"mode-",will be back the last selected mode.
7,Long press "speed+","speed-""brightness+""brightness-", can adjust the speed and brightness.
8,Press"Music mode+" or "Music mode-",the controller go into voice controlling statue, the output will be changed following the music rhythm. There are 10 change effects available as following:
| Number | Mode | Number | Mode |
| 1 | DJ Red | 6 | DJ Cyan |
| 2 | DJ Green | 7 | DJ White |
| 3 | DJ Blue | 8 | DJ seven colors |
| 4 | DJ Yellow | 9 | Jazz seven colors |
| 5 | DJ Purple | 10 | Tenderness seven colors |
3)Music mode supplemental instruction : 1)DJ music mode: all colors will strobe change following the music/sound rhythm. If no music/sound input or sensed, all colors off.
2)Active music mode: all colors will jump change following the music/sound rhythm. If no music/sound input or sensed, current colors keep lighting.
3)Tenderness music mode: all colors will jump change following the music/sound rhythm. If no music/sound input or sensed, all colors will gradually change.
