| Prod Model: |
LYD-MINI |
| Gross Weight: |
150g |
| Output Channels: |
3 Channels |
| Output Current: |
5A*3CH |
| Connect Mode: |
Common Anode |
| Output Power: |
180W(12V)/360W(24V) |
| Wi-Fi Protocol: |
Wi-Fi 802.11b/G/N |
| Application: |
TV |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Voltage: |
12-24V |
Product Description
Basic InfoSignal Transmission: RF Remote Control
Certification: ISO9001, RoHS, CE
Transmission Distance: <100m
Material: Plastic
Working Voltage: 12V~24V
Telecontrol Distance: 30 Meters
Transmit Power: 6dB
Remote Voltage: 1.5V * 2 AAA Batteries
Housing Material: ABS
Specification: CE, ROHS
Application: Household Appliances, LED Products, Industrial Machinery, Special Equipment
Type: LED Controller
Universal: Universal
Voltage: 12-24V
Battery Type: AAA Battery
Control Way: R G B W Four Channels
Certificates: CE, RoHS
Standby Power Consumption: 5ua
Process: Color Printing and UV Varnish
Trademark: louita
Origin: Shenzhen, China

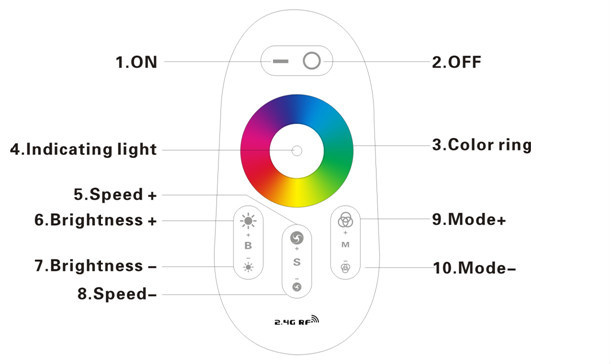

Features:1. The remote control is a full touch, using the most advanced PWM (pulse width modulation) control technology;
2. Using radio 2.4G (2400-2483.5MHz) high frequency wireless remote control, with low power consumption, interference stronger, higher stability, etc. characteristics; universal, remote controller 2pcs 3A batteries, standby power consumption: 10uA. 20 to 30 meters remote control distance
3. Using the RF signal, no physical obstructions between the remote control and LED lights with each other, without the remote control at the remote LED lights use.
Electrical Specification:| Working temperature | -20-60ºC | Working voltage | DC12~24V |
| Power consumption | <3W | Connect method | Common anode |
| WIFI brightness level | 100 | WIFI speed level | 100 |
| N.W. | 65g | G.W. | 86g |
| Case dimension | 84mm*45mm*22mm | Box dimension | 97MM*83MM*30MM |
| Output | 3 channels | Output current | ≤4A(each channel) |
| WIFI frequency | 2.4G | Output gray scale | 256 |
| Receiving sensitivity | 802.11b:DSSS(-5dBm) 802.11b:CCK(-10dBm) 802.11g:OFDM(-15dBm) |
| Output power | 12V: ≤144W 24V: ≤288W |
Attention:1. Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be broken.
2. Please do not connect wires with power on.Please switch on only when it is in right connection and no short circuit.
3. Please keep your figure off the touching ring when installing the batteries, to improve its sensitivity, and use the remote (3 seconds later) after the installation. Please reinstall the batteries, if the touching ring is found low-sensitivity.
4. Please do not use the controller in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.
