2.4G RF RGB LED Remote Controller

2.4G RF RGB LED Remote Controller
Price: US $ 7.2-7.3/Piece
Min Order: 5/Piece
Pay Type: T/T,Paypal
Prod Model: LYD-DS03
Connection Mode: Common Anode
Static Power Consumption: <1W
RF Frequency: 2.4G
Output Current: <4A/CH
Output: 3 CMOS Output
Application: Audio / Video Players
Signal Transmission: RF Remote Control
Type: Button
Certification: CE
Universal: Universal
Transmission Distance: <50m
Material: Plastic
Voltage: DC12V~24V

Product Description

Basic Info
place of origin:Shenzhen,China
output:3 CMOS output
output current: <4A/CH
 Connection mode:common anode
Static power consumption:<1w
Output Power:12V:<144W,  24V:<288W
Supply Voltage:DC12~24V
Brand name:louita

Product Description
One super remote is coming, this remote can be used for mono dimmer, bi-color controller, RGB controller and RGBW controller, you do not need buy 4 kinds of remote, just one is enough for all type!

With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunications, etc. The remote looks fashionable and elegant, with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.


Technical Parameters
Working temperature:-20~55ºC
Supply voltage:DC12V~24V
Output:3 Channel(R/G/B/V+)
Connection mode:Common anode
Controller size:L152×W41×H28mm
Net weight:86g
Static power consumption:<1W
Output current:<6A/CH
Output power:12V:< 216W;24V:<432W

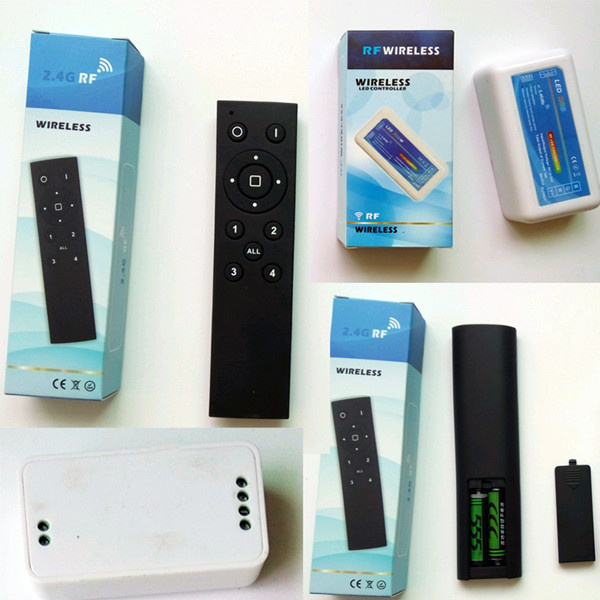

REMOTE
PowerAAA battery*2pcsMaterialABS
control distance30 metersPrograms9 kinds
Size110*21*55mmCompatibilityDIMMER/CW&WW /RGB/RGBW
RECEIVER
Input VoltageDC 12-24VControl wayR G B Channels
Output Current4A*3CH=12AOutput power18A*12/24V=144/288W
Power Input PortDC 5.5*2.1 Female Connector or Direct 2 wire(+ -) Input
Output ConnectionCommon anodeSize150*38*12mm

Function
1. It has the memory function (that is to say, the previous settings will be resumed when power on again). It is widely used in led RGB LED Strip light, led module and so on.

2. With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunications, etc.

3. Working voltage: DC 12-24V. control distance: 30 meters

4. Control way: R G B three channels. Max load per channel: 4A.

5. 9 Dynamic modes, thousands static colors, Speed & brightness can be adjusted.

6. 1 remote control 4 parts receivers separately, it means you can control 4 area led strips in different modes. No quantity limits.



A. Tips:

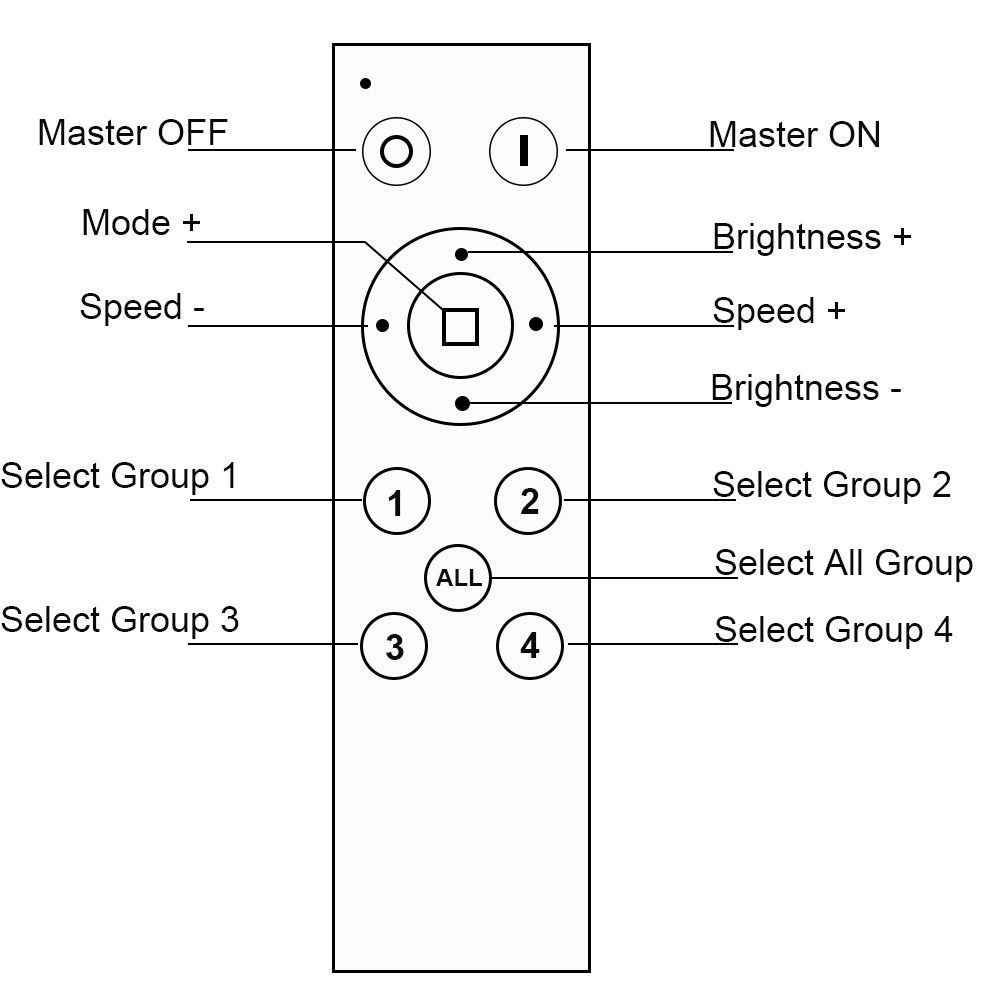

1. To dim all RGB(W) lights at once or change the color, first press "Master ON ", to do this with individual lights, first press"Zone ON". Secondly, choose the color or brightness according to the color ring or brightness ring.

2. For RGB led strip lights, the white is mixed from Red, Green, Blue, so the white is not pure.

3. For RGBW led strip lights. the white can be pure.

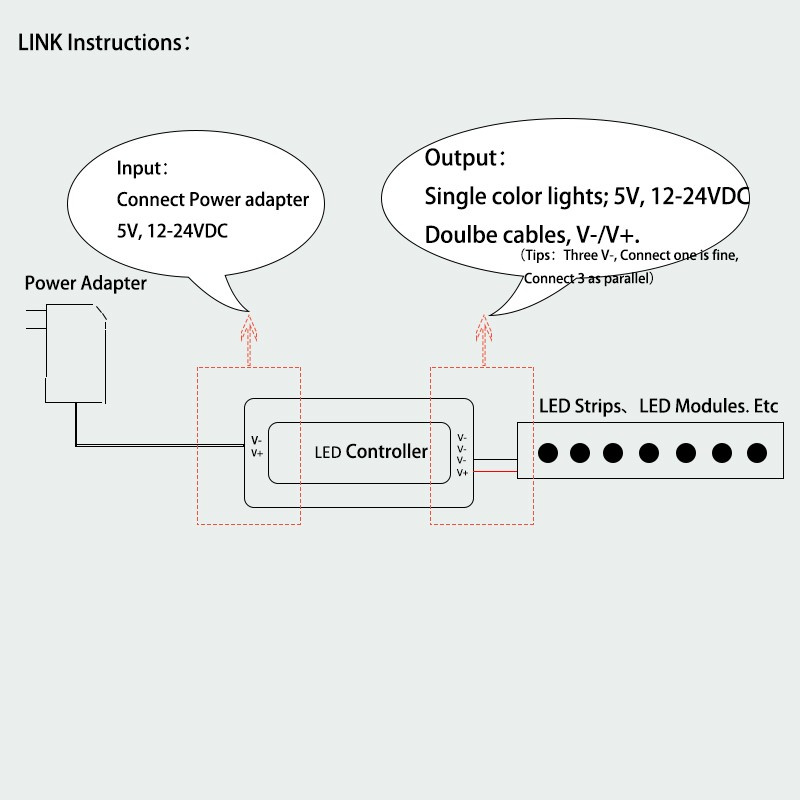

B. Match the RX To TX

1. Choose which zone you want to assign the light(1-4).

2. Switch off the main power supply of the light in the selected zone with the main from the socket.

3. Now switch on the light again and within 3 seconds shortly press one of the "Zone ON" Button one time on the remote control.

4. When this link operation is successful, the lights slowly blink 3 times on and off.

C. Clear the RX to TX.

1. Check via the remote control to see which zone(1-4) is already linked to a light.

2. Switch off the main power supply of the light with main switch.

3. Now swith on the light again and within 3 seconds press 5 times quickly and shortly on one of the Zone buttons which one you want to unlink.

4. when this unlink operation is successful, the light quickly blinks 6 times on and off.

Packaging&Shipping



With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.

Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
