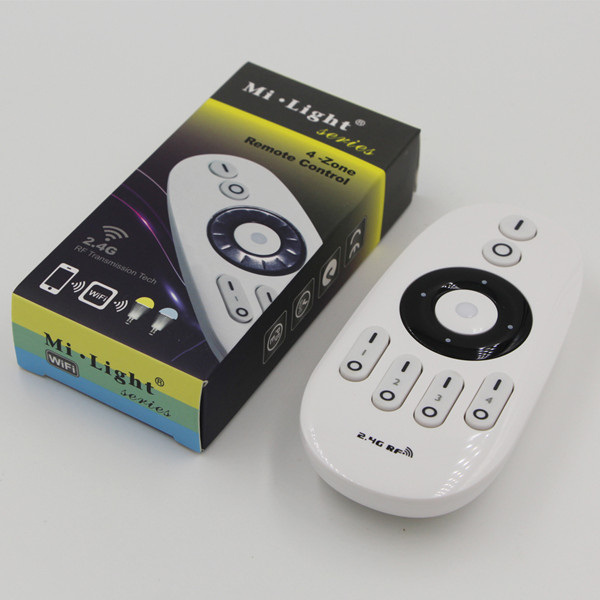

2.4GHz 4 Zone Color Temperature Remote Controller

Name: 2.4GHz 4 Zone Color Temperature Remote Controller
Brand: all-electronics-online.com
SKU: 804055805
Availability: InStock
Rating: 5 (23 reviews)

Price:	US $ 7.9-8/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-T2.4-02
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	DC12V~24V

Product Description

Basic Info

Place of origin:	Guangdong, China (Mainland)
Brand Name:	louita
Max. Load Power:	288W
Voltage:	12-24V
Type:	Remote Control
RF frequency:	2.4G
Size:	L85W45H23mm
Connection mode:	common anode
Output:	2 channel output
Application:	point source of light, flexible light strip

Product Description

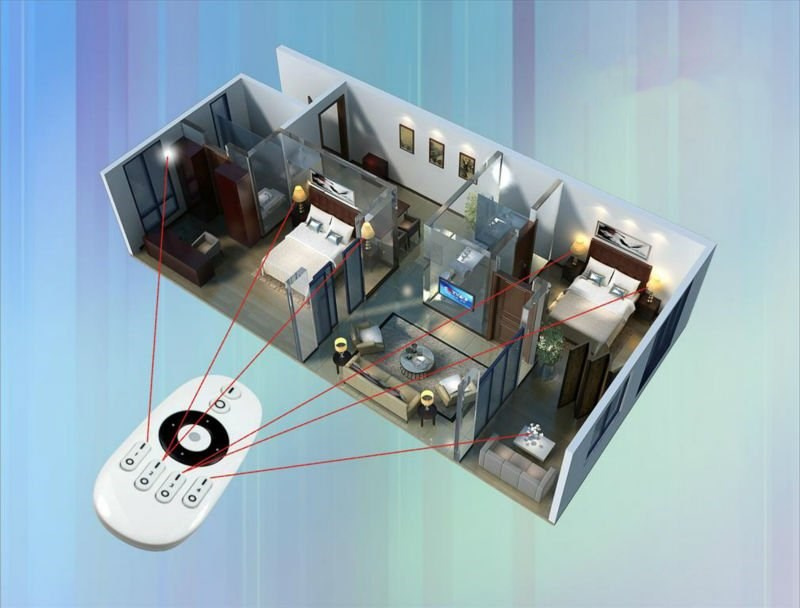

This 4 zone 2.4G RF color temperature controller adopt the press button RF wireless remote control,can adjust to change the light color according to the customers' preference,2.4G frequency make it more stable and more strong anti-jamming capability to use.Besides,one remote can control 4 groups of light independently.make it realize the one-to-many manipulation control.

Technical Paramaters
working temperature:-20-55
supply voltage:DC12-24V
output:2 channel
Connection mode:common anode
controller size:L85*W45*H23mm
net weight:86g
output current:<6A/CH
function introduce:
1.use the 2.4G frequency RF remote control,no need to make remote direct to the controller,and the RF remote can control it across obstacles
2.Adopt the press key control remote.it can quickly adjust to the light's color temperature and brightness smoothly.
match code and clean code instruction:
for a new combination,the remote must to match code with the receiver then it can be used normality,before that,you must ensure the led controller,power supply and led light are connected correctly.then re-power it again.
match code:please press the "groupx(x=1,2,3,4)ON" Button for 2 seconds within 6 seconds when power the controller,then the output led light will flash for 3 times,this means the remote is match code with this reciever successfully,they can use normally.
clean code:if want to change the light control group.can clean the code off,after clean the code,the remote and receiver will be in the install state.operation method press the"groupx(x=1,2,3,4)OFF"button for 2 seconds within 6 seconds when power the controller.till the output light flash for 3 times,means clean code successfully.

Package&Shipping:

With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.

Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
