2.4mm Thick 4 Layer Multilayer PCB with Immersion Gold Board
| Price: |
US $ 0.48/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-222-V2.22 |
| Outer Copper Foil: |
2 Oz |
| Board Thickness: |
2.4mm |
| Surface Treament: |
Enig |
| Solder Mask Color: |
Blue,R-500 Bl |
| Legend Color: |
White,Kuang Shun |
| Forming: |
V-Cut |
| Visual Inspection: |
Ipc-a-600h&Ipc-6012c |
| Min Line Width (Mil): |
5.2 Mil |
| Min Line Spacing (Mil): |
6.2 Mil |
| Electrical Test: |
100% PCB Passed |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

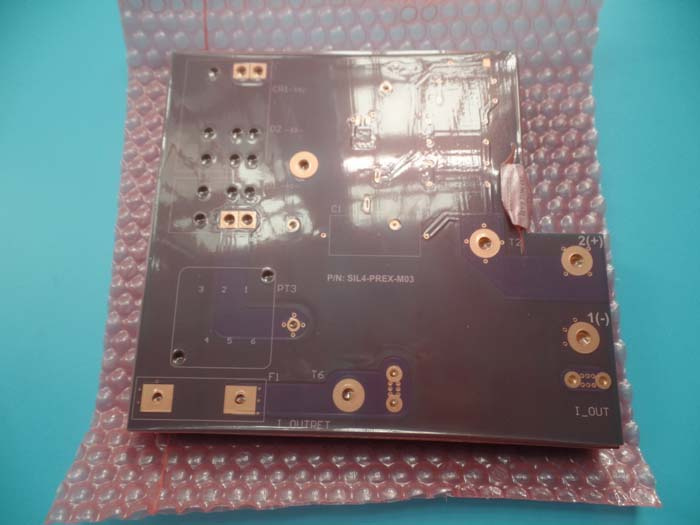

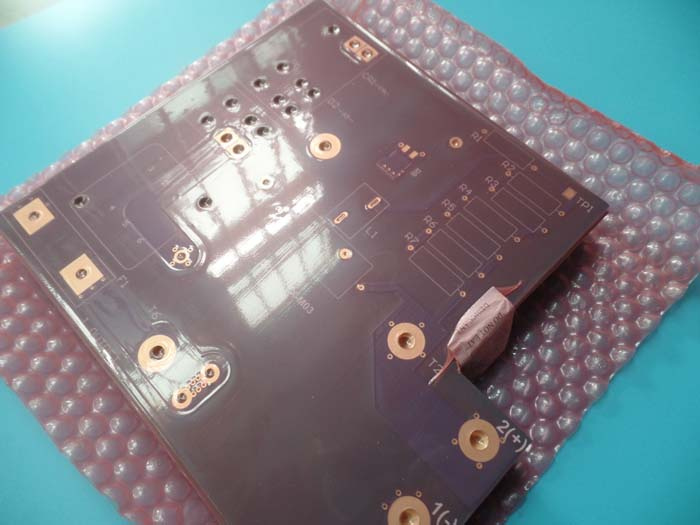

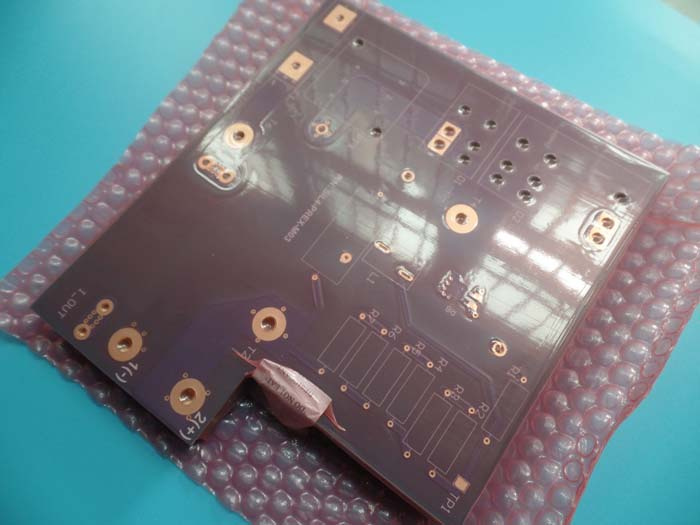

2.4mm thick Multilayer 4 Layer PCB 3 equal dielectric thickness with Blue Solder Mask and
ENIG pads in Surveillance Systems
Commodity Introduction
This is a type of FR-4 PCB for the application of Surveillance Systems. It's a 4 layer board at 2.4mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from KUANG SHUA.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 Tg170 | FR-4 Tg170 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 2.4+-10%mm | 2.38-2.42mm |
| Outer copper foil | >=70 um | 73.7 um |
| Inner copper foil | 2/2 OZ | 2/2 OZ |
| Warp-twist | <= 0.75% | 0.03% |
| Legend | Type | KUANG SHUN | KUANG SHUN |
| Color | White | White |
| Location | CS | CS |
| Marking | Co.logo | YES | YES |
| UL.logo | YES | YES |
| Date code | WWYY | WWYY |
| Marking form | N/A | OK |
| Location | CS | CS |
| Min line width (mil) | 5.4 | 5.2 |
| Min line spacing (mil) | 6 | 6.2 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | R-500 BL | R-500 BL |
| Color | Blue | Blue |
| Thickness | >=10 um | 14 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface treament | ENIG | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012C | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
Learn PCB and Buy PCB
ITEQ is one of our main laminates brand.
ITEQ Laminate/ Prepreg : IT-140TC / IT-140BS
IPC-4101A Spec / 21
LAMINATE(IT-140TC) | Property | Thickness
<0.50 mm | Thickness
>=0.50 mm | Units | Test
Method |
| [0.0197 in] | [0.0197 in] |
Typical
Value | Spec | Typical
Value | Spec | Metric | IPC-TM
-650 |
| (English) | (or as
noted) |
Peel Strength,
minimum | | | | | N/mm | 2.4.8 |
A. Low profile
copper foil
and very low
profile copper
foil - all copper
weights >
17mm [0.669 mil] | | | | | (lb/inch) | 2.4.8.2 |
B. Standard profile
copper foil | 0.96
(5.5) | 0.70
(4.0) | 0.96
(5.5) | 0.70
(4.0) | | 2.4.8.3 |
1. After Thermal
Stress | | | | | | |
2. At 125°C
[257 F] | | | | | | |
3. After Process
Solutions | 1.75
(10 ) | 0.80
(4.57) | 1.93
(11.0) | 1.05
(6.00) | | |
| | 1.66
(9.5) | 0.70
(4.00) | 1.66
(9.5) | 0.70
(4.00) | | |
| | 1.49
(8.5) | 0.55
(3.14) | 1.49
(8.5) | 0.80
(4.57) | | |
Volume Resistivity,
minimum | | | | | MW-cm | 2.5.17.1 |
| A. C-96/35/90 | 5x1010 | 106 | -- | -- |
B. After moisture
resistance | -- | -- | 5x1010 | 104 |
C. At elevated
temperature
E-24/125 | 5x1010 | 103 | 5x1010 | 103 |
Surface
Resistivity,
minimum | | | | | MW | 2.5.17.1 |
| A. C-96/35/90 | 3.5x1010 | 104 | -- | -- |
B. After moisture
resistance | -- | -- | 3.5x1010 | 104 |
C. At elevated
temperature
E-24/125 | 6x1010 | 103 | 6x1010 | 103 |
Moisture
Absorption,
maximum | 0.3 | -- | 0.1 | 0.8 | % | 2.6.2.1 |
Dielectric
Breakdown,
minimum | -- | -- | 60 | 40 | kV | 2.5.6 |
Permittivity (Dk,
50% resin
content) | 4.6 | 5.4 | 4.6 | 5.4 | -- | 2.5.5.9 |
(Laminate &
Laminated
Prepreg) |
| A. 1MHz |
Loss Tangent (Df,
50% resin
content) | 0.016 | 0.035 | 0.016 | 0.035 | -- | 2.5.5.9 |
(Laminate &
Laminated
Prepreg) |
| A. 1MHz |
Flexural Strength,
minimum | | | | | N/mm2 | 2.4.4 |
| A. Length direction | -- | -- | 500-530 | 415 | (lb/in2) |
| | -- | -- | (72,500-76,850) | -60,190 | |
| B. Cross direction | -- | -- | 430-460 | 345 | |
| | -- | -- | (62,350-66,700) | -50,140 | |
Arc Resistance,
minimum | 120 | 60 | 120 | 60 | s | 2.5.1 |
Thermal Stress 10
s at 288°C
[550.4F],minimum | | | | | Rating | 2.4.13.1 |
| A. Unetched | Pass | Pass
Visual | Pass | Pass
Visual |
| B. Etched | Pass | Pass
Visual | Pass | Pass
Visual |
Electric Strength,
minimum | 45 | 30 | -- | -- | kV/mm | 2.5.6.2 |
(Laminate &
Laminated
Prepreg) |
| Flammability, | V-0 | V-0 | V-0 | V-0 | Rating | UL94 |
(Laminate &
Laminated
Prepreg) |
Glass Transition
Temperature
(DSC) | 140 | 135
minimum | 140 | 135
minimum | ˚C | 2.4.25 |
Decomposition
Temperature | -- | -- | 305 | -- | ˚C | 2.4.24.6 |
(5% wt
loss) |
| Z-Axis CTE | | | | | | 2.4.24 |
| A. Alpha 1 | -- | -- | 55 | -- | ppm/˚C |
| B. Alpha 2 | -- | -- | 290 | -- | ppm/˚C |
C. 50 to 260
Degrees C | -- | -- | 4.2 | -- | % |
| Thermal Resistance | | | | | | 2.4.24.1 |
| A. T260 | -- | -- | 15 | -- | Minutes |
| B. T288 | -- | -- | 2 | -- | Minutes |
| CAF Resistance | -- | -- | Pass | AABUS | Pass/Fail | 2.6.25 |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
