Name: 2.4mm Thick PCB 4 Layer Heavy Copper Board 2 Oz
Brand: all-electronics-online.com
SKU: 823083525
Availability: InStock
Rating: 4.7 (43 reviews)

Price:	US $ 1.12/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC1304R3.8
Board Thick:	2.4mm
Solder Mask Color:	Green
Surface Finish:	Immersion Gold
Outer Copper Foil:	2 Oz
Inner Copper Foil:	2 Oz
Warp-Twist:	0.16%
Legend Color:	White
Min Line Width (Mil):	27.2 Mil
Min Line Spacing (Mil):	7.8 Mil
Electrical Test:	100% Passed
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

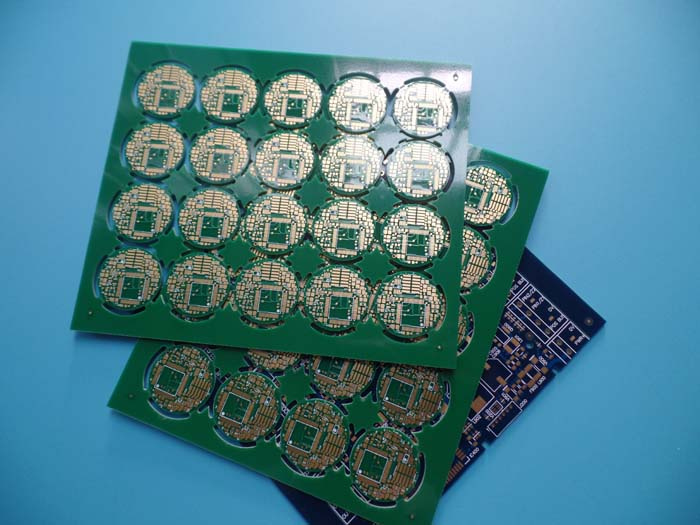

2.4mm thick PCB 4 Layer heavy copper board 2 oz with Immersion Gold and Green
soldermask

Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 4 layer board at 2.4mm thick. The
base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4	FR-4
	Supplier	ITEQ	ITEQ
	Board thickness	2.36±10% mm	2.35-2.40 mm
	Outer copper foil	>=70um	78.0um
	Inner copper foil	2/2 OZ	2/2 OZ
	Warp-twist	<= 0.75%	0.16%
Legend	Type	IJR-4000 MW300	IJR-4000 MW300
	Color	White	White
	Location	CS	CS
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	WWYY
	Marking form	NA	OK
	Location	CS	CS
Min line width (mil)		27	27.2
Min line spacing (mil)		8	7.8
Min ring width (mil)		NA	NA
Solder Mask	Type	PSR-2000GT600D	PSR-2000GT600D
	Color	Green	Green
	Thickness	>=10 um	14 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	Immersion Gold		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	/	/
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK
