Antenk Electronics Co., Ltd. >> 2.54mm Dual-in-Line Pin Header Straight DIP IC Socket

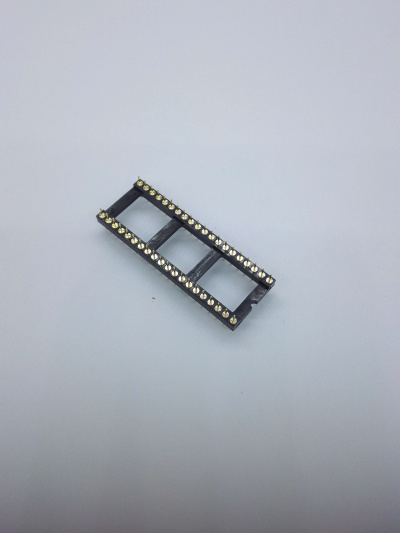

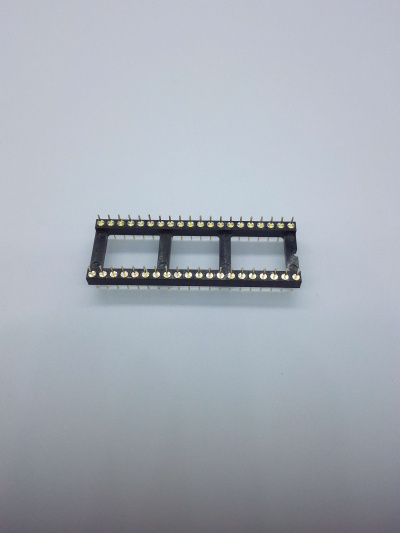

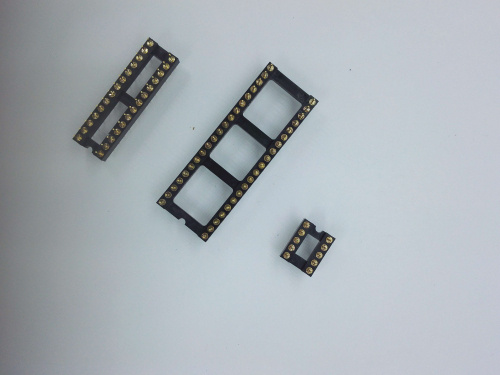

2.54mm Dual-in-Line Pin Header Straight DIP IC Socket

2.54mm Dual-in-Line Pin Header Straight DIP IC Socket
Price: US $ 0.11/Piece
Min Order: 1000/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: 2.54MM IC SOCKET 40P

Product Description

SPECIFICATION :
Current Rating: 3AMP/Contact Max.
Contact Resistance: 20m OHM /Contact Max.
Insulation Resistance: 1000M OHM at 100VDC Min.
Operating Voltage: 60V AC/DC
MECHANICAL;
Average Insertion Force with steel pin of D0.43mm: 250g Max.
Average with drawal force with steel pin of D0.43mm: 25g Min.
Mechanical life cycle: 200 cycle Min.
Operating temperatures:
Gold plated: -55c to +125C
Tin plated: -40C to +105C
Soldering temperature: +260C, 10S Max.
MATERIALl:
Pin: Brass, machined
Clip: Phosphor bronze
Plating (Pin): 50u" Ni, 100u" Sn
Plating (Clip): 50u" Ni, Gold Flash
Insulator boday(Black): PBT or Other(UL94V-0)


Model NO.:2.2.54mm pitch round ic socket




Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
