Antenk Electronics Co., Ltd. >> SIM Card Connector Push 6+2pin Height 2.0mm

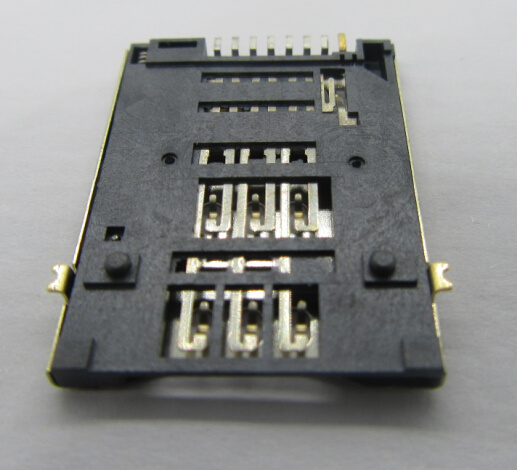

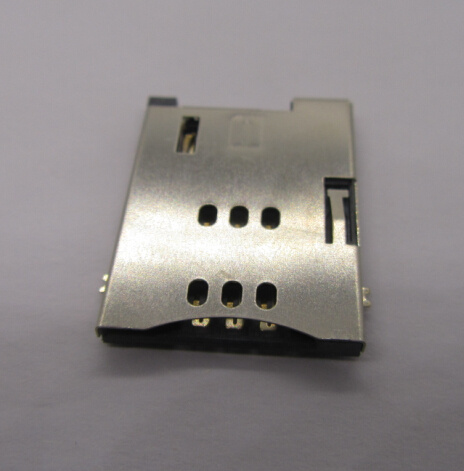

SIM Card Connector Push 6+2pin Height 2.0mm

SIM Card Connector Push 6+2pin Height 2.0mm
Price: US $ 0.272/Piece
Min Order: 1000/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: ASMFS220C01BR042
Application: Battery
Type: SIM Jack
Customized: Non-Customized
Cards Support: Single Card

Product Description



Specification:
SIM CARD PUSH PUSH(6+2PIN) H=2.2mm
*Electrical Characteristitics:
Current Rating:0.5A
Withstanding Voltage:AC500V r.m.s.
Insulation Resistance:1000Megohms Minimum at DC 500V
Contct Resistance:100Miliohms Maximum.
*Mechanical Characteristics:
Mating Cyeles:5000 Insertions.
*Environmwntal:
Operation Temperture:-40ºC TO +60ºC
*Material:
1.Housing:HI-Temp plastic UL 94V-0 Rated.
2.Contact:Copper Alloy.
3.Shell:SUS
*Finish:
1'u Gold plated on contact orea,1'u Gold plated on solder tails,Base Nickel:50'u"Min
*Packing:
Number of connectors:750Pcs/REEL
