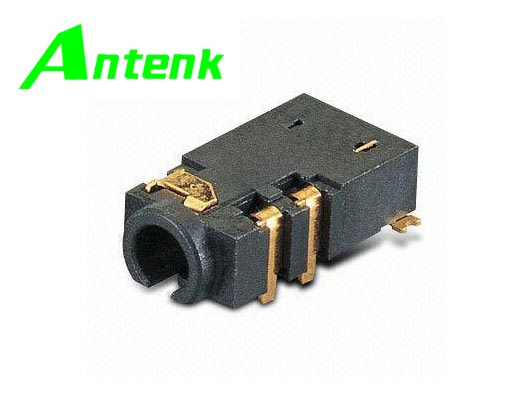

2.5mm Phone Jack Connector

Name: 2.5mm Phone Jack Connector
Brand: all-electronics-online.com
SKU: 609256714
Availability: InStock
Rating: 4.6 (94 reviews)

Price:	US $ 0.2/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Phone Jack series 001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Application:	PCB
Installation Mode:	Rotary Jack
Shape:	Rectangular
Customized:	Non-Customized
Working Frequency:	Low Frequency

Product Description

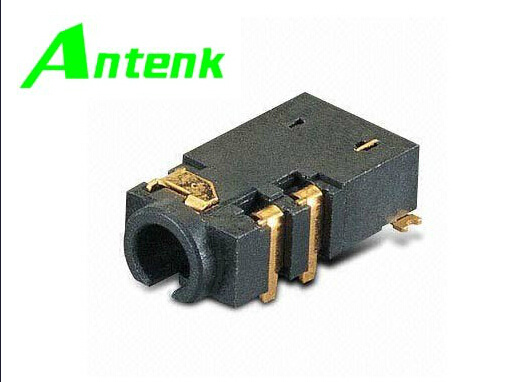

2.5mm SMT Type EAR-Phone Jack

Extraction force:
Value of spec
0.4 to 3.0kg (initial condition)
0.3 to 3.0kg (after life test; After humidity test; After heat test; After cold test; After resistance to soldering heat test)
Contact resistance:
Contact resistance of jack shall not exceed the value defined in the table listed at a current less than 100mA with frequency of 1kHz four terminals method
Value of spec
Contact to shunt
30m Ohms max. (initial condition; After humidity test; After heat test; After cold test; After resistance to soldering heat test)
60m Ohms max. (after durability test)
Plug to contacts
50m Ohms max. (initial condition; After humidity test; After heat test; After cold test; After resistance to soldering heat test)
100m Ohms max. (after durability test).

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.
