2.5mm Thick PCB Board 18 Layers Single Trace Impedance Controlled
| Price: |
US $ 99/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1286R1.1 |
| Minimum/Maximum Holes: |
0.3/2.0mm |
| Minimum Trace And Space: |
5 Mil/5 Mil |
| Board Thick: |
2.5mm |
| Solder Mask Color: |
Black |
| Legend Color: |
White |
| Surface Finish: |
Immersion Gold |
| Copper Thick: |
1 Oz |
| Impedance Control: |
Differential Pairs,90 Ohm |
| Via: |
BGA on Pad |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Multilayer PCB Board 18 Layers Impedance Controlled BGA Via In Pad FR-4 Tg 170 Applied
In Output Control
Commodity Introduction

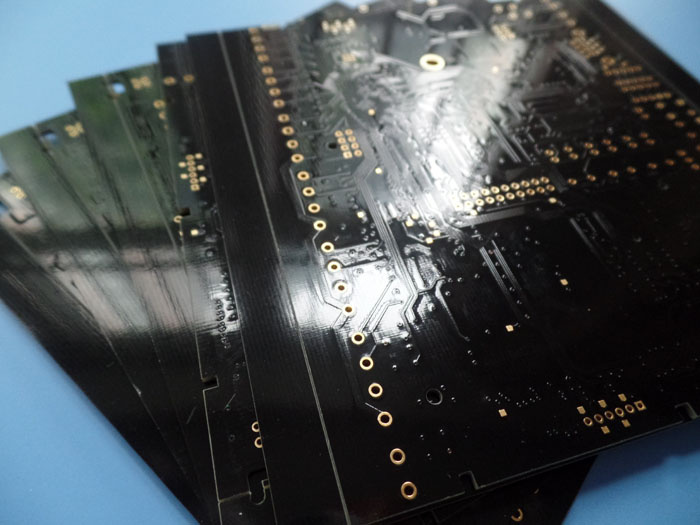

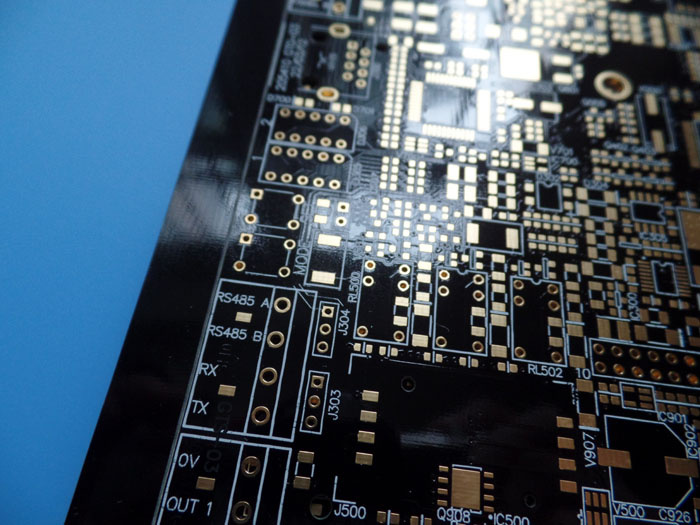

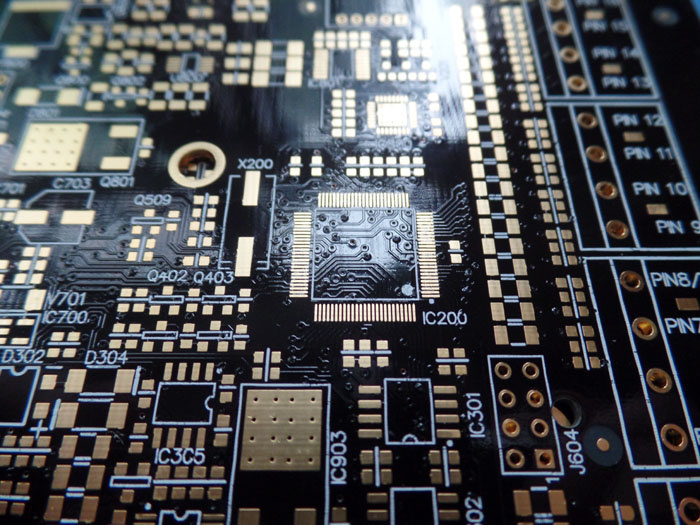

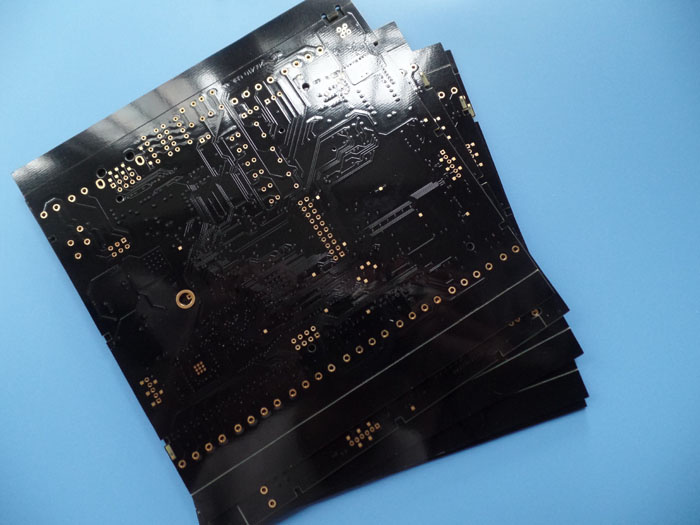

This is a type of FR-4 PCB for the application of Output Control. It's an 18 layer board at 2.5mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 79 x 81mm=1PCS=1design |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 18 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- TOP 17um(1oz)+plate 25um |
| 65 um prepreg 1080 x 1 |
| copper ------- L02 35um(1oz) |
| 150um core FR-4 |
| copper ------- L03 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L04 35um(1oz) |
| 150um core FR-4 |
| copper ------- L05 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L06 35um(1oz) |
| 150um core FR-4 |
| copper ------- L07 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L08 35um(1oz) |
| 150um core FR-4 |
| copper ------- L09 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L10 35um(1oz) |
| 150um core FR-4 |
| copper ------- L11 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L12 35um(1oz) |
| 150um core FR-4 |
| copper ------- L13 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L14 35um(1oz) |
| 150um core FR-4 |
| copper ------- L15 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L16 35um(1oz) |
| 150um core FR-4 |
| copper ------- L17 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- BOT 17um(0.5oz)+plate 25um |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5mil/5mil |
| Minimum / Maximum Holes: | 0.3/2.0mm |
| Number of Different Holes: | 12 |
| Number of Drill Holes: | 6720 |
| Number of Milled Slots: | 4 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Differential pairs impedance: L3, 4 / 4 mil,
91ohm +/-10%; L4, 4 / 6 mil, 97ohm +/-10%;
Single trace impedance: L3 / L4 / L7 / L8, 5mil,
56ohm +/-10%; L3 / L4 / L7, 6mil, 49ohm +/-10% |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180, TG>170, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 2.5mm ±10% |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 0.05µm over 3µm nickel) |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Black, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented.
Vin in pad under BGA package |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Output control, Mobile Wifi Router
Mifi Router
Outdoor Wifi Antenna
2.4 Ghz Antenna
Pure Sine Inverter |
TYPE OF ARTWORK
TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
