2.5mm Twin and Earth Cable/Flat Cable & Wire
| Price: |
US $ 0.1-3/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
2.5mm twin and earth cable/Flat Cable & Wire |
| Product Name: |
2.5mm Twin and Earth Cable/Flat Cable & Wire |
| Rated Voltage: |
300/500V 450/750V |
| Usage: |
Fixed Wiring |
| Conductor: |
Copper |
| Insulation: |
PVC |
| Sheath: |
PVC |
| Standard: |
IEC602007 |
| Certifications: |
ISO Ce CCC RoHS |
| MOQ: |
100 Meter |
| Delivery: |
3-10 Working Days |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Fixed Wiring |
| Range Of Application: |
Lsoh / Flame Retardant |
| Brand: |
Chang Qing Teng |
Product Description

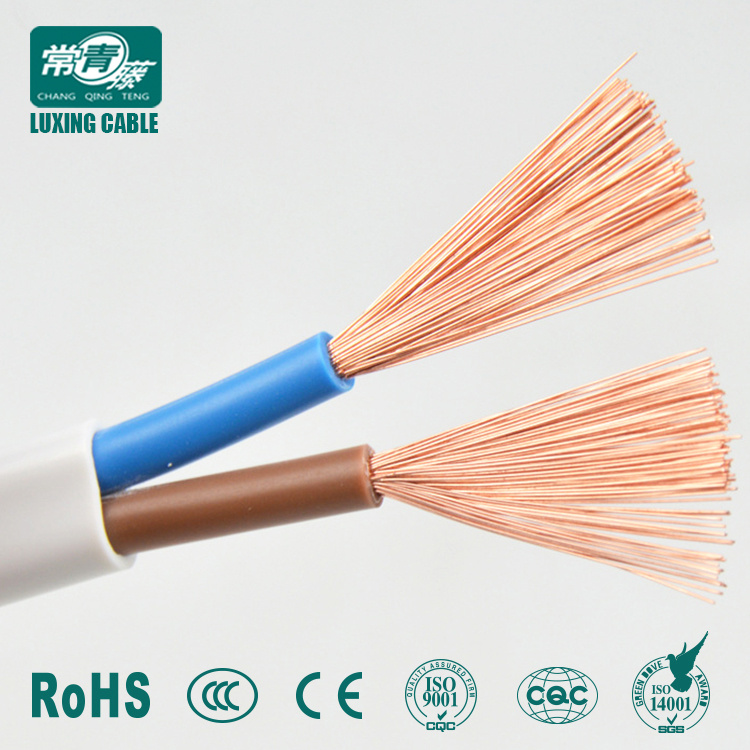

2.5mm twin and earth cable/Flat Cable & Wire
1)Application
This product applies to electrical appliances, instrument and telecommunication device with rated voltage up to and including 300/500V.
Maximum temperature allowance when the cables are for long term use: temperature shall not exceed 70°C.
2)Cable Structure
Conductor Material: Stranded pure copper wire ,CCA
Insulation Material: PVC
Core WireType: Centralized Fine Twisted
Sheath Material: PVC
3)Technical Index
Voltage Class: 300/500V
Rated Temperature: Continuous working temperature under 70°C is allowed for the conductor
AC Voltage Test: 50Hz 2500V
Standard: CCC is according with IEC60245-4 standard
4)Specification
| Flat cable 300/500V JB8734.2-1998 |
| Conductor Structure | Insulation | Sheath Thickness mm | Material net weight Kg/km |
Nominal Cross- Section area mm² | wire number single wire diameter mm | Diameter mm | Thickness mm | Diameter mm | Copper | PVC Insulation | PVC Sheath |
| 2x0.75 | 1/0.97 | 0.97 | 0.6 | 2.17 | 0.9 | 13.1 | 8.1 | 17 |
| 2x1.0 | 1/1.13 | 1.13 | 0.6 | 2.33 | 0.9 | 17.8 | 8.9 | 18 |
| 2x1.5 | 1/1.38 | 1.38 | 0.7 | 2.78 | 0.9 | 29.9 | 12.5 | 21 |
| 2x2.5 | 1/1.78 | 1.78 | 0.8 | 3.38 | 1 | 44.2 | 17.8 | 28 |
| 2x4 | 1/2.25 | 2.25 | 0.8 | 3.85 | 1 | 70.7 | 21 | 31.4 |
| 2x4 | 7/0.85 | 2.55 | 0.8 | 4.2 | 1 | 71.2 | 23.9 | 33.9 |
| 2x6 | 1/2.76 | 2.76 | 0.8 | 4.36 | 1.1 | 106.4 | 24.5 | 39 |
| 2x6 | 7/1.04 | 3.12 | 0.8 | 4.8 | 1.1 | 106.5 | 28.6 | 42.4 |
| 2x10 | 7/1.35 | 4.05 | 1 | 6.1 | 1.2 | 179.5 | 44.7 | 57.7 |
| 3x0.75 | 1/0.97 | 0.97 | 0.6 | 2.17 | 0.9 | 19.7 | 12.2 | 22.6 |
| 3x1.0 | 1/1.13 | 1.13 | 0.6 | 2.33 | 0.9 | 26.8 | 13.4 | 24 |
| 3x1.5 | 1/1.38 | 1.38 | 0.7 | 2.78 | 0.9 | 44.8 | 18.8 | 28 |
| 3x2.5 | 1/1.78 | 1.78 | 0.8 | 3.38 | 1 | 66.4 | 26.6 | 37.4 |
| 3x4 | 1/2.25 | 2.25 | 0.8 | 3.85 | 1.1 | 106.1 | 31.5 | 46.6 |
| 3x4 | 7/0.85 | 2.55 | 0.8 | 4.2 | 1.1 | 106.7 | 35.9 | 50.4 |
| 3x6 | 1/2.76 | 2.76 | 0.8 | 4.36 | 1.1 | 159.7 | 36.7 | 52 |
| 3x6 | 7/1.04 | 3.12 | 0.8 | 4.8 | 1.1 | 159.8 | 42.9 | 57 |
Shandong New Luxing Cable Co.,Ltd

Luxing Factory Mainly Produce | 300/500V 450/750V electrical wire | AAC conductor |
| 600/1000V PVC insulated cable | AAAC conductor |
| 600/1000V XLPE insulated cable | ACSR conductor |
| 1.8/3KV to 26/35KV power cable | OPGW |
| Armored underground cable | ABC cable |
| Control cable and instrumentation cables | Rubber cable |

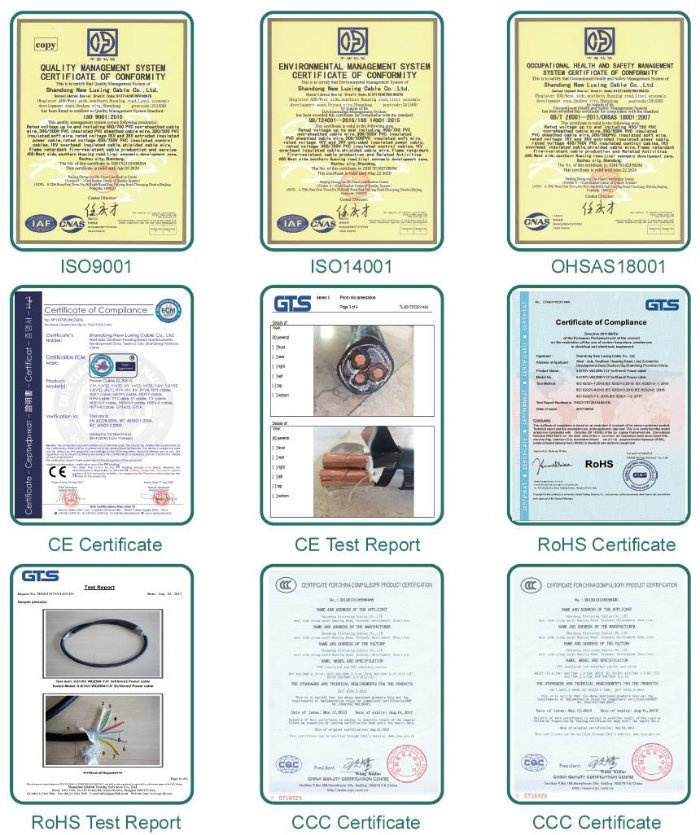

Certificates

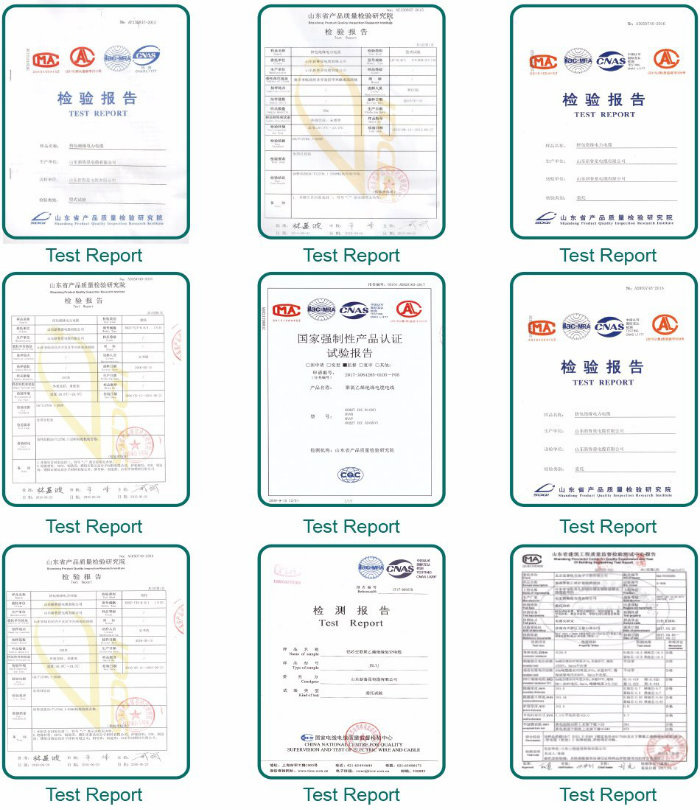

Test report

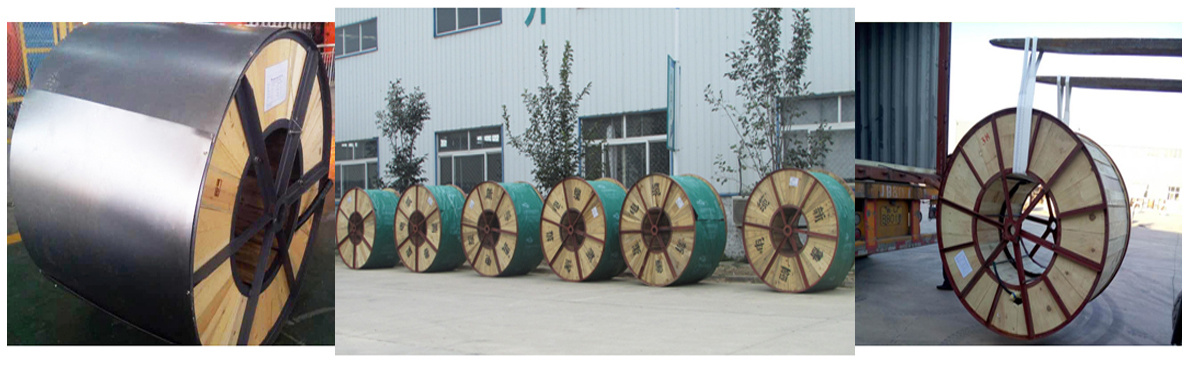

Packaging & Shipping

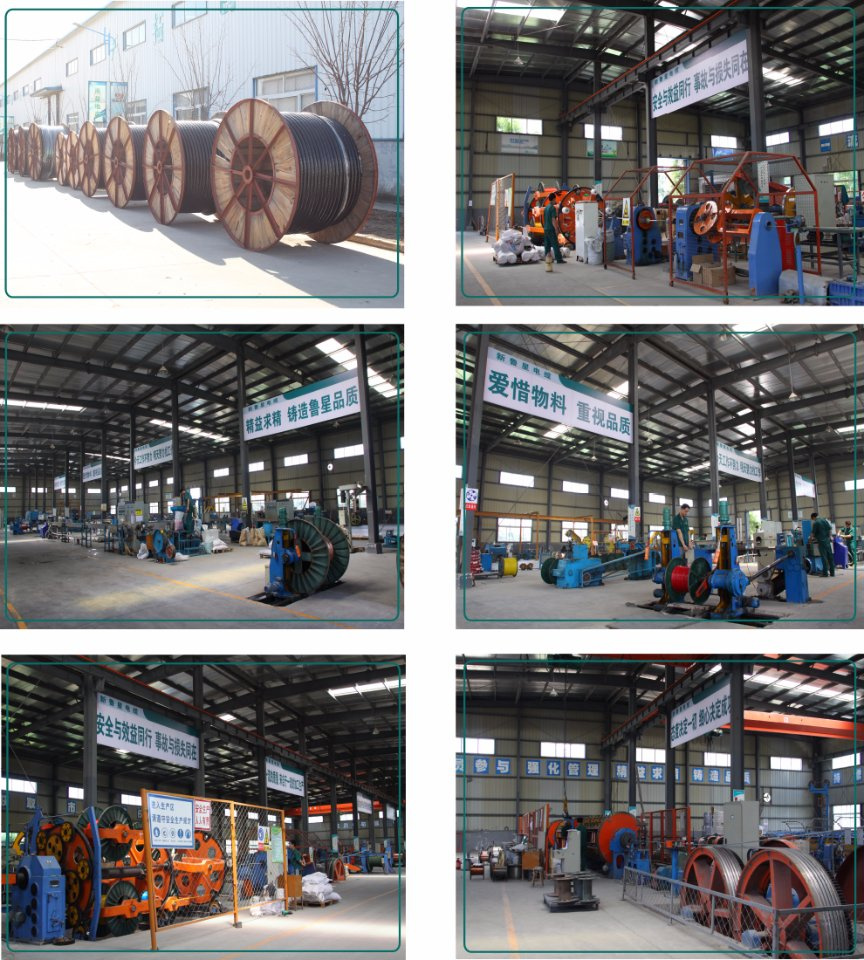

1) About Luxing Cable Factory:
-Shandong New Luxing Cable Co., Ltd established in the year of 1999.
-The headquarter is located in Jinan City, the capital of Shandong province, China.
-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.
-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.
-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.
2)Why Choose Luxing Cable Factory?
-Luxing cable, the designated supplier of China's national grid construction.
-We provid high-quality cables for our clients for more than 18 years.
-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.
-Serve you any time.

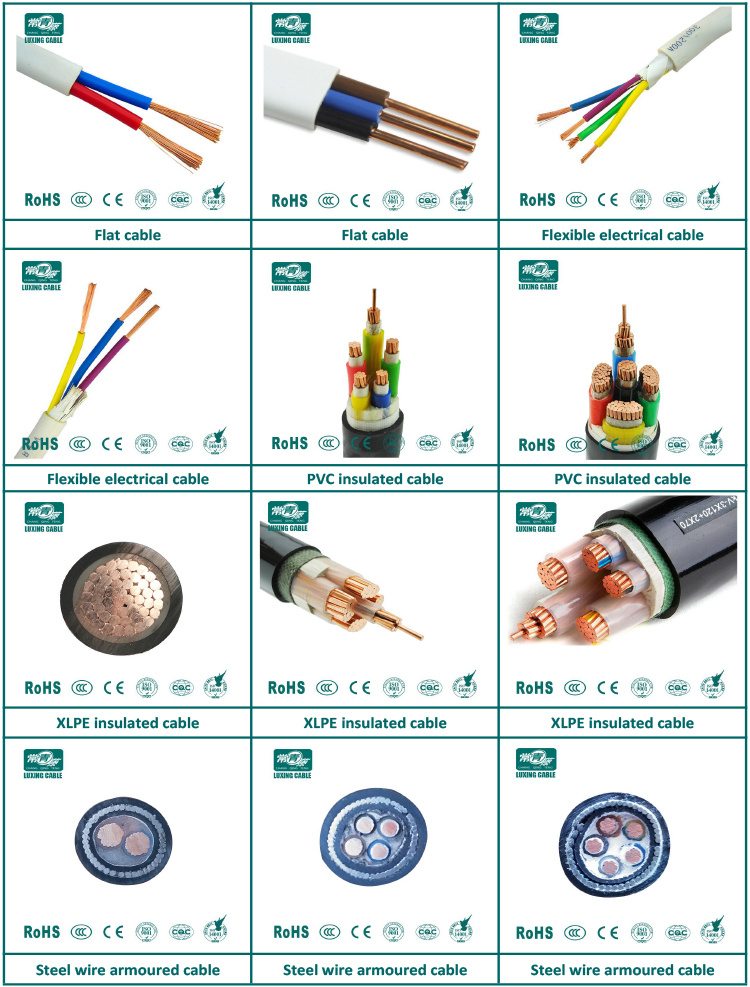

3)The Product of Luxing Cable Factory
-300/500V 450/750V electrical wire
-600/1000V PVC insulated cable
-600/1000V XLPE insulated cable
-1.8/3KV to 26/35KV power cable
-Armored underground cable
-Control cable and instrumentation cables
-ABC cable
-AAC conductor
-AAAC conductor
-ACSR conductor
-OPGW
-Rubber cable
4)Product application
-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.
-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.
5)Production Market
-Supply power cables & electrical wire to
South America(Brazil...),
East Asia(Korea...),
Africa(Uganda, South Africa, Zimbabwe...),
Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),
Europe(Czech Republic...) to global market.
-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.
6)Our service
-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.
-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
