| Prod Model: |
video optical receiver |
| Item Name: |
Video Optical Converter |
| Format: |
Analog |
| Resolution: |
960p/1080? |
| CH Qty: |
1,2,4,8,16,32 |
| Interface: |
BNC to Fiber |
| Mode Type: |
Single Mode |
| Reach Distance: |
20,40,60 Km |
| Data: |
RS485 |
| Customzied: |
Available |
| Type: |
Fiber Transceiver |
| Wiring Devices: |
Integrated Wiring |
| Certification: |
GS |
| Condition: |
New |
Product Description

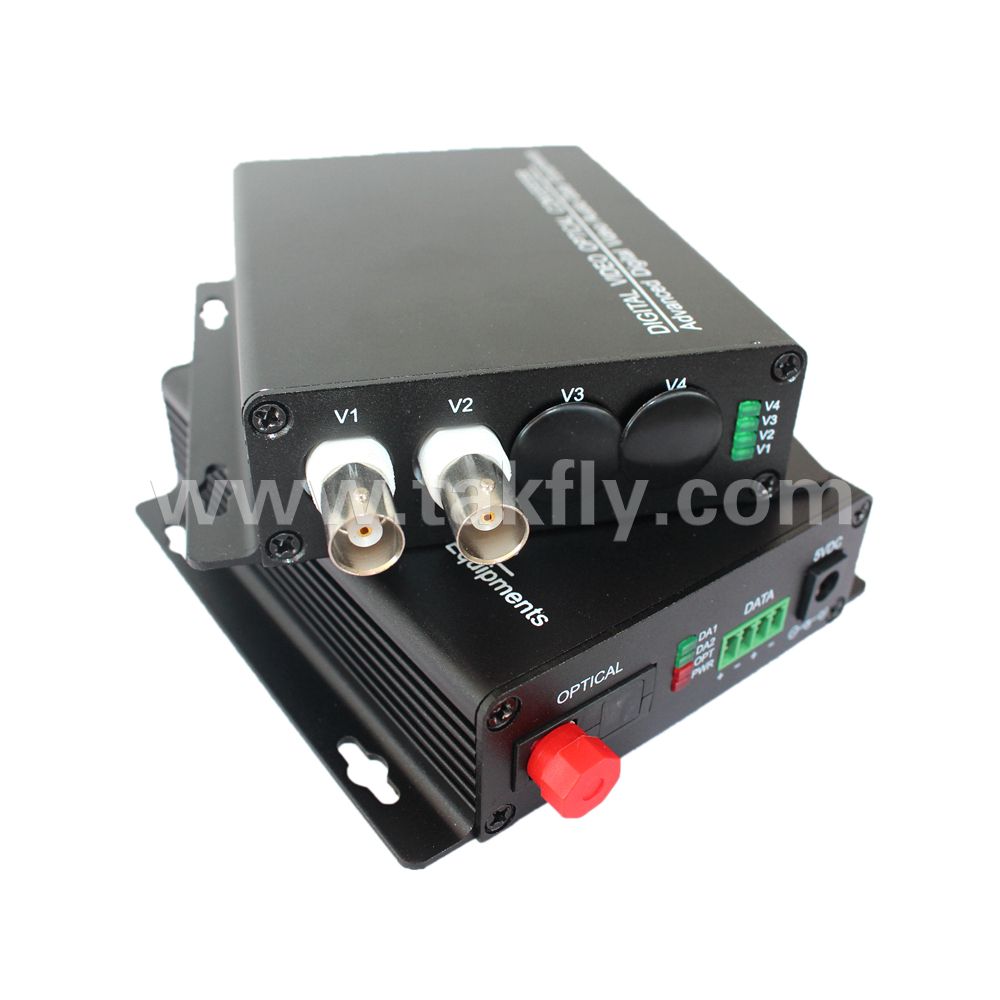

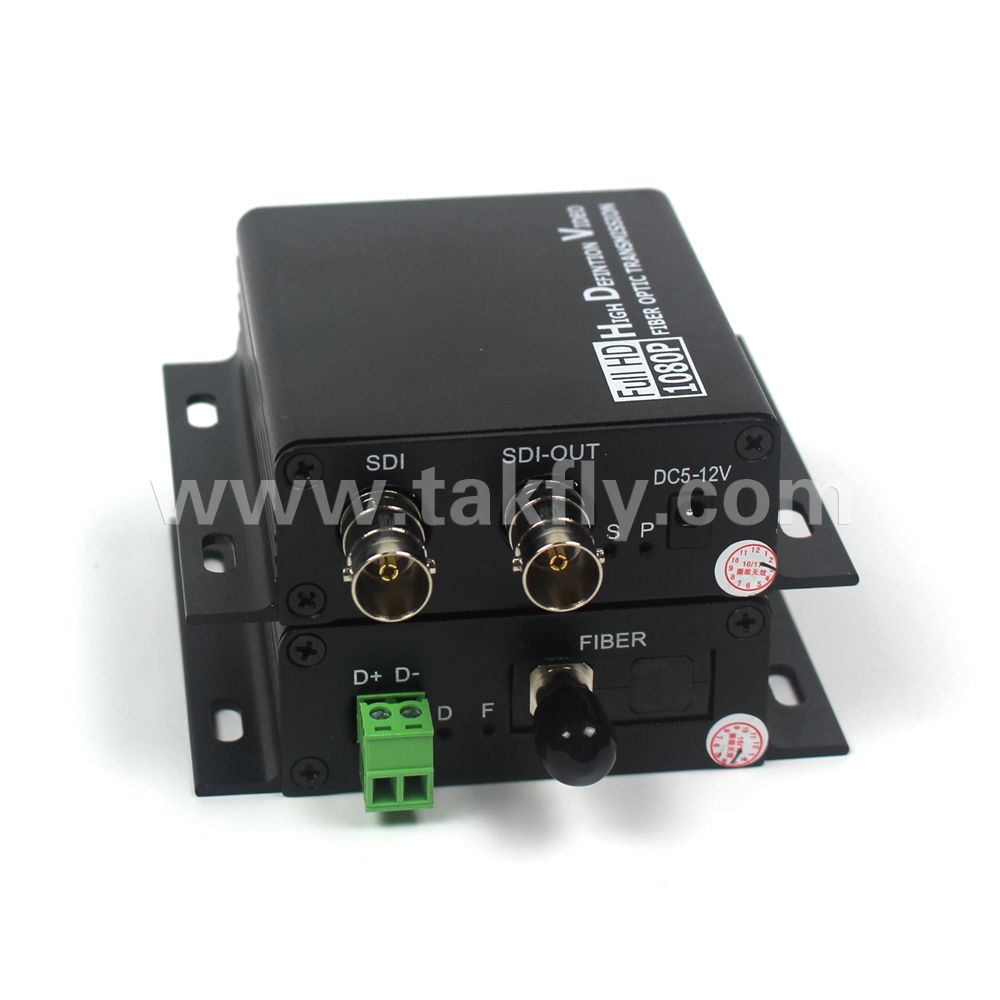

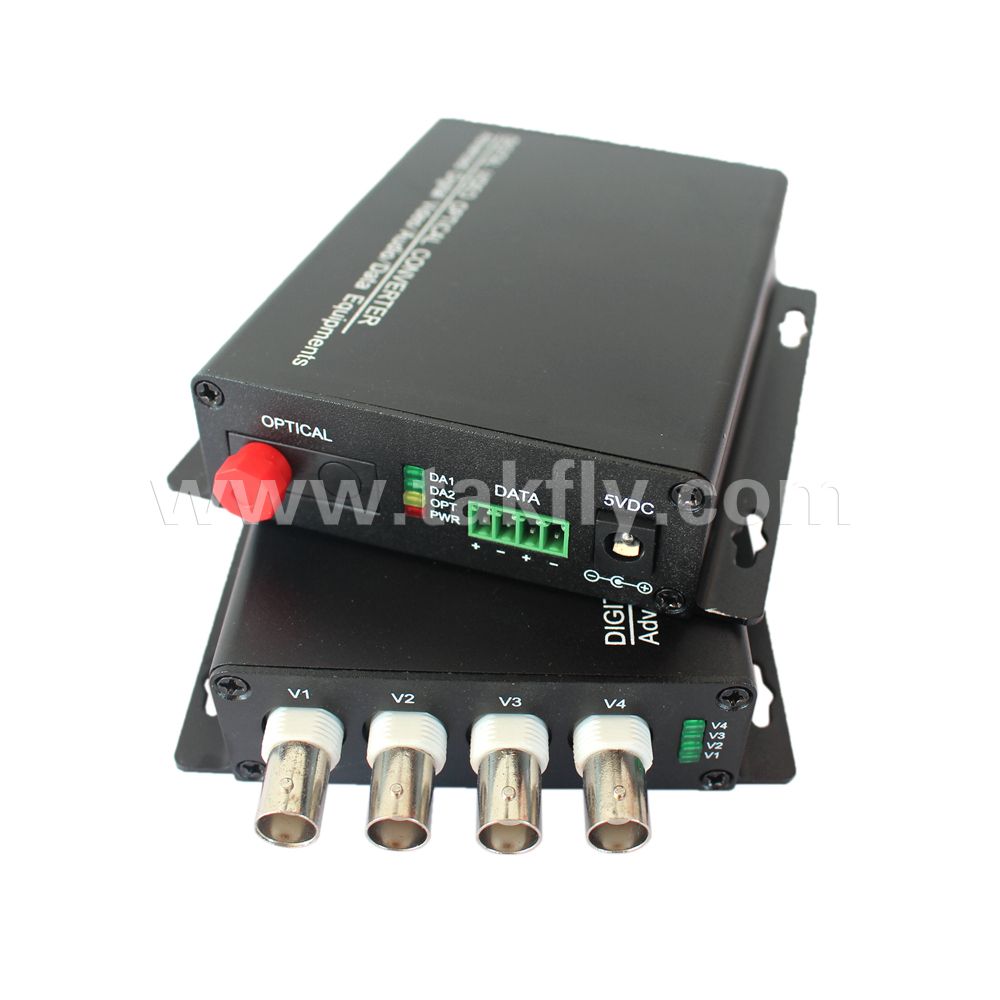

2 CH 960P 1080P Optical Digital Transmitter Video transceiverFiber optical video receiver is designed for long-distance fiber transmission of HDCVI HD compound video, adopt the compressed digital photoelectric conversion technology by their research and development, use fiber to transfer Millions of pixel HD video by dot to dot, and realize video transmission without delay and with high reliability. Single fiber can transfer 1-32 CH HDCVI HD compound video at the same time.
DescriptionVideo transceiver Product characteristics
Advanced lightning protection design,support 5.7KV lightning protection;
Industrial design, SMT technology;
Digital optical fiber transmissionplatform, multi service platform with flexible configuration;
Provide desktop plug-in frame,concentrated in 2 ways;
Independent intellectualproperty rights of large scale integrated circuit core;
Single fiber transmission,Optional 20KM, 40KM, 60KM, 80KM, 100KM, 120KM longdistance transmission.
Support 30 million standard video and1280X720P/30Hz and1280PX960P/30Hz and 1280X 720P/50Hz and 1920X1080P/30HZ resolution pixel camera, analog coaxial HDvideo, studio grade transmission quality.
Uncompressed video transmission real-time transmission, to guarantee the best effect;
Technical Parameter | Video parameters | Video input and output impedance | 75Ω(non-equilibrium) |
| Standard video input / output voltage | 1.0Vp-p Type |
| Support camera pixels | 30million,100million,130million,200 million |
| Video pixel | Standard clear video
1280(H)* 720(V)/30Hz
1280(H)* 720(V)/50Hz
1280(H)* 960(V)/30Hz
1920(H)* 1080(V)/30Hz |
| Differential gain(10%-90% APL) | <±1% Type |
Differential phase
(10%-90% APL) | <±1% Type |
| Signal to noise ratio | >60dB(8Bit) |
| Channel physical interface | BNC |
| optical parameters | wavelength | 1310nm&1470nm-1610nm |
| Fiber type | 50/125umultimode,62.5/125umultimode,9/125usingle mode |
| optical output power | -3~-9dBm |
| Receiver sensitivity | -26dBm |
| Optical Connectors | FC,ST,SC |
| General parameters | Working power supply | 110V~240V AC adaptive |
| Operation Humidity | 0~95% |
| working temperature | -0~60 |
| storage temperature | -40~85 |
Ordering Information| Product | Description | Company | Product model |
| 2 Ch Video transceiver | 1ChVideo, support 720P,960P,1080p, support HD-AHD,HD-CVI,HD-TVI | pair | DF-2V-1080P |
| 2 Ch Video 1Ch Reverse Data Video transceiver | 1ChVideo, support 720P,960P,1080p, support HD-AHD,HD-CVI,HD-TVI ,support 1Ch Reverse Data | pair | DF-2V1D-1080P |
Why choose Takfly? 1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within a week
2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before delivery
3.Competitve price.As a factory,costs are controllable
4.Flexible payment term.T/T,L/C,paypal is availble
5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc
6.Complete product range, products cover fiber optic cable,Fiber optic adapter,attenuators,full total FTTH solution.
Any query about this Video transceiver,please leave me an inquiry or contact me directly.
