| Prod Model: |
I-tech 18000 |
| Amplifier Type: |
Digital Power Amplifier Class D |
| Frequency Response: |
20Hz-20kHz |
| Power Handling: |
3600watts |
| Sensitivity(1W/1m): |
0.775V |
| Channels Number: |
2 |
| Power Voltage: |
AC220V or AC110V |
| Power Plug: |
European, American, Asia or Customise |
| Warranty: |
3 Years |
| Safe Protection 1: |
DC Protection |
| Safe Protection 2: |
Short Circuit Protection |
| Type: |
Professional Amplifier |
| Usage: |
Professional Preformance |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Function: |
Digital Power Amplifier |
| Output Number: |
2 |
| Sound Channel: |
2 |
Product Description

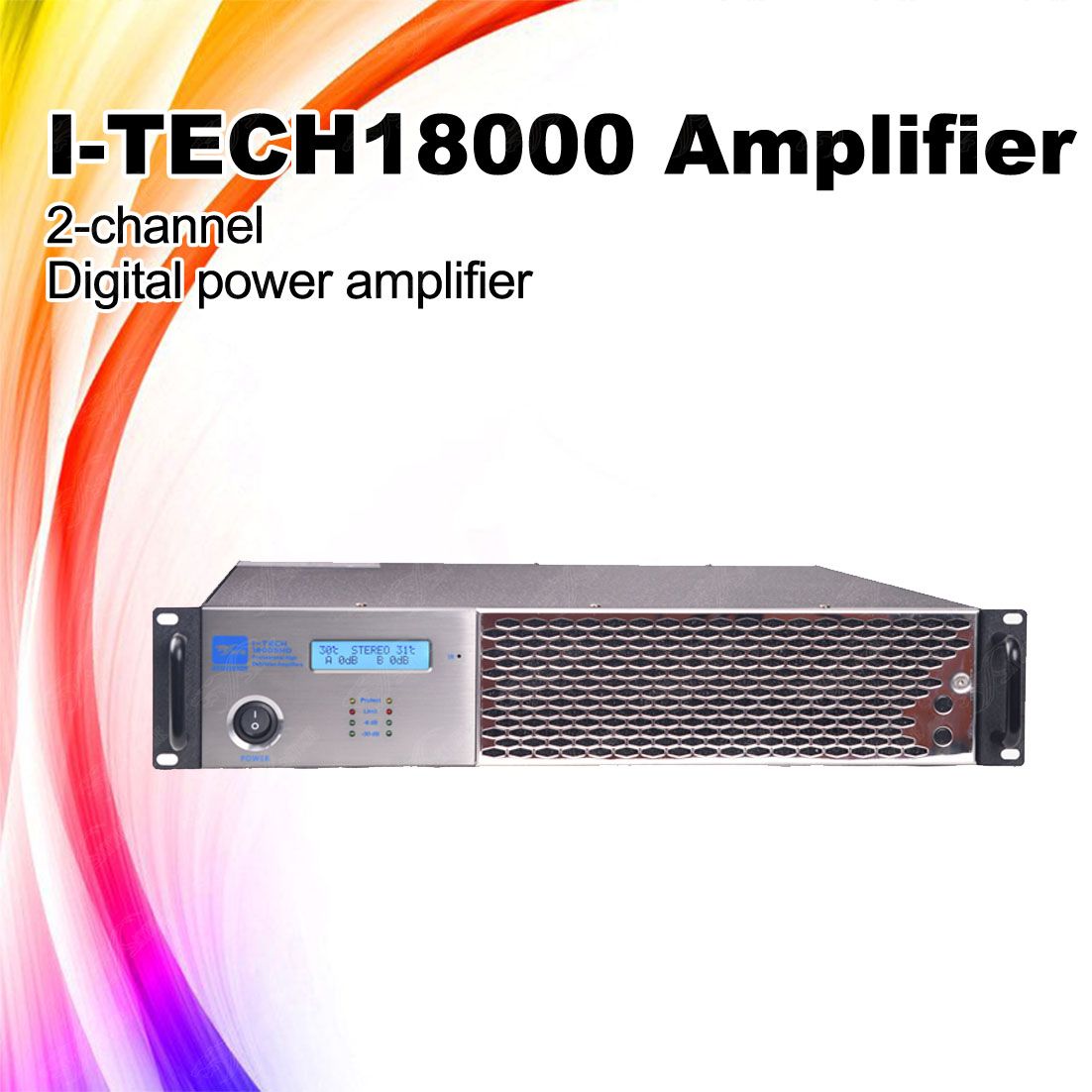

2 Channels 1800W Each I-Tech18000 Class HD dj Power Amplifier Price from China
Are you interested in making more money and saving more money?
Skytone Audio will not let you down. Skytone audio is one of the white hair of speaker audio business in China. We have our own factory with many designs of speaker audio equipments.
With us your business in safe, your money in safe.
Quality is our culture.We can offer you:
1. Competitive advantage products
2. Confidentiality agreement
3. Factory price
4. Quality assurance
5. After-sales service 24*7Power amplifier
Amplifier power
Professional power amplifier

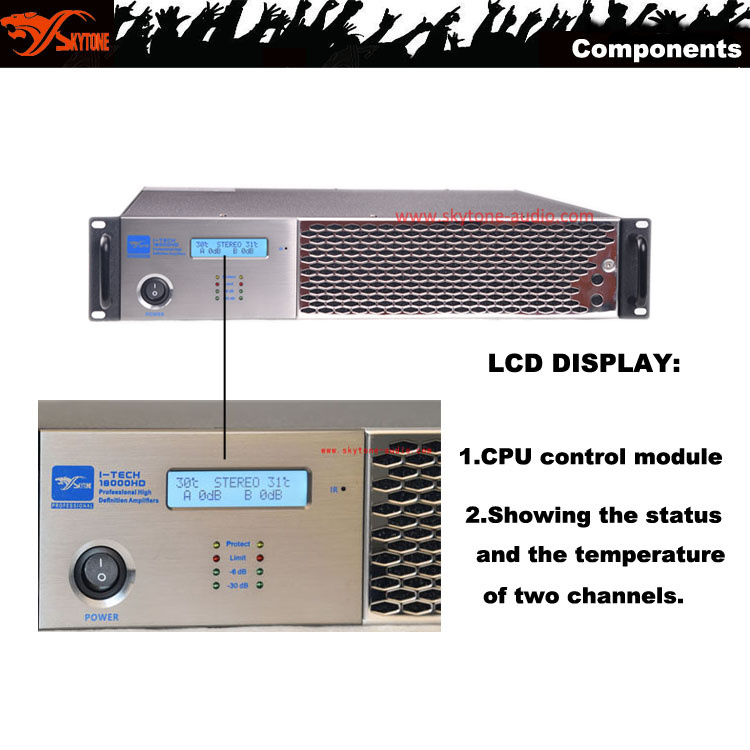

Class H professional audio amplifierOverview of I-TECH 18000 class HD DJ power amplifier:This series amplifier is the new designed amplifier of Skytone audio, it's switch mode power supply digital ammplifier, lightweight with high performance, more efficient than transformer power amplifier. It adopts many imported transistors and large volume capacitors which make the I-TECH series popular. Features of I-TECH18000 audio amplifer:1. LCD display: Can help you to check the amplifier temperature and how long time used.

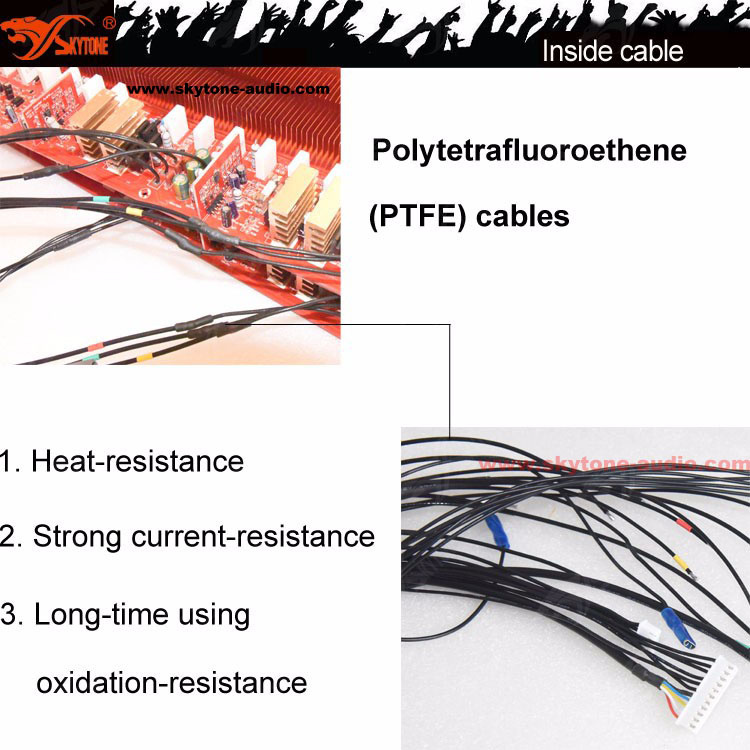

2. Cables: Using Polytetrafluoroethene(PTFE) cables, high temperature, resistance heavy current, Non- Oxidation for long time using.
3.Using Advanced Welding Procedure,preventing oxidation and poor connect, fuse for preventing DC overload
4.JICON large volume capacitor from listed state-owned enterprise, wide frequency
5.Powerful in low frequency, the delicate mid-high frequency highlights the appealing wide-range of frequency
6.Intelligent fans: dust-removing while powered on, the fans smoothly start working when temperature reaching 40 degrees , / silent mode at normal times to prolong the service life.
I-TECH Series has two big function:
1. Audio processing:
A. Adopt LCR0202 linear optical coupling: Pure resistance materials, nonpolar output; Input and output isolation, low distortion coupling.
B. Adopt Original ON Semi MJD340G & MJD350G high-class special-used triode transistor.
C. Adopt 2pcs pure copper , high-power output inductor: ensure the output dynamic.
D. Adopt high-class France Thomson feedback capacitor: fire-proof, low loss, high temperature resistant and wet resistance are good, stable capacitance, so I - TECH will be more stable.
2. Circuit protecting:
A.JICON large volume capacitor: Flitering and frequency selective function.

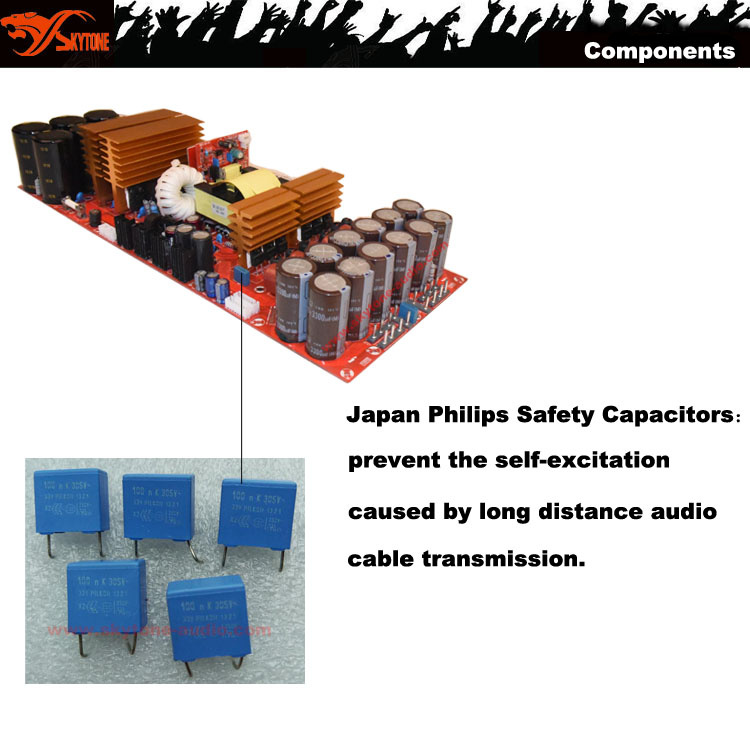

B. Philips safety capacitor: prevent the self-excitation caused by long distance audio cable transmission.
C. China best output relay: Compact with high contact rating, high switching capability, high sensitivity and high breakdown voltage.D. Adopt pure copper cables with PTFE Insulationofacable with heat-resistance, strong current-resistance, Long-time oxidation-resistance function.

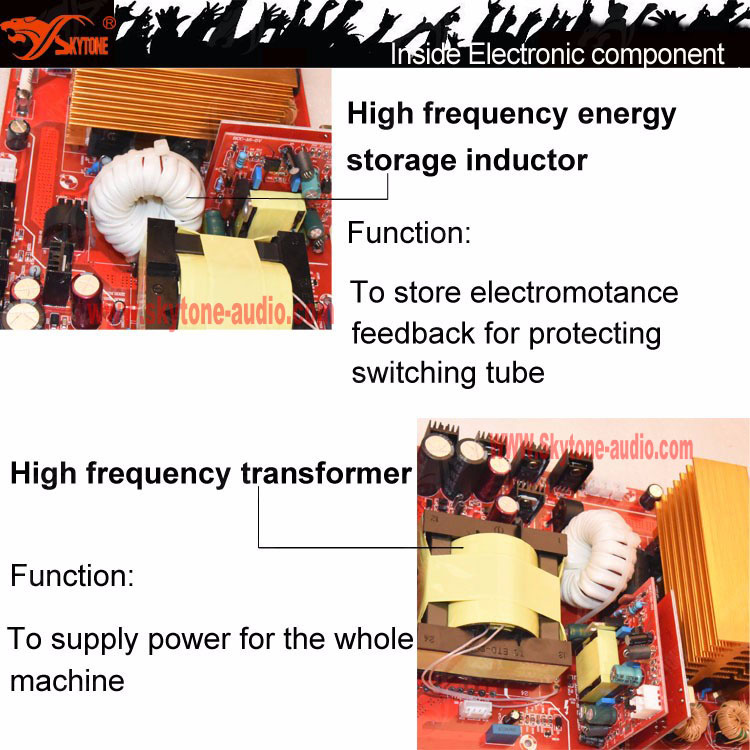

E. High frequency energy storage to store electromotance feedback for protecting and High frequency transformer to supply power for whole machine.
Specification of I-TECH 18000 power amplifier:| Technical Specification | I-Tech18000HD |
| Rated power(20Hz-20KHz) | 2 ohms Stereo Dual | 8640 |
| 4 ohms Stereo Dual | 7200 |
| 8 ohms Stereo Dual | 3600 |
| safe protection | Dc protection | √ |
| Short circuit protection | √ |
| Overheat Protection | √ |
| Input Overload Protection | √ |
| Output Overload Protection | √ |
| Frequency Response(1W 8ohms) | 20Hz-20KHz(±3dB) |
| Sensitivity(8ohms 1KHz) | 0.775V |
| Installation space | 2U |
| Cooling system | intelligent system,automatic adjustment according to changing
temperature |
| Size(WXHXD) | 46cm X 48.5cm X9.5cm |
| Net Weight | 14kg |
| After-sales service | 3 years Warranty (non-artificial Damage) |

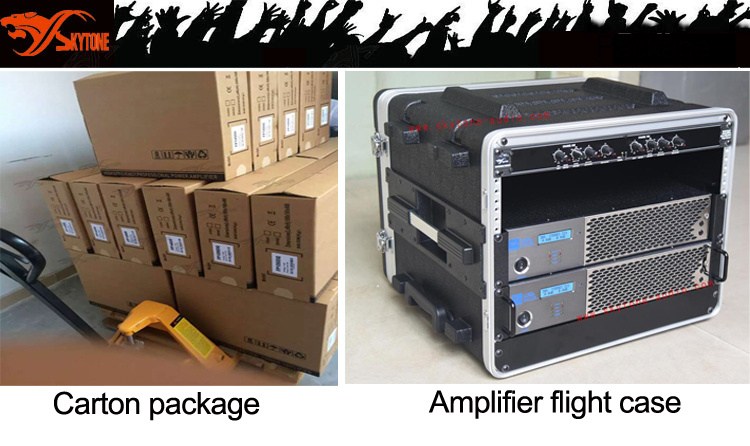

Package of I-TECH18000 power amplifier:1. I-TECH18000 packed in carton case, putting foam to prevent damage from delivery.
2. I-TECH18000 packed in flight case, durable and easy to move.
Shipping of I-TECH18000 power amplifier:3 shipping ways are available depending on customers needs.
# Ship by air cargo to customer's nearest airport.
#Ship by courier (door to door), such as TNT,DHL,UPS,FEDEX and so on.
#Ship by sea to your nearest port.Hope fully to become yours trustworthy company in China.
Any question feel free to contact us.
You can also choose items from www.skytone-audio.com
Important Notification:Skytone Audio will display speakers and amplifiers at Dubai PROlight+sound exhibition.
Date: 17-19 October, 2017.
Address: Dubai International Convention and Exhibition Centre,
P.O. Box 9292, Dubai, United Arab Emirates
Booth No.: Hall 4, B34.
Note: We have UAE general agent in Sharjah.
