| Model: |
HD1500 |
| Power Handling: |
1500W X2 |
| Frequency Range: |
20Hz-20kHz |
| Sensitivity: |
0.775V |
| Installation: |
2u Space |
| Net Weight: |
11.1kg |
| Power Cord: |
European, American Ect |
| Type: |
Professional Amplifier |
| Usage: |
Professional Performance |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Class HD Digital Amplifier |
| Sound Channel: |
2 |
| Output Number: |
2 |
| Voltage: |
AC 100-120V or AC220-240V |
| Conductive Mode: |
HD |
Product Description
With us your money in safe, your business in safe.
Quality is our culture.
7*24 service
HD1500 audio system professional 1500W RMS amplifier sound

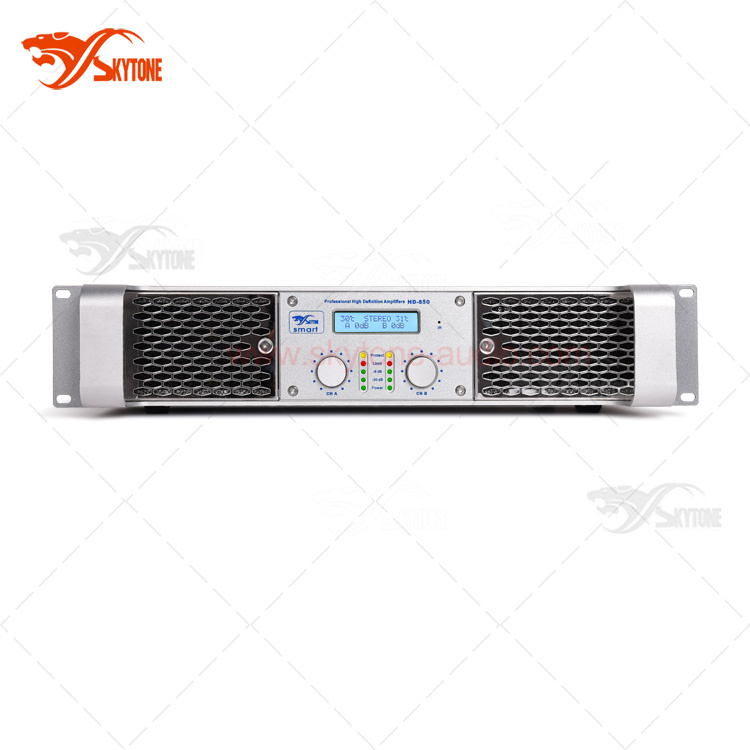

Skytone HD1500 power amplifier

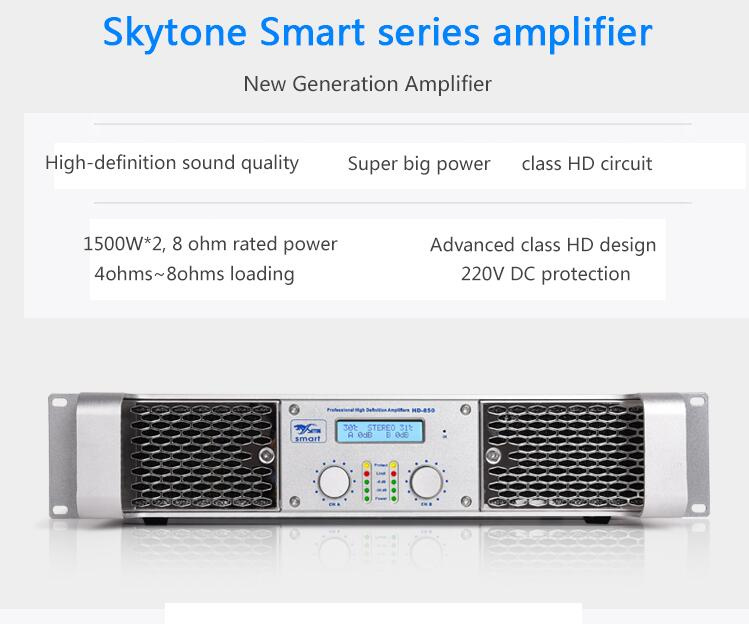

New Generation Amplifier
--------------------------------------------------------------------------------------------------------
Super big power Class HD circuit High-definition sound quality
--------------------------------------------------------------------------------------------------------

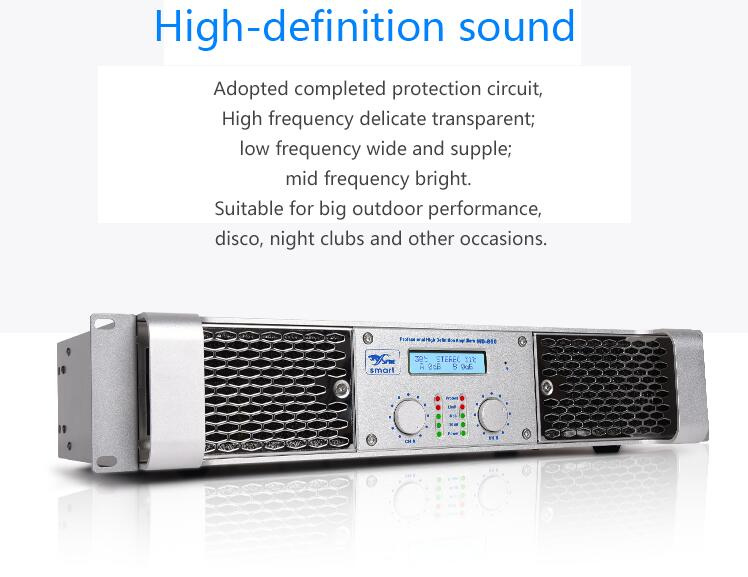

High-definition sound professional power amplifier1. Adopted completed protection circuit,
2. High frequency delicate transparent;
3. Low frequency wide and supple;
4. Mid frequency bright.
5. Suitable for big outdoor performance, disco, night clubs and other occasions.

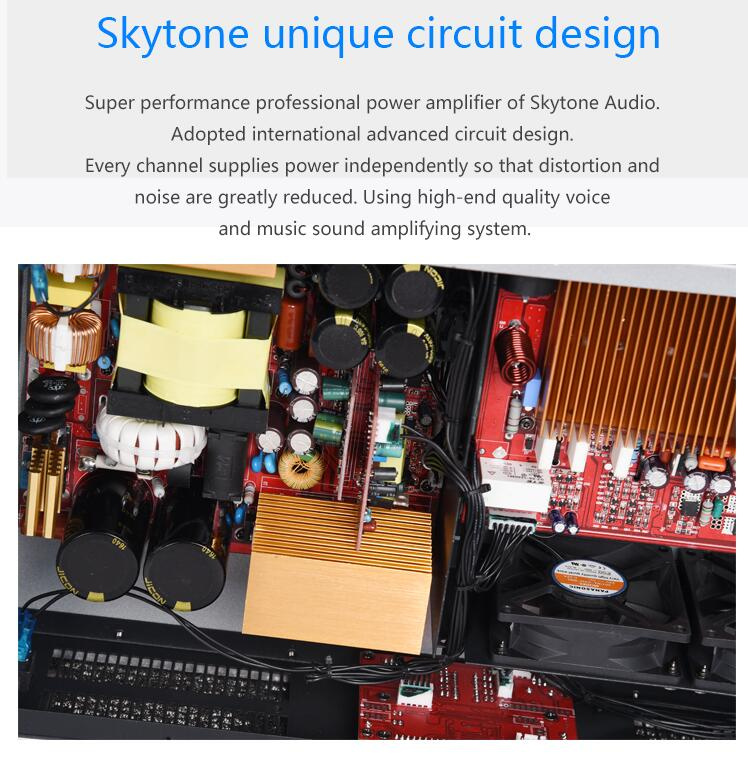

Product feature1. Unique class HD circuit, clear high frequency , bright middle frequency and dynamic bass
2. Sensitivity multiple selection, matching different pre-level.
3. Multiple protections: not burn the speaker, can control by turning on/off from rear panel.
4. Adopt professional input and output connector, all inputs are processed by a balanced circuit, and the impact of the connection line on the sound quality is minimal.
5. Mini size chassis, simple outlook panel and light weight
6. High efficiency, long-term stability and superior sound quality
7. Full-function protections: DC protection, short circuit protection, input/output overload protection, safe protection system.A new generation power amplifier with stability High efficiency and long-term stability and superior sound quality.
Two balanced XLR input, two balanced XLR output, adopted professional NL4 Speakon and banana connectors, 10 LED indicator, showing the channel gain, clipping, power supply and fault conditions respectively.Hi-Fi enjoy the sounds of nature Adopted high-end multimedia chips, crisp sound quality

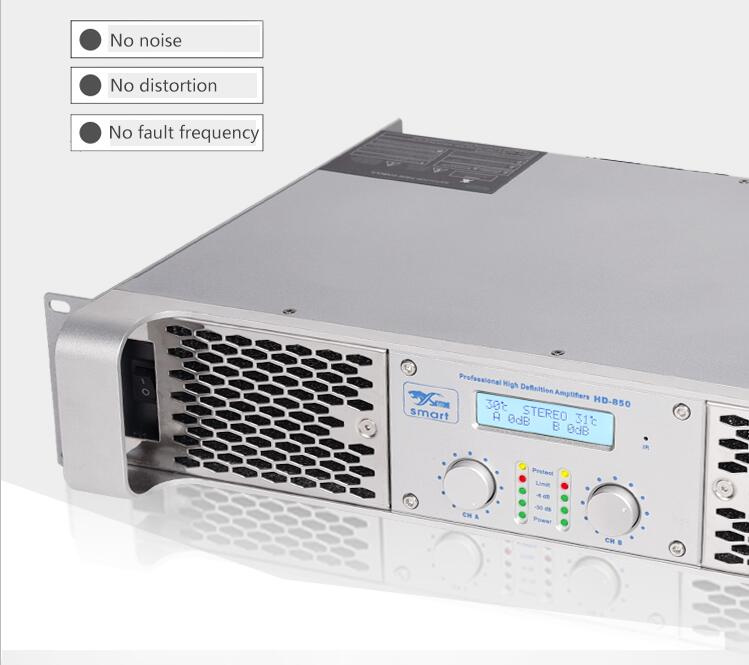

No noise
No distortion
No fault frequency
Embodiment of power and beauty
Comprehensive protection circuit ;
Adopted class HD amplifier circuit;
The power usage up to 90%;
4ohms or 8ohms loading;
Popular amplifier to match high power speaker.
Specifications:
| Technical Specification | HD1500 |
| POWER(peak ) | 2 ohms Stereo | 10800 |
|
| 4 ohms Stereo | 5400 |
| 8 ohms Stereo | 2700 |
Rated power
(20Hz-20KHz) | 2 ohms Stereo | 6000 |
|
| 4 ohms Stereo | 3000 |
| 8 ohms Stereo | 1500 |
| safe protection | Dc protection | √ |
| Short circuit protection | √ |
Sensitivity overheating
management system | √ |
| Overheat Protection | √ |
| Input Overload Protection | √ |
| Output Overload Protection | √ |
| Soft start protection | √ |
| Limiting protection | √ |
| Output Overload Protection | √ |
| Frequency Response(1W 8ohms) | 20Hz-20KHz(±3dB) |
| Sensitivity(8ohms 1KHz) | 0.775v |
| Link | Input link | XLR |
| Output link | SPEAKON |
| Damping Factor (1KHz&8ohms) | 500 |
| Conversion rate | ≥25V/µs |
| Output circuit type | Class HD |
| Installation space | 2U |
| Cooling system | intelligent system,automatic adjustment
according to changing temperature |
| Size(WXHXD) | 482×88×495mm |
| Net Weight | 11.1kg |
| After-sales service | 3 years Warranty (non-artificial Damage) |
Applications:
Certificates:
EMC+LVD+ROHS
