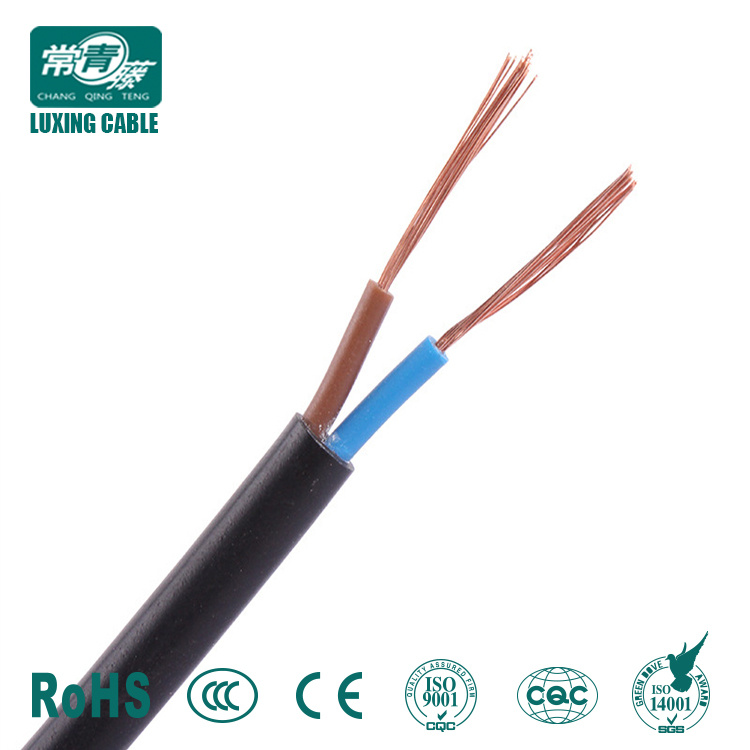

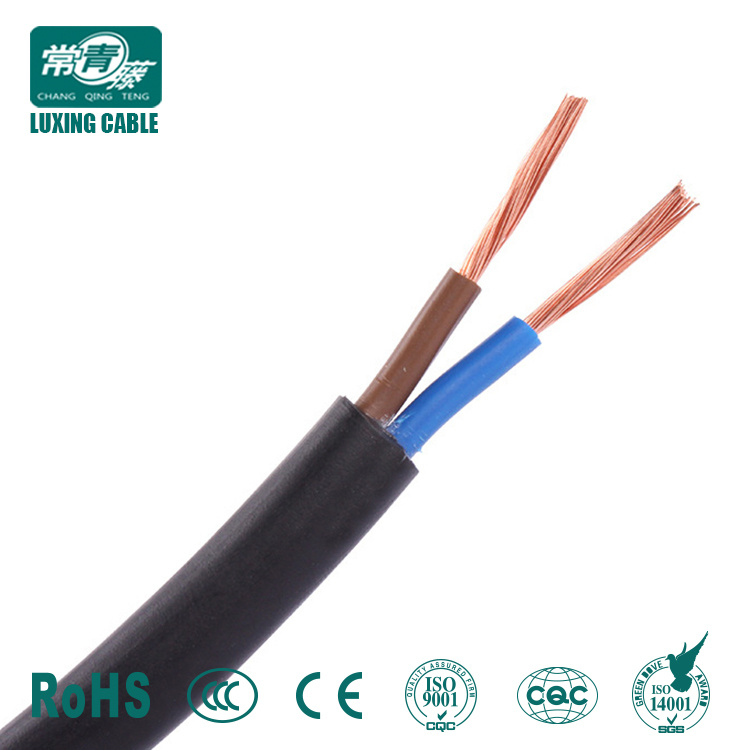

2 Core 2.5 Sq mm Cable/2.5mm Electric Cable/2.5mm Wire Cable

Name: 2 Core 2.5 Sq mm Cable/2.5mm Electric Cable/2.5mm Wire Cable
Brand: all-electronics-online.com
SKU: 836461465
Availability: InStock
Rating: 4.7 (109 reviews)

Price:	US $ 0.8/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	VV, RVV, KVV, YJV.
Product Name:	2 Core 2.5 Sq mm Cable/2.5mm Electric Cable/2.5mm
Number Of Cores:	Single/2/3/4/5/6/7/8/10/16 Core...
Rated Voltage:	0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10(15)Kv,12/
Cross Section Area/Measure:	3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4
Standard:	IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 5023-
Conductor:	Stranded/Solid/Flexible Copper/Aluminum Conductor
Insulation:	XLPE/PVC/PE/Pur
Aplication:	Electric, House Wire, Building Wire...
Shield:	Copper Wire Screen(Cws), Aluminium Wire Screen(Aws
Armoured:	Steel Tape Armoured (Sta) or Steel Wire Armoured (
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	VDE
Model:	VV,Yjv...
Brand:	Chang Qing Teng

Product Description

Specification:

• Sample free • 100% pure copper • 100% virgin cable compound

• Fast delivery time • Reasonable price • More than 20 years experience

Application and Standard:

(1)The flex PVC insulated electrical cable can be produced and provided according to standard IEC60227,BS6004,BS6005.

(2)The flex PVC insulated electrical cable belong to the series of laying wires,which are mainly suitable for laying at the fixed places.
They are widesly used as connectors of driving,lighting,electric equipments,instrument and telecommunication equipments with rated
voltage to 450/750V.Part of the plastic wires are used at the equipment with AC rated voltage upto 300/500V.

Working condition:

(1)The flex PVC insulated electrical cable working temperature is different according to different insulation materials, mainly 70 and 90
degrees temperature, etc.

(2)Enviroment temperature of laying should be not less than 0ºC

(3)Rated voltage U0/U is 450/750V,300/300V,300/350V

Category:

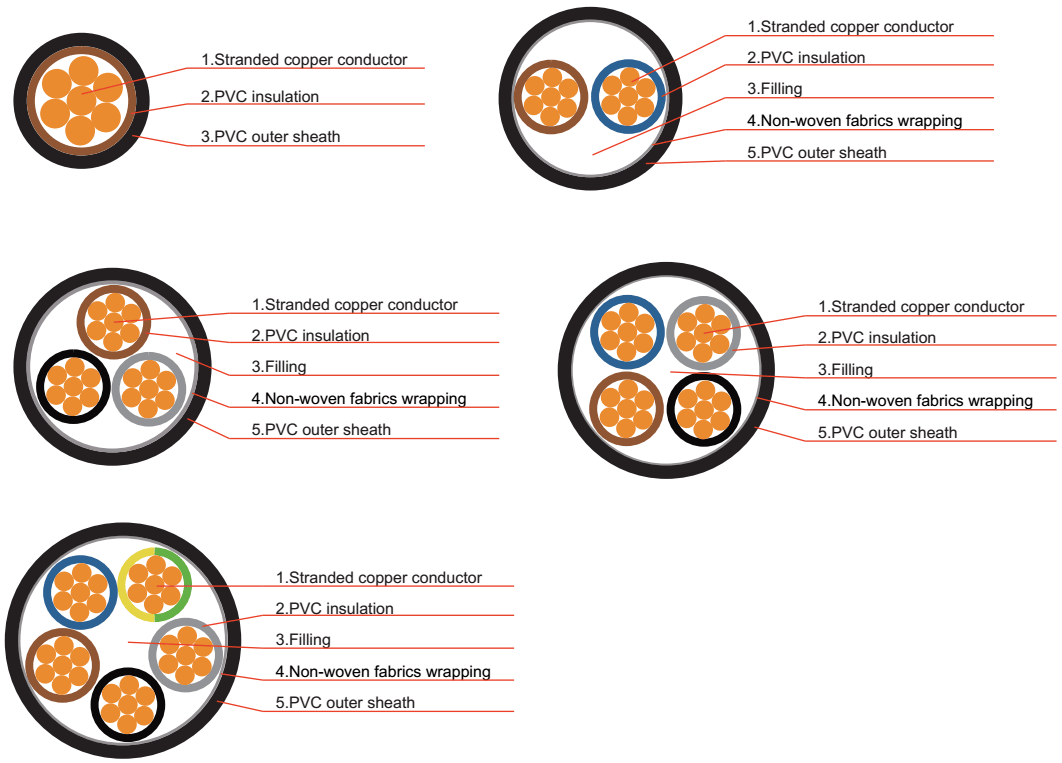

(1)According to the conductor type, including solid conductor PVC insulated electrical wire cable, standed PVC insulated wire cable,
Flexible PVC insulated wire cable with different colors.

(2)According to its shape, including flat wire cable, round wire cable, etc. with different colors.

(3)Accoding to its core number, including single core wire cable, multi-core wires cables , etc. with different colors.

Type	Name
60227IEC01(BV)	cable with hard single conductor,without sheath for general purpose
60227IEC02(RV)	cable with soft single conductor,without sheath for general purpose
60227IEC05(BV)	cable with solid single conductor,without sheath at 70ºC of conductor temperature for interior wiring
60227IEC06(RV)	cable with soft single conductor ,without sheath at 70ºC of conductor temperature for interior wiring
60227IEC07(BV-90)	cable with solid single conductor ,without sheath at 90ºC of conductor temperature for interior wiring
60227IEC08(RV-90)	cable with soft single conductor ,without sheath at 90ºC of conductor temperature for interior wiring
60227IEC10(BVV)	light type with PVC sheath
60227IEC52(RVV)	light type soft wire with PVC sheath
	common soft wire with PVC sheath
	soft cable with oil-proof and shielding ,PVC sheath
60227IEC75(RVVY)	soft cable with oil-proof and non-shielding ,PVC sheath
BV	wire with copper core,PVC insulation
BLV	wire with al core PVC sheath
BVR	soft wire with cu core,PVC insulation
BVV	round cable with al core,PVC insulation
BLVV	round type cable with copper core,PVC insulation
BVVB	flat type cable with cu core,PVC insulation
BLVVB	flat type cable with al core,PVC insulation
RVS	soft wire with cu core,PVC insulation,stranding and connection
RVB	soft wire with PVC insulation,flat without sheath
RVV	soft cable with PVC insulation and PVC sheath
RVP	soft wire with cu core,PVC insulation and shielding
RVP-90	soft wire with cu core heating-resisting 90ºC,PVC insulation and shielding
RVVP	soft cable with cu core,PVC insulation and shielding,PVC sheath

Contact:

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
