2 Core G657A Indoor Fiber Cable FTTH

Name: 2 Core G657A Indoor Fiber Cable FTTH
Brand: all-electronics-online.com
SKU: 756026855
Availability: InStock
Rating: 4.9 (84 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH drop cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	White or Black
Strengthen Material:	FRP or Steel Wire
Application:	Reach
Certification:	Reach
Type:	Single More or Multimode
Connection Structure:	Glass Fiber

Product Description

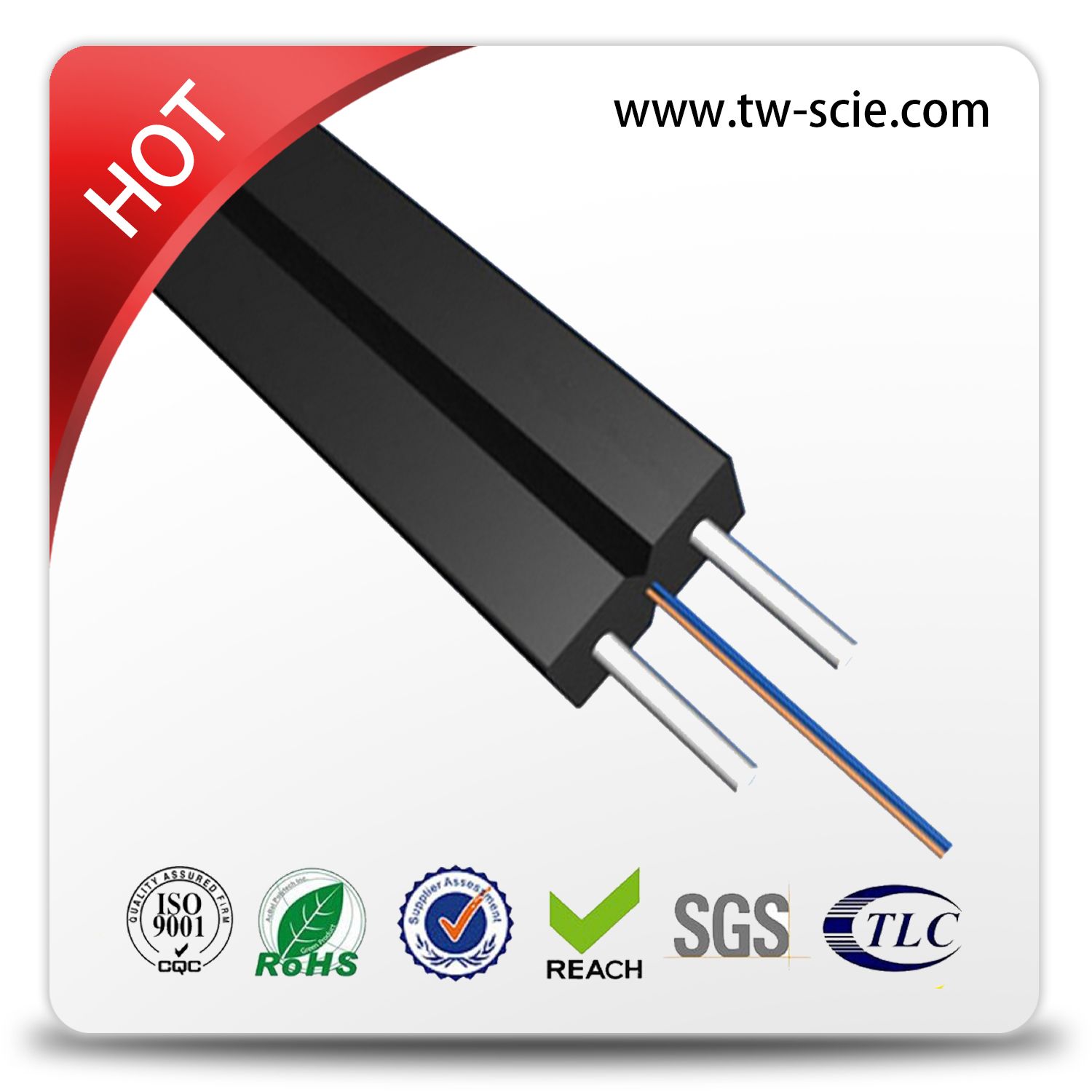

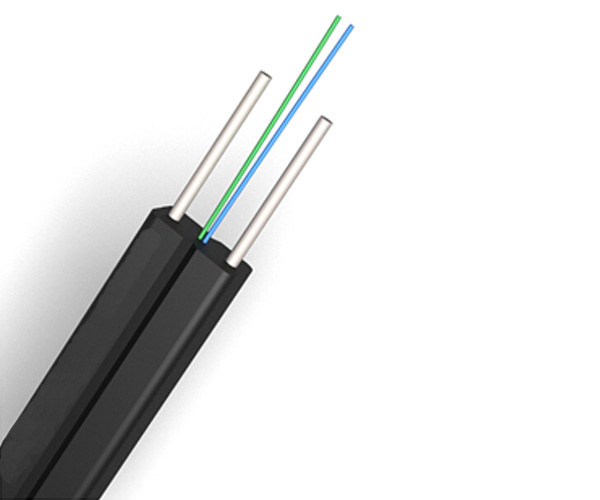

2 Core G657A Indoor Fiber Cable FTTH

Products' details:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meets the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

Characteristic:

1 Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2 Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

3 Single steel wire as the additional strength member ensure good performance of tensile strength.

4 Simple structure, light weight and high practicability.

5 Novel flute design, easily strip and splice, simplify the installation and maintenance.

6 Low smoke, zero halogen and flame retardant sheath.

7 Storage / Operating Temperature: -20° C~+60° C.

Parmeters:

Item	Technology parameter
Cable type	Cable type GJYXFCH-8B6.a2
Cable specification	6.2×2.5
Fiber color	Blue, orange, green, brown, gray, white, red, black
Fiber type	9/125 (G657A2)
Sheath color	Black
Sheath material	LSZH
Cable dimension mm	6.2(±0.2)*2.5(±0.2)
Cable weight Kg/km	28.0
Min. bending radius mm	120
Min. bending radius(rip off the messenger wire) mm	10(static) 25(dynamic)
Attenuation dB/km	< 0.4 at 1310nm, <0.3 at 1550nm
Short tension N	600
Short crush N/100mm	2200
Operation temperature °C	-20~+60
