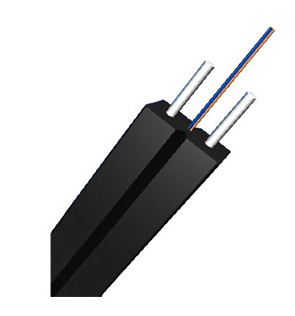

2 Core Gjxh FTTH Drop Optic Fiber Cable for Indoor

Name: 2 Core Gjxh FTTH Drop Optic Fiber Cable for Indoor
Brand: all-electronics-online.com
SKU: 790483565
Availability: InStock
Rating: 4.6 (109 reviews)

Price:	US $ 0.1-5/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJXH
Tensile Strength:	Over 500n
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CCC
Sheath Material:	LSZH

Product Description

FTTH indoor cables are used inside buildings or houses. In the center of the cable is the optical communication unit, with the two parallel non-metical enhanced FRP/Metal/KFRP as the strength member, and surrounded with the LSZH jacket.

Indoor use FTTH cables have the same function of the common indoor fiber cables, but it does have some special features. FTTH indoor cables are small diameter, water-resistant, soft and bendable, easy to deploy and maintenance. Special indoor FTTH cables will also meet the requirement of thunder-proof, anti-rodent or waterproof.

Item Details

Fiber Count: 2 Fibers
Fiber Type: Single-mode G657A (Default)
Strength Member: FRP

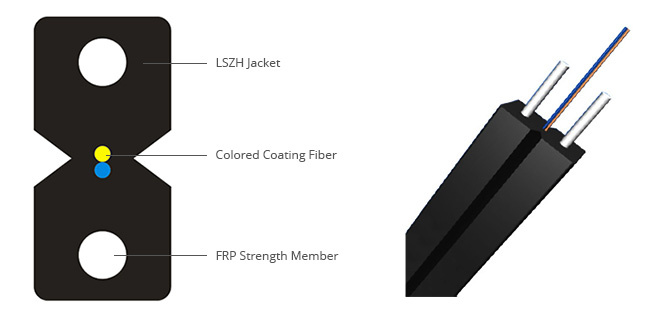

Cable Structure

Specifications

Cable Count	Cable Outer Size	Cabel Weight	Tensile Load		Crush Load		Bend Radius		Storage Temperature
	(mm)	(kg/km)	S(N)	L(N)	S(N)	L(N)	S(mm)	L(mm)	(ºC)
1	(2.0±0.2)×(3.0±0.2)	10.0	200	100	1000	300	20D	10D	-40°C~+85°C
2	(2.0±0.2)×(3.0±0.2)	10.0	200	100	1000	300	20D	10D	-40°C~+85°C
1	(2.0±0.2)×(3.0±0.2)	11.0	200	100	1000	300	20D	10D	-40°C~+85°C
2	(2.0±0.2)×(3.0±0.2)	12.0	200	100	1000	300	20D	10D	-40°C~+85°C

		G.652	50/125µm	62.5/125µm
Attenuation (+20°C) (dB/km)	@850nm		≤3.0	≤3.0
	@1300nm		≤1.0	≤1.0
	@1310nm	≤0.36
	@1550nm	≤0.22
Bandwidth (Class A) (MHz·km)	@850nm		≥600	≥200
Bandwidth (Class A) (MHz·km)	@1300nm		≥1200	≥600
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc (nm)		≤1260

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

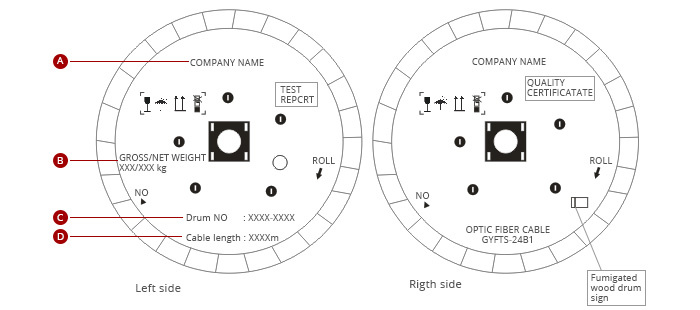

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX

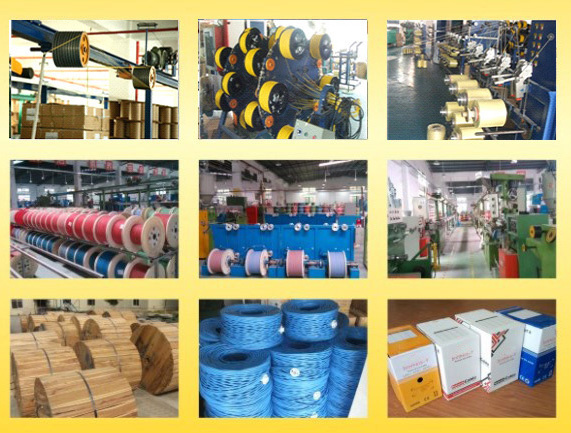

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.
